Rinnai Corporation RHFE-750ETRA 27
Final
Assembly

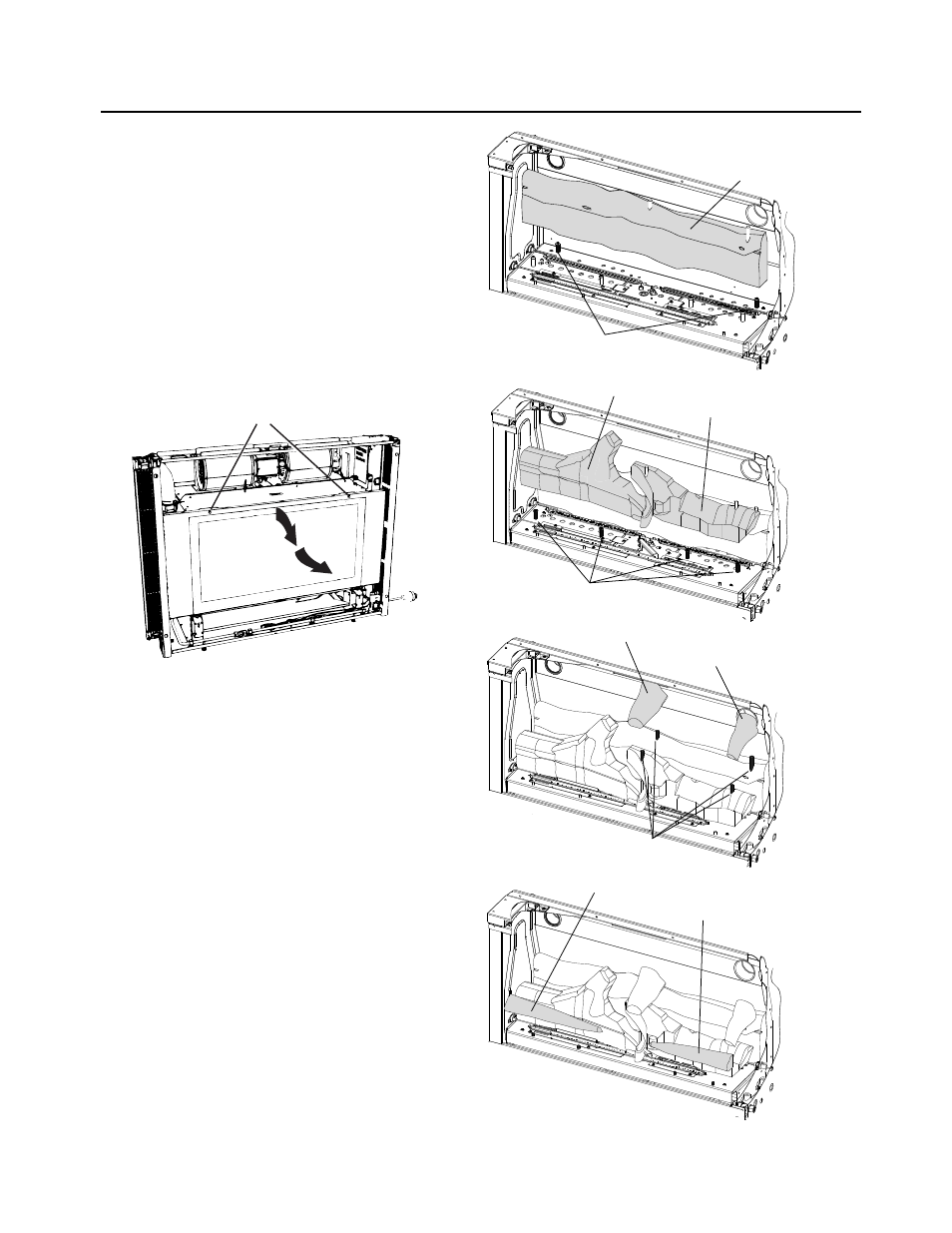

1. Remove the two retaining screws that secure the
combustion chamber glass panel.
2. Rotate and lift the combustion chamber glass clear
of the combustion chamber and place in a safe
location.
3. Seat the rear log into the combustion chamber
onto its location pins.
4. Seat the left hand middle log onto its location pins.
5. Seat the right hand middle log onto its location
pins.
6. Seat the center top log onto the location pins.
7. Seat the right hand top log onto the location pins.
8. Place the left hand front log and the right hand
front log on the pins.
9. Install the glass panel with two retainer screws at
the top of the panel.
Install the Logs
• rear
• left hand middle
• right hand middle
• center top • right hand top
• left hand front
• right hand front
The log set consists of seven pieces as follows:
J
retaining screws
Step 3
Steps
6 & 7
Step 8
left hand front
right hand front
rear
locating pins
Steps
4 & 5
left hand middle
right hand middle
locating pins
center top
locating pins
right hand top
