EZB-1SC Connections
Shielded 22/4 Cable
Wire Color Function
Red +12V
Black Ground
Green IR Signal
White Status
Bare Drain (Gnd)
Top View
EZB-1SC
Side View
Top View
EZB-1SC
CAT-5 CABLE
Wire Color Function
Brown +12V
Blue +12V
Orange IR Signal
Green Status
Orange/White Drain (Gnd)
Green/White
Drain (Gnd)
Brown/White Ground
Blue/White Ground

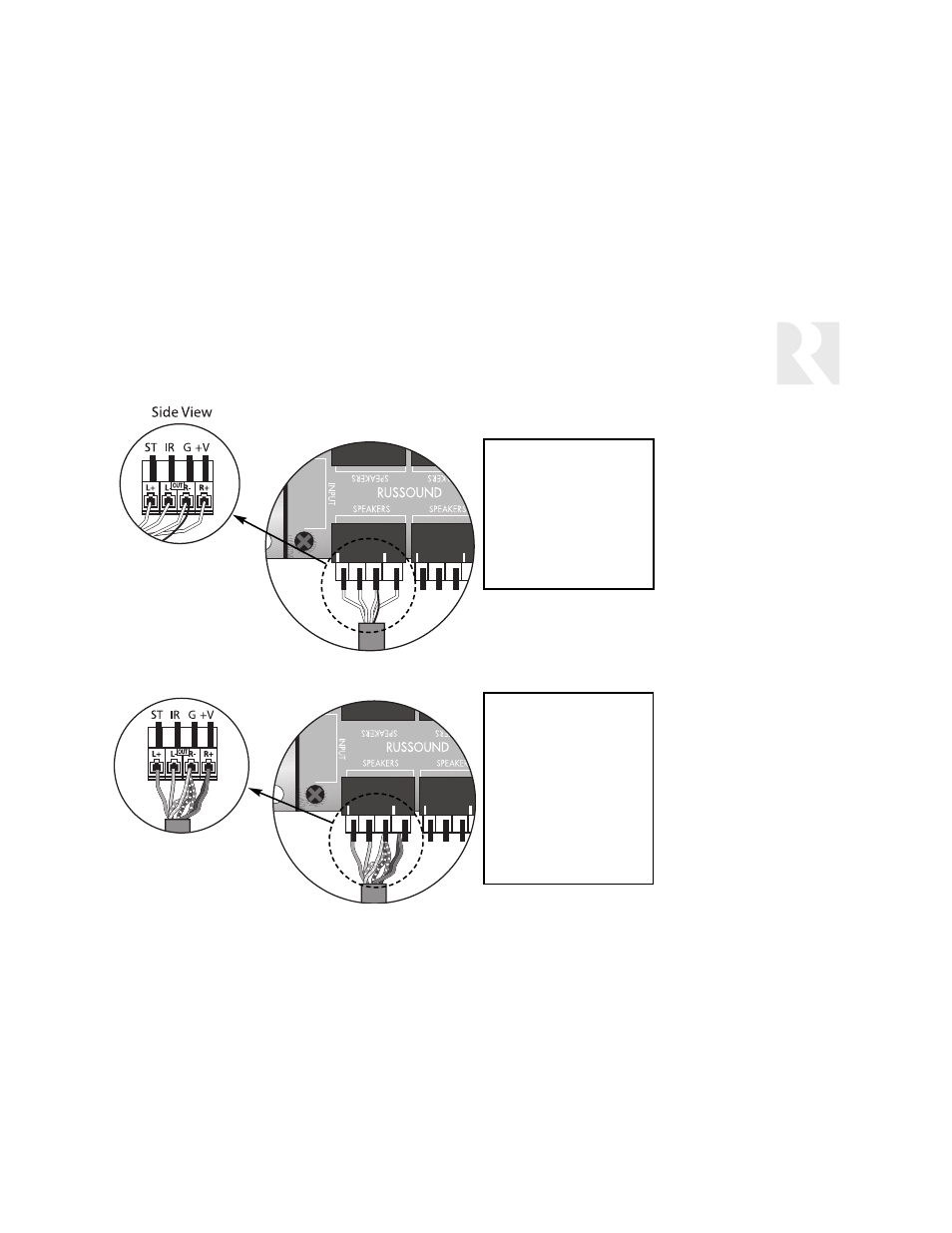

EZB-1SC Connection
Details
When using shielded 22/4
two-twisted-pair cable, use
one twisted pair for power
and ground, and the other
twisted pair for status and
IR signal. Always drain the
shield by connecting it or
the drain wire to the GND
terminal on the EZB con-
necting block.
Note: To ensure proper
operation, it’s important to
maintain similar wiring
schemes at all termination
points of the EZB-1SC.
When connecting CAT-5
cable to the EZB-1SC, use
the wiring chart to the left.
Shielded 22/4
Connection
to EZB-1SC Snap
Connector
CAT-5 Connection
to EZB-1SC Snap
Connector
