Page 9

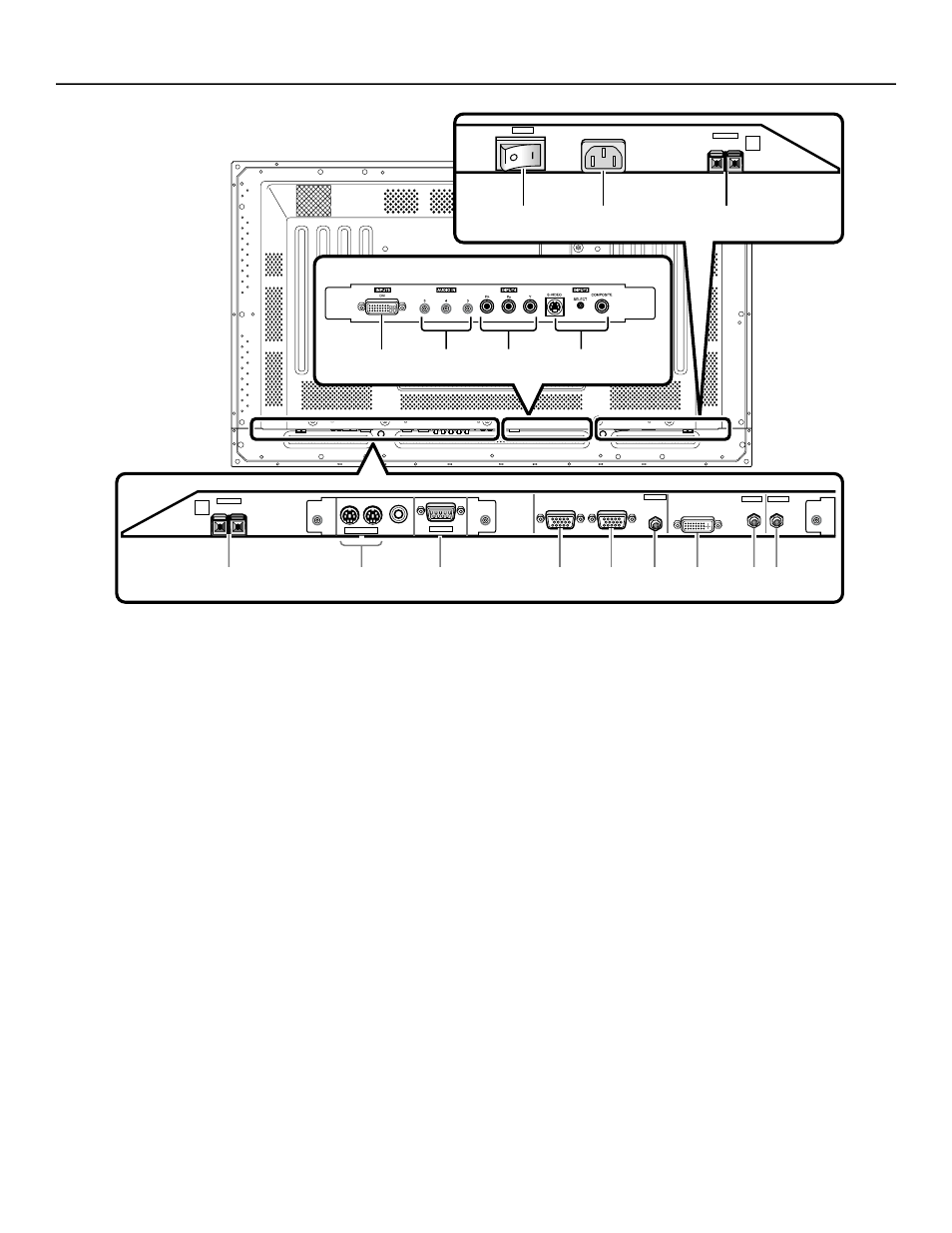

INPUTS AND CONTROLS

1 SPEAKER (R) terminal
For connection of an external right speaker. Connect a speaker whose impedance is 8 -16 Ω.

2 COMBINATION IN/OUT
Used when a number of sets are controlled collectively. Use a mini DIN 6 pin cable (straight, fully connected).

3 RS-232C
This is used for serial integration with automation systems.

4 ANALOG RGB IN (INPUT1) (mini D-sub 15 pin)
For connection of components that have RGB or component output jacks such as a personal computer,

DVD player, or external RGB decoder. (break out cable will be needed for BNC type connection)

5 ANALOG RGB OUT (INPUT1) (mini D-sub 15 pin)
Use the ANALOG RGB OUT (INPUT1) terminal to output the video signal to an external monitor or other

component.

NOTE: The video signal will not be output from the ANALOG RGB OUT (INPUT1) terminal when the main power

of this display is off or in standby mode.

6 AUDIO (INPUT1) (Stereo mini jack)
Use to obtain sound when INPUT1 is selected. Connect this jack to the audio output connector of the device connected

to the plasma display’s INPUT1.

�

��

�

��

�

��

�

��

�

��

�

��
