Operation Panel
1. Screen contrast knob
Adjusts the brightness of the screen.
2. Indicators
These indicators show errors or the status
of the machine. See P.103 “Troubleshoot-
ing”
3. {{{{User Tools/Counter}}}} key
Press this key to change the default set-
tings and operation conditions to match
your requirements. Also displays the to-
tal number of copies made. See P.123
“User Tools (Copier Features)”
4. Screen
Shows operation status, error messages,
and function menus. See P.8 “Panel
Screen”
5. {{{{Program}}}} key
Press to select the program mode. See
P.53 “Program”
6. {{{{Clear Modes/Energy Saver}}}} key
Clears the contents of a setting. Also, if
pressed for more than one second, the
machine is switched to Energy Saver
mode. See P.55 “Energy Saver Mode”
7. {{{{Interrupt}}}} key
Press to make interrupt copies during a
copy run. See P.39 “Interrupt Copy”
8. {{{{Sample Copy/Partial Copy}}}} key
Allows you to make a Sample Copy (us-
ing the current settings) or Partial Copy
(copies a specified part of an original) to
check the settings before making full cop-
ies. See P.56 “Sample Copy”, P.57 “Partial
Copy”
9. Number keys
Use to enter the desired number of copies
and data for selected modes. Use the En-
ter key to enter data in selected modes.
Press the
{#} key to confirm the values
you have entered.
Press the
{.} key to enter a decimal point.
10. {{{{Clear/Stop}}}} key
Use this key to clear numbers you have
entered, or to interrupt or cancel a copy
job.

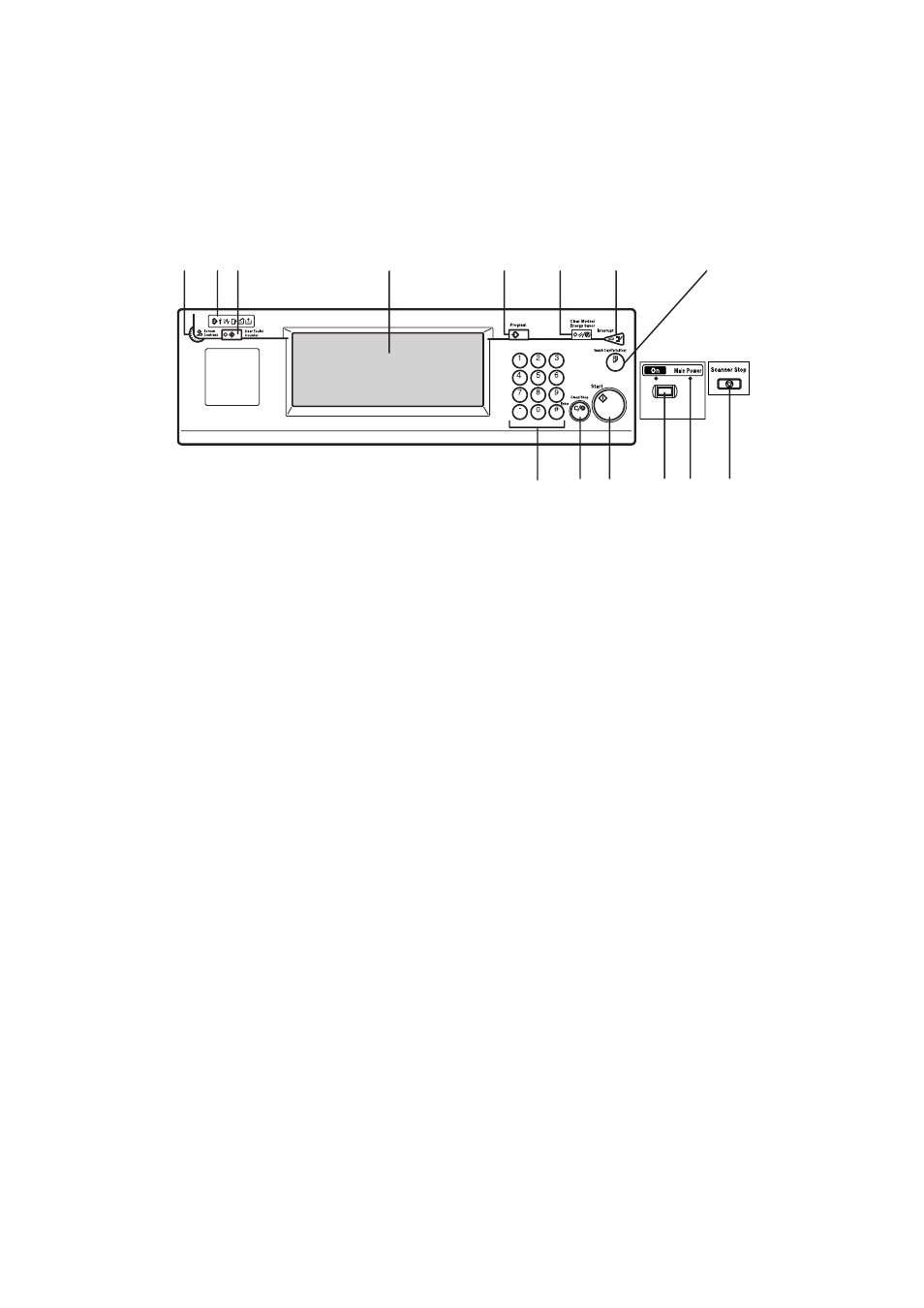

ZEDH361E
1 2 3 4 5 6 7 8
9 10 11 12 13 14
