Regency P48 Zero Clearance Direct Vent Gas Fireplace 25

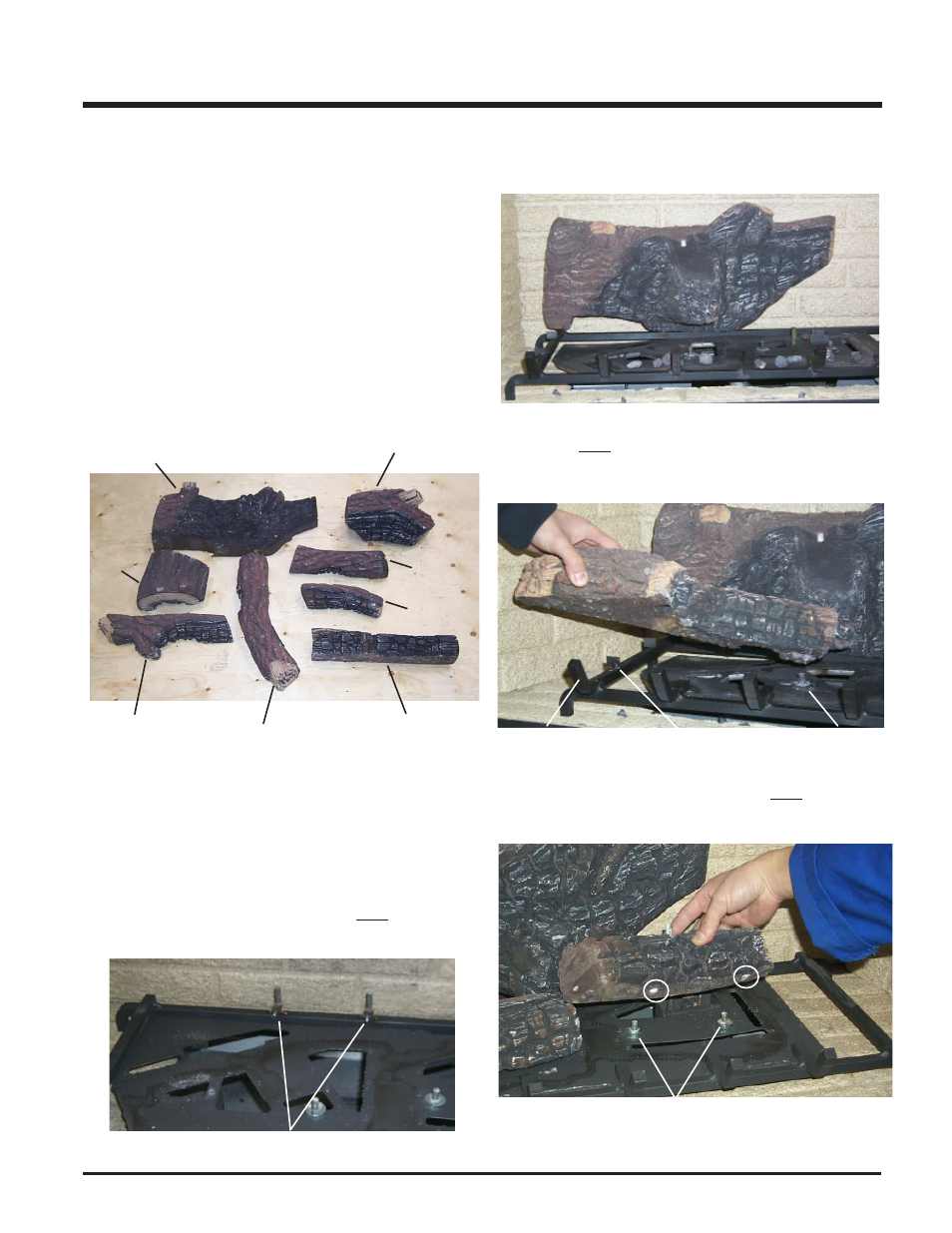

Read the instructions below carefully and refer to the diagrams.
If logs are broken do not use the unit until they are replaced.
Broken logs can interfere with the pilot operation.
The gas log kit (Part # 370-930) contains the following pieces:
a) 02-83 Center Cross Log 902-338
b) 02-84 Right Side Cross Log 902-339
c ) 02-85 Front Left Side Log 902-340
d) 02-86 Front Right Side Log 902-341
e) 02-87 Left Side End Log 902-342
f ) 02-88 Rear Log 902-343
g) 02-89 Middle Right Side Log 902-344
h) 02-90 Right Side End Log 902-345
i) Embers (Lava) 902-154
h) Vermiculite 902-179
1) Carefully remove the logs from the box and unwrap them. The logs
are fragile, handle with care - do not force into position.
3) Line up the two holes on the underside of Log 02-88 with the 2 pins
at the rear of the grate and position into place.
4) Place Log 02-85 on the front left side of the burner. Position the right
end of the log into the pin on the burner and rest the left end of the
log between the 1st grate post and the front tab.
02-84
02-83
02-85
02-86
02-87
02-88
02-90
02-89
The "02" reference numbers (i.e. 02-83) are molded
into the rear of each log.
Pins
02-88
02-85
Pin
1st Grate Post
02-85
02-88
02-86
Pins
Tab
5) Line up the two holes on the underside of Log 02-86 with the 2 pins
on the right side of the burner and position into place.
INSTALLATION
LOG SET INSTALLATION
02-88
2) Sprinkle the vermiculite all over the top of the base brick panel.
