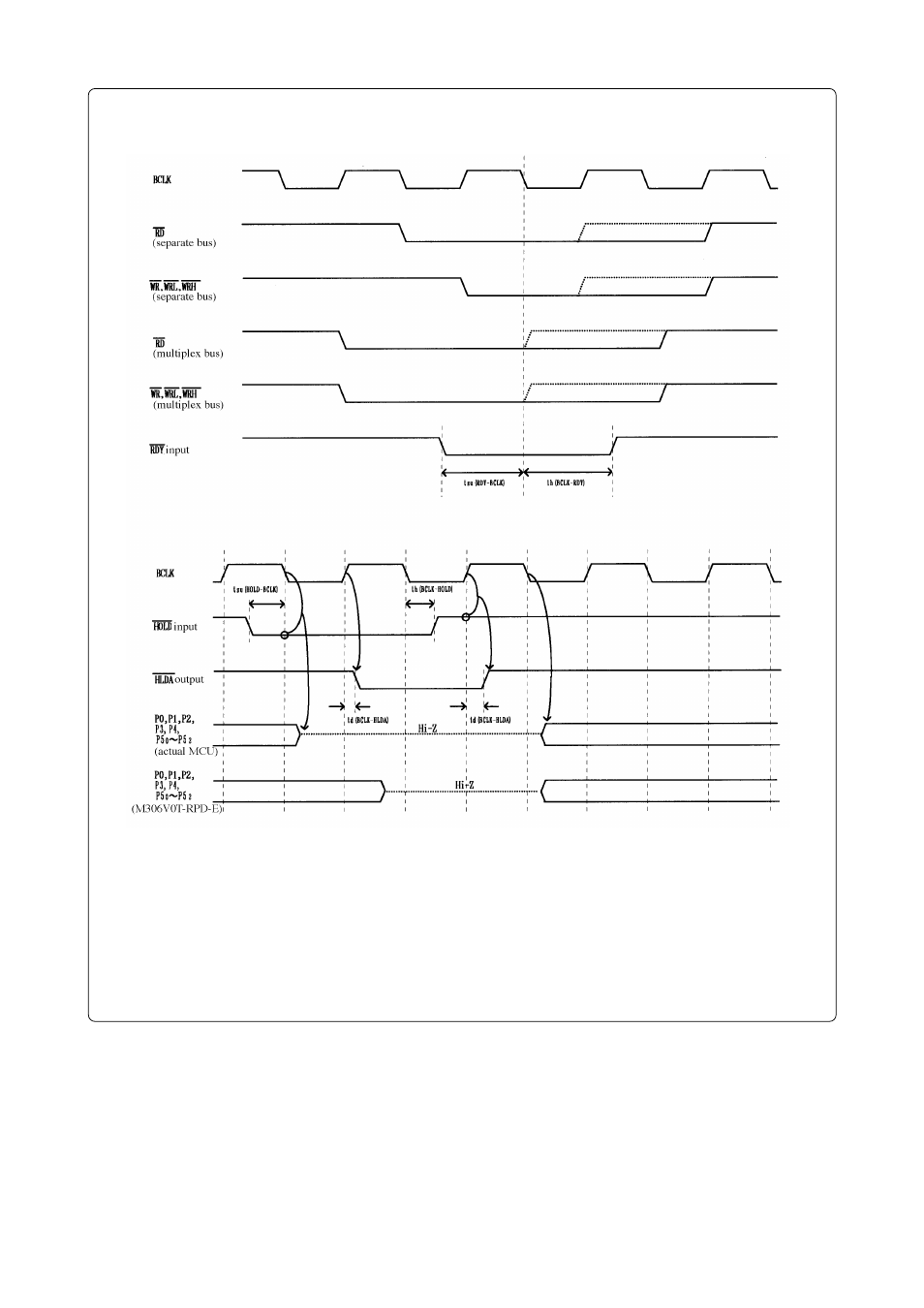

Figure 7.4 Timing requirements (Vcc = 5 V)
Measurement Condition
• V
CC
= 5 V
• Input timing voltage: V
IL
= 1.0 V, V
IH
= 4.0 V
• Output timing voltage: V
OL
= 2.5 V, V
OH
= 2.5 V
Vcc = 5 V
Memory expansion mode or microprocessor mode
Note 1. P0
0
to P5
2
will be high-impedance status regardless of the input level of BYTE pin and ports P4
0
to P4
3
function selection bit (PM06) of the processor mode register 0.
Note 2. This product will be high-impedance delaying by 0.5 cycles than an actual MCU.
