( 31 / 48 )

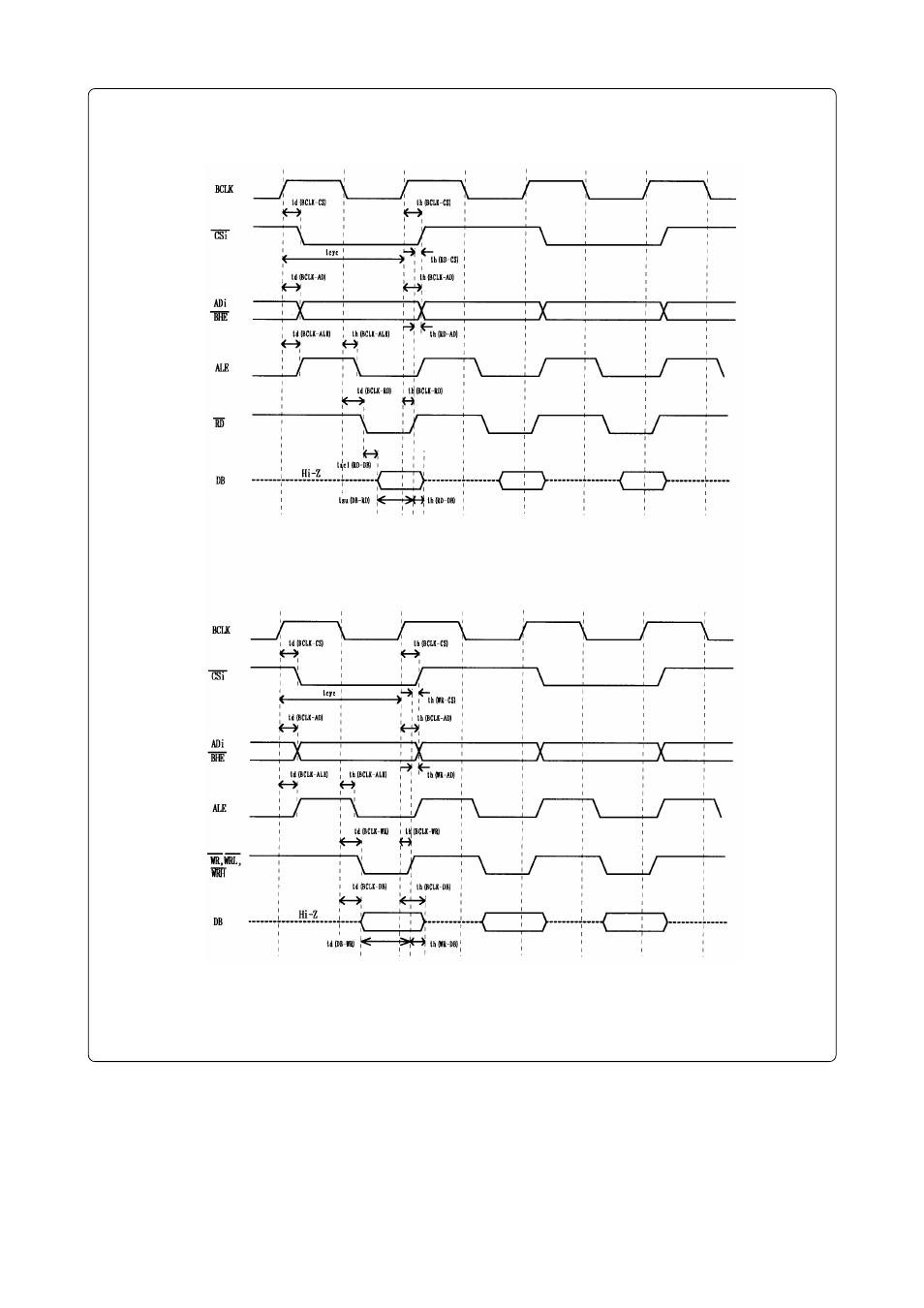

Figure 7.1 Memory expansion mode and microprocessor mode (separate bus, no wait)

Read timing

Write timing

Vcc = 5 V

Memory expansion mode or microprocessor mode (no wait)

Measurement Condition
• V

CC

= 5 V

• Input timing voltage: V

IL

= 0.8 V, V

IH

= 2.5 V

• Output timing voltage: V

OL

= 0.8 V, V

OH

= 2.0 V
