( 26 / 48 )

Chapter 5. Method of Connection

5.1 Connecting Emulator Main Unit

Use the FLX120-RPD 120-pin flexible cable to connect the emulator main unit and M306V0T-RPD-
E. Figure 5.1 shows how to connect the emulator main unit and FLX120-RPD.

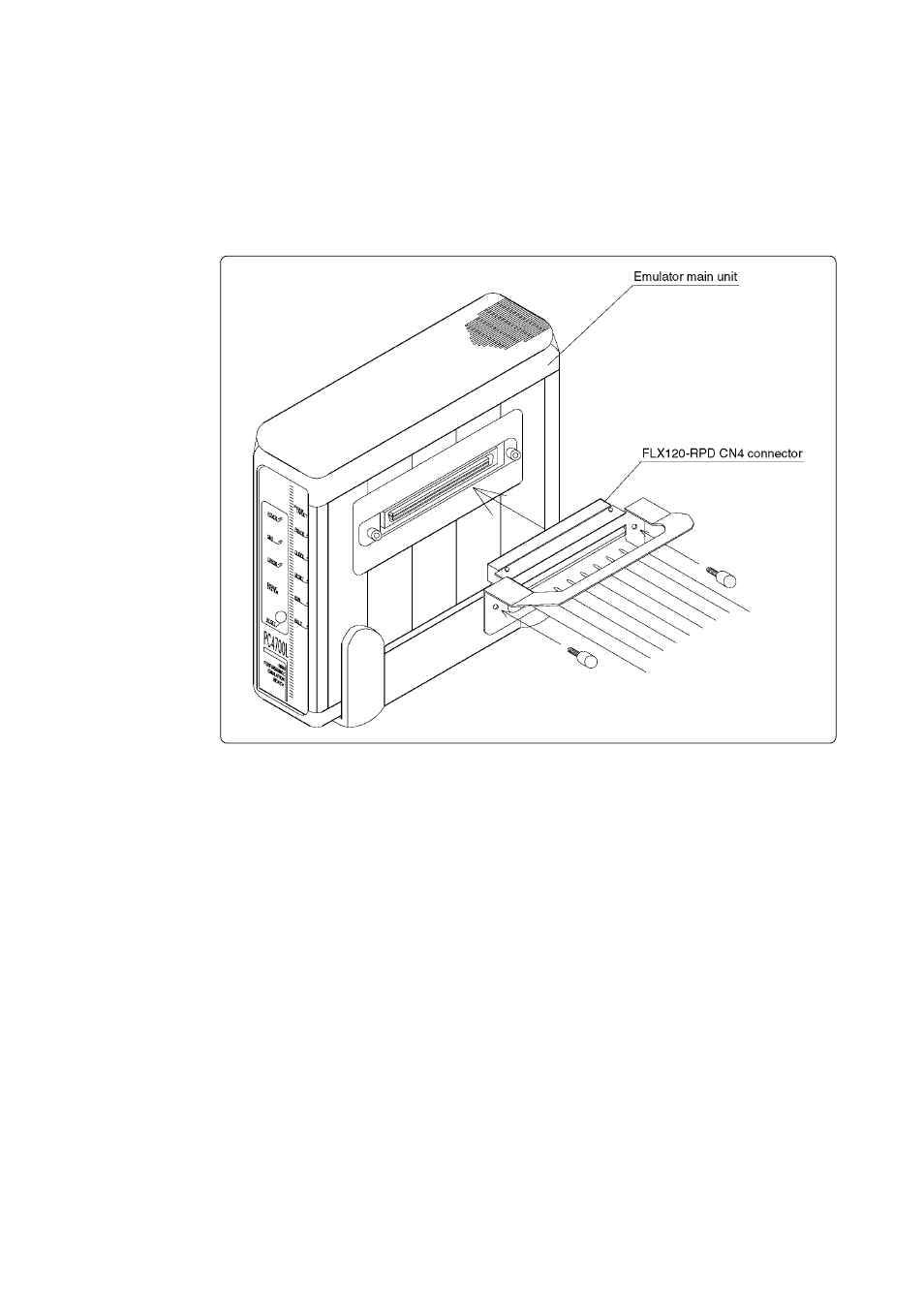

Figure 5.1 Connecting emulator main unit and FLX120-RPD
