5.2 Connecting Target System

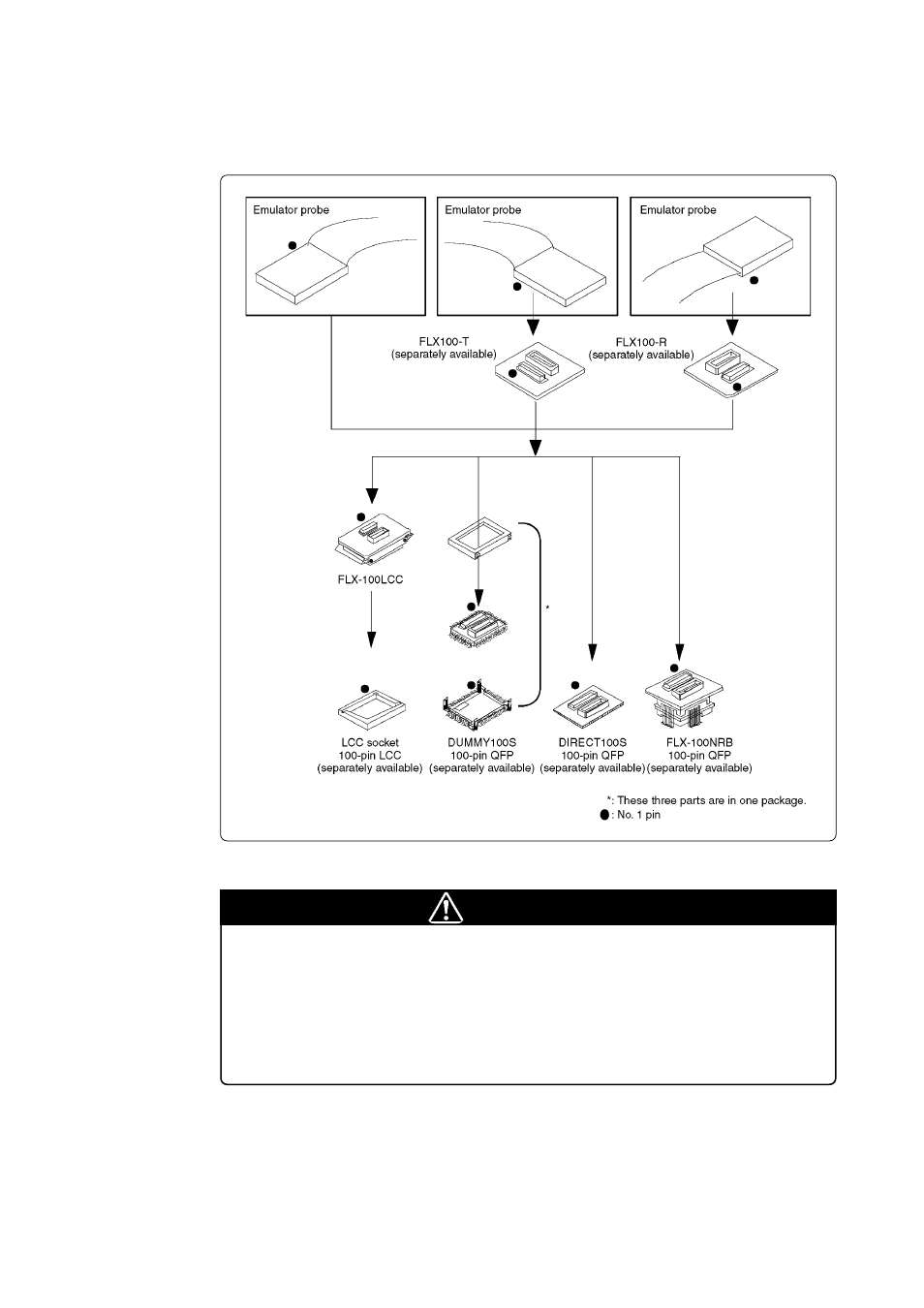

Figure 5.3 shows connections between emulator probes and target systems. For more details, refer
to "Renesas Tools - Accessory Guide".
Figure 5.3 Connection to target systems
CAUTION
Notes on Connecting the Target Systems:
• Be sure to turn off the power before making connections. Otherwise, the internal
circuits may be damaged.
• The small connectors of the FLX100 and FLX-100LCC are guaranteed for only 20
insertion/removal iterations.
