Chapter 1 11
Connections & Setup
CABLE
OR
OFF-AIR SIGNAL
L R
VIDEO AUDIO
IN FROM ANT
IN
OUT
OUT TO TV L R
VCR
DIGITAL
AUDIO OUT
R L/ MONO VIDEO
ANTENNA
S-VIDEO
TV/DVD
OUT
R L
IN
G-LINK
TV
/DV
D
2
VC
R
TV/DVD + VCR

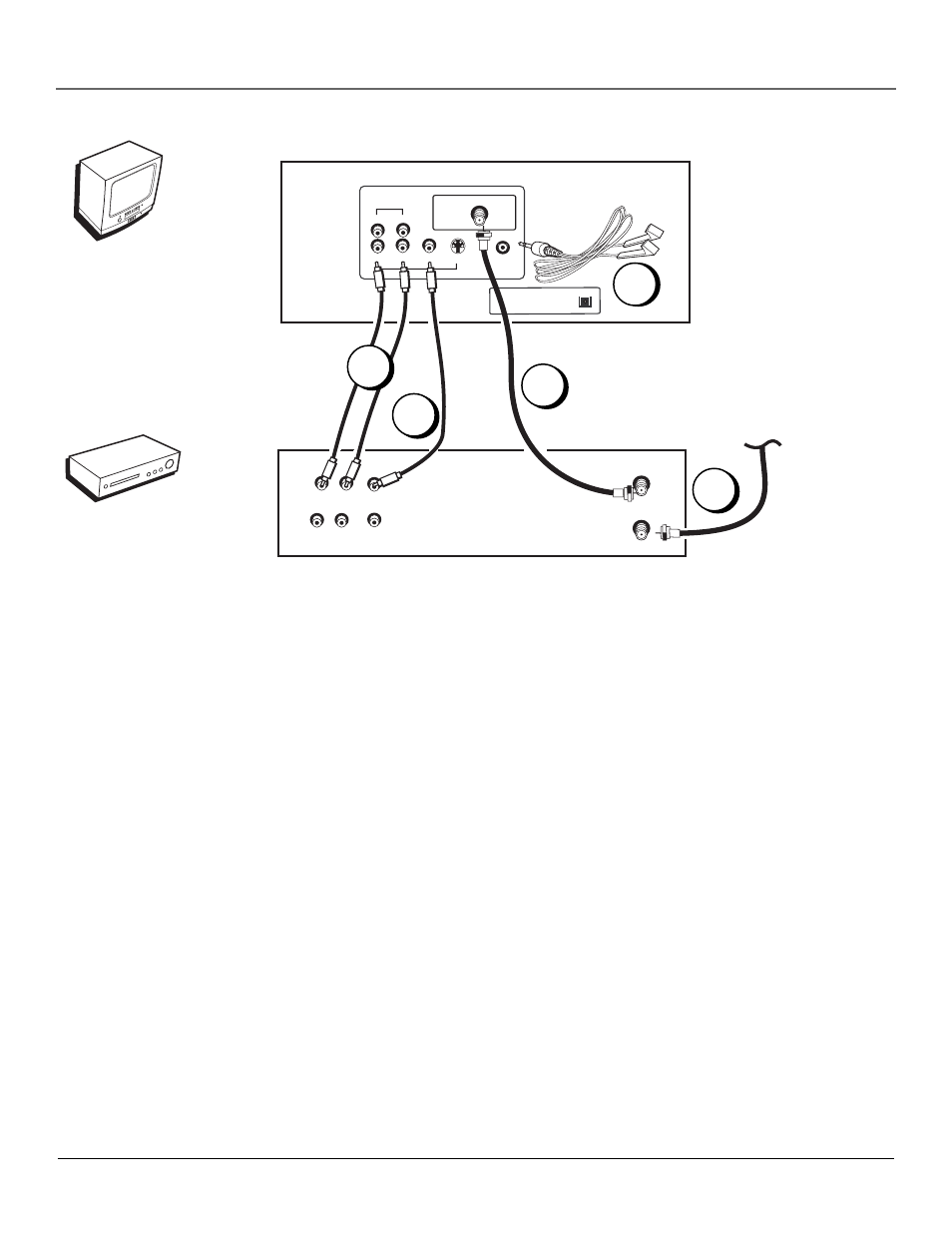

1. Connect your TV/DVD to your VCR
A. Connect a coaxial cable to the ANTENNA jack on your TV/DVD and to the Output Jack on
your VCR (sometimes labeled OUT TO TV).
B. Connect the audio/video cables. Connect audio cables (white and red) to the AUDIO IN jacks
on the back of the TV/DVD (R and L/MONO) and to the Audio Output Jacks on the VCR
(sometimes labeled OUT R L).
C. Connect the video cable (yellow) to the VIDEO IN jack on the back of the TV/DVD and to the
Video Output Jack on the VCR.
2. Connect cable or antenna to your VCR
Connect the coaxial cable from your cable outlet, cable box, or antenna to the Input Jack on your
VCR (sometimes labeled IN FROM ANTENNA or IN FROM ANT).
3. Connect the G-LINK cable to the TV/DVD
Connect the G-LINK cable to the G-LINK jack on the TV/DVD. Next step, place one of the wands
of the G-LINK cable to work with your VCR (instructions are on page 14).
Go to page 14
