Nokia 3210 - Manual (Page 37)

CONFIDENTIAL Service & Analysis Center Europe
Training Team
version 1.0 / 05.11.1999 Page 37 of 37

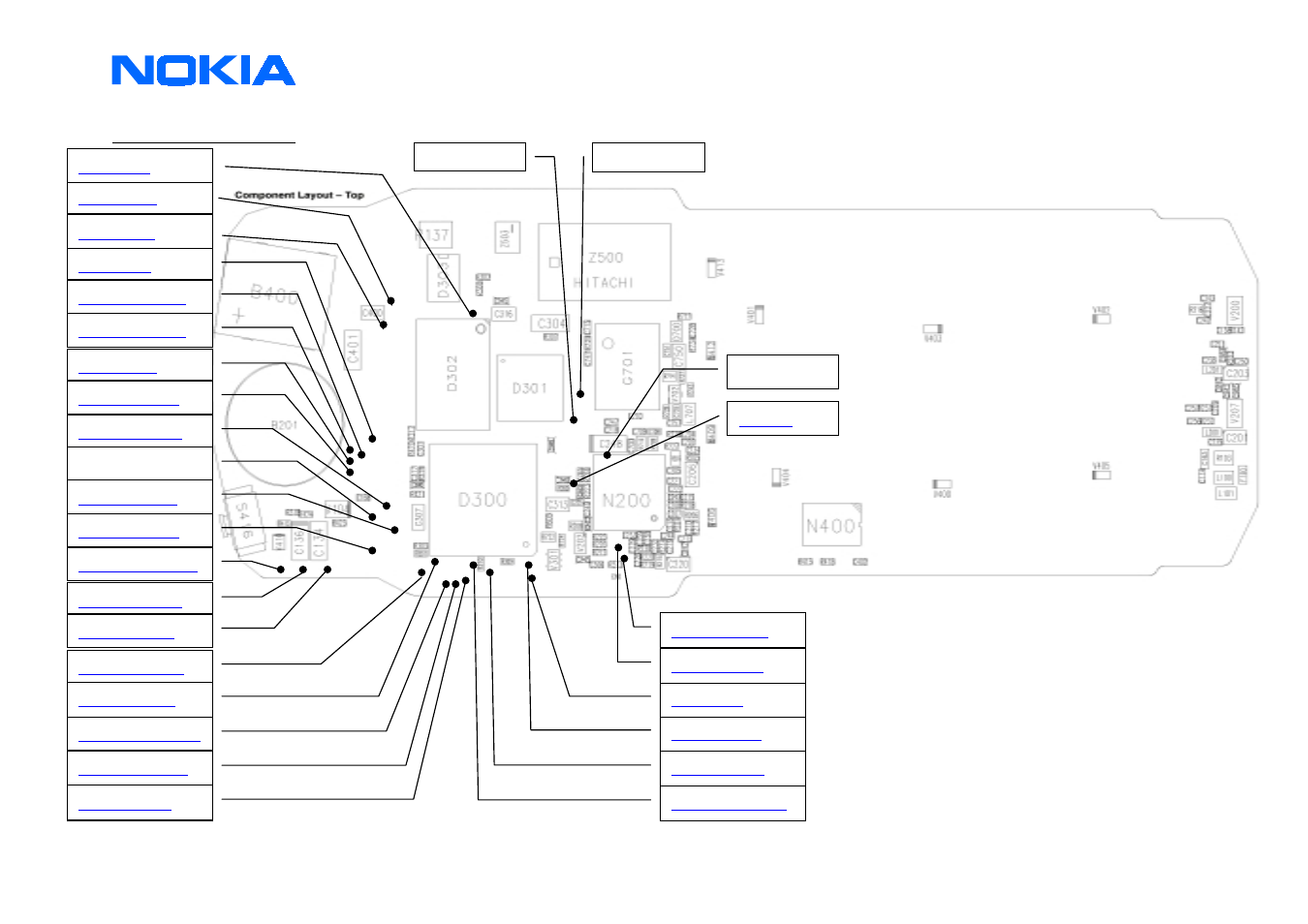

Measurement points NSE-8
J346 / _WD
J303 / _WE
J304 / _RP
J302 / OE J301 / _CE
J200 / RX Ref
J349 / P
J312 / JTDI
J317 / CO Emu1
J316 / CO Emu0
J311 / JTDO
J321 / Sim Pwr
J340 / VXO Pwr
J310 / Charge off
J325 / Sim Det
J322 / SIM IOC
J338 / CCONT Init
J320 / Gen Sclk
J323 / Sim Clk
J339 / Gen Sdio
J324 / Sim Rst
J337GenCCONTCS
J309 / Rom SelX
J308 / DSP XF J345 / COBBA SD
J344 / COBBA
J341 / I DATA
J343 / DSP
J201 / RFI Clk
J342 / Q DATA
