Nokia 3210 User Manual
Page 16
CONFIDENTIAL
Service & Analysis Center Europe
Training Team
version 1.0 / 05.11.1999
Page 16 of 37
N200 COBBA faulty /solder balls broken
•
Check VBB 2,8V DC on C117 near to CCONT
•
Check VCOBBA 2,8V DC C148 near to COBBA
•
Check COBBACKL 13MHz 3,2Vpp on J 201 (see the diagram below)
•
Check COBBA reset impulse during the initialisation routine on J343 (see the diagram below)
•
Change COBBA and write the IMEI and SIM-LOC DATA back to the phone
•
If the error persist, the MAD or the Board should be the reason
•
SWAP the handset because MAD is not changeable
Note! Rewrite SIMLOCK and IMEI entries with use of the Nokia security SW (SSSW) and make a SW-update or send
this phones to the SACE, if this procedure is not permitted to you

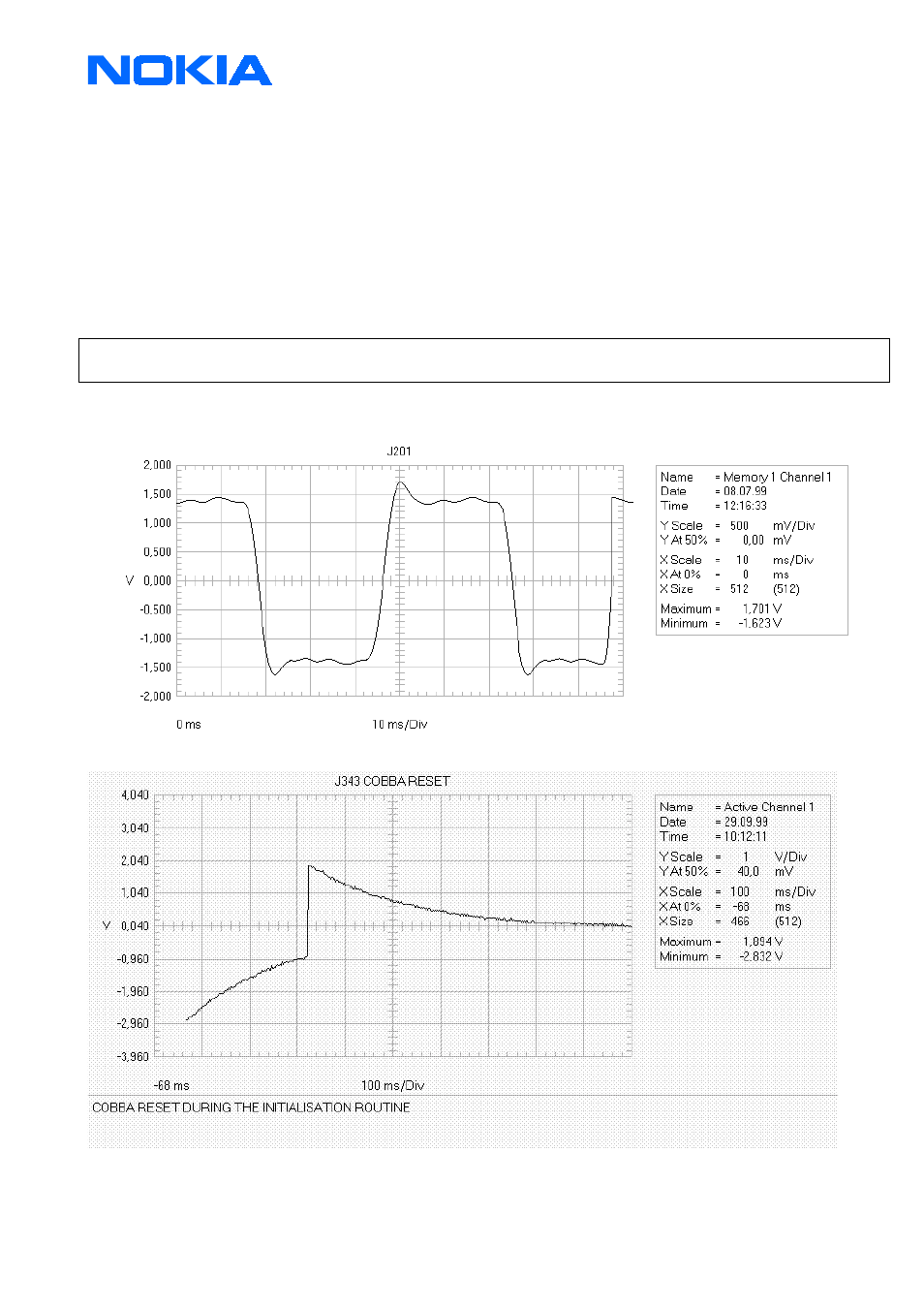

Figure 3: 13MHz Clock signal for the COBBA
Figure 4 Measurement point J343 COBBA RESET
