211
CHAPTER 8 16-BIT TIMER/EVENT COUNTER
Count Clock
TM0 Count Value
CR01 Set Value
CR00 Set Value
INTTM01
TI00 Pin Input
INTTM00
TO0 Pin Output
0000 0001 0000 N N+1 N+2 M–2 M–1 M M+1 M+2 M+3
N
M
N
M
N
M
N
M
Set 08H to TMC0
(TM0 count start)

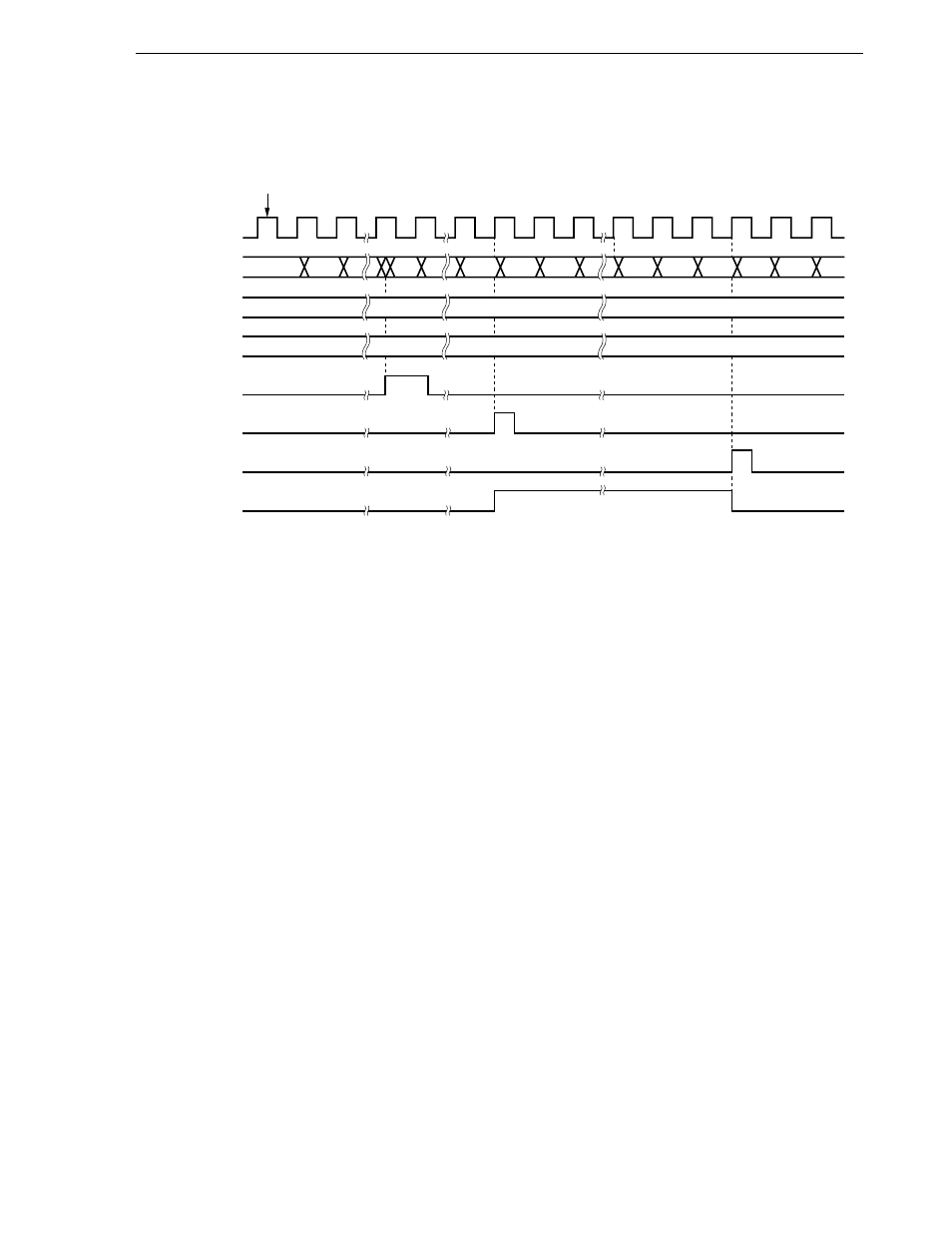

Figure 8-34. Timing of One-Shot Pulse Output Operation Using
External Trigger (With Rising Edge Specified)
Caution The 16-bit timer register starts operation at the moment a value other than 0, 0, 0 (operation
stop mode) is set to TMC01 to TMC03, respectively.
