CHAPTER 5 CPU ARCHITECTURE

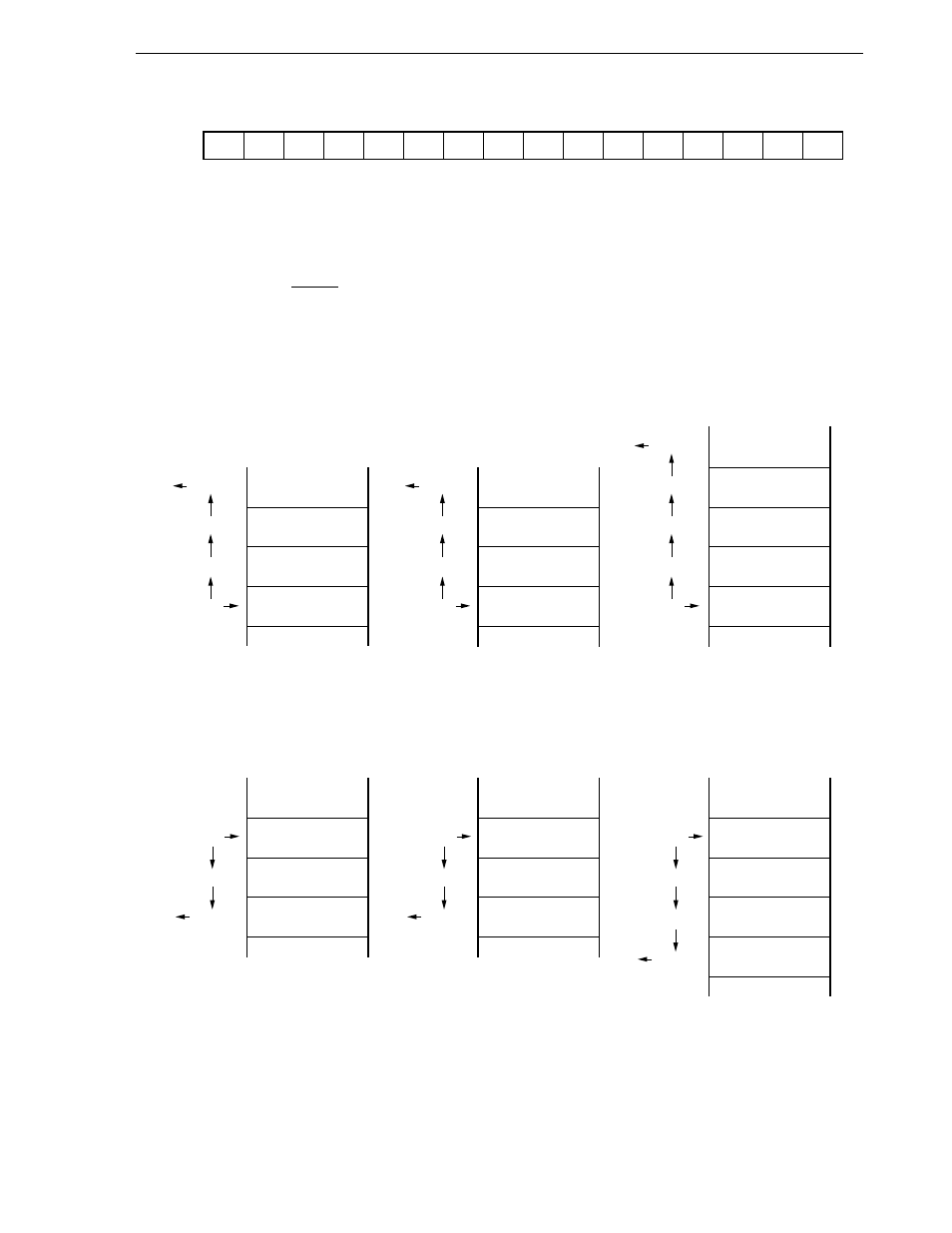

Figure 5-19. Stack Pointer Configuration
The SP is decremented ahead of write (save) to the stack memory and is incremented after read (reset) from
the stack memory.
Each stack operation saves/resets data as shown in Figures 5-20 and 5-21.
Caution Since RESET input makes SP contents indeterminate, be sure to initialize the SP before
instruction execution.
Figure 5-20. Data to be Saved to Stack Memory
Figure 5-21. Data to be Reset from Stack Memory
