Page 104
6800/7000 Series - Distribution and Routing Products Installation and Operation Manual
77
VPD-6830-DEQ
Chapter 8: VPD-6830 Programmable Video DA Series
VPD-6830-DEQ
The VPD-6830-DEQ uses a different type of cable than is used by the
main EQ. The following diagram describes the VPD-6830-DEQ signal
flow:

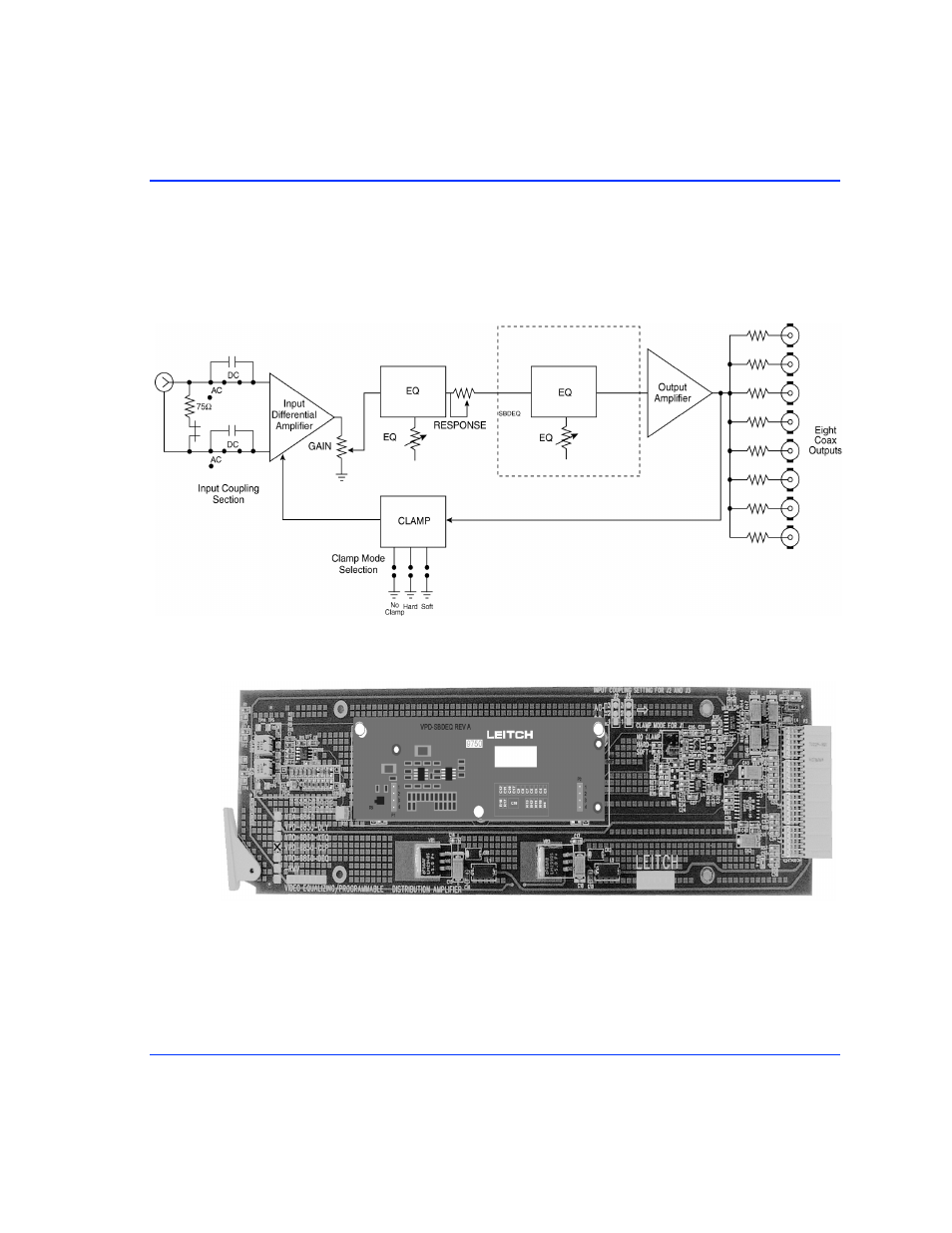

Figure 8-9.
VPD-6830-DEQ Functional Block Diagram
Figure 8-10.
VPD-6830-DEQ Top View
