Connectors, Ports, and Label Information
Each unit has various status indicators and a label with important information. Familiarize yourself
with these features of your product.
The Powerline HD Ethernet Adapter
The front panel of the HDX101 contains the status lights described below.
You can use the status lights to verify connections. Viewed from top to bottom, the table below
describes the lights on the front panel.

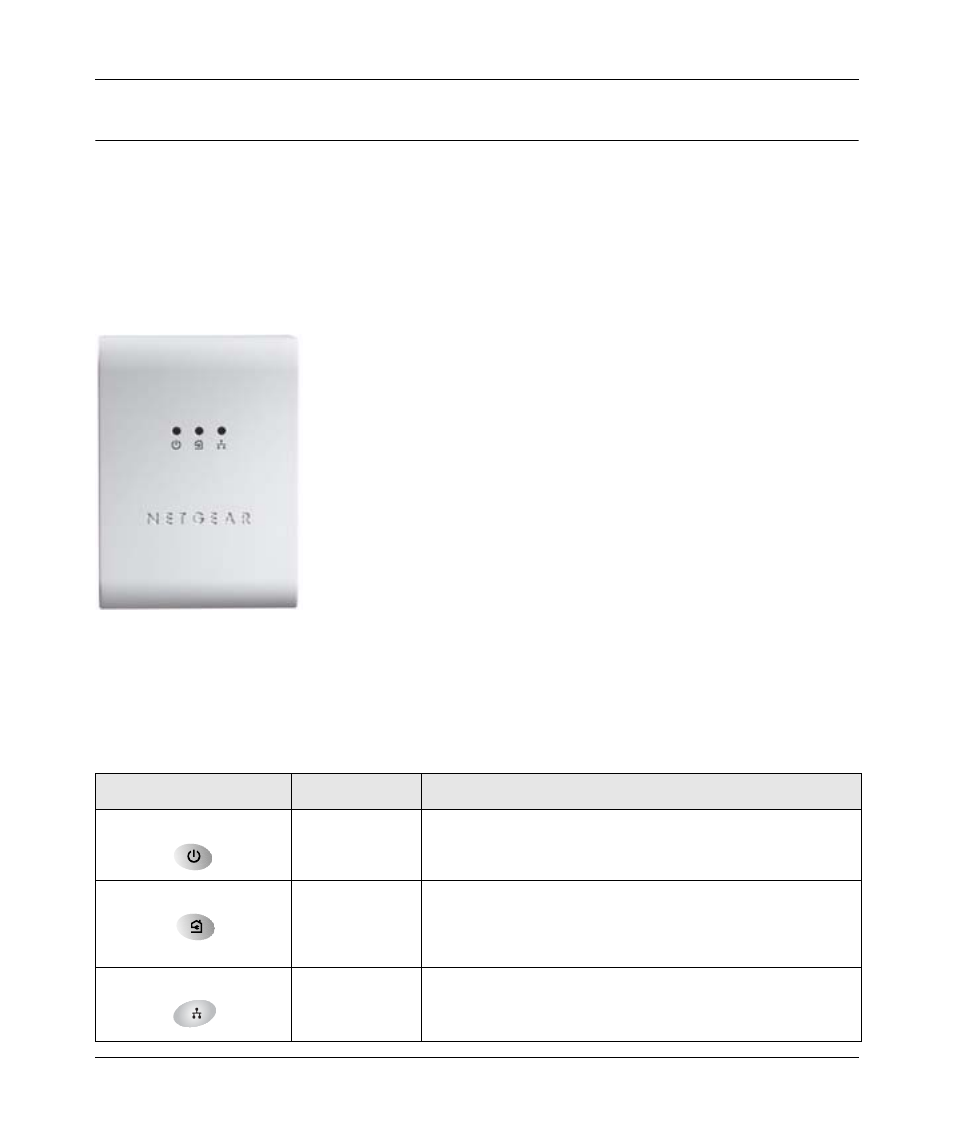

Figure 1-1
Table 1-1. Status Light Descriptions
Label Activity Description
Power On Green Solid
Off Power is supplied to the HDX101.
Power is not supplied to the HDX101.
Powerline Link On Blue Solid
Off
The device has detected another Powerline device on the
Powerline network.
No other Powerline devices detected on the Powerline
network.
Ethernet On Green Solid
Blink
Off The Ethernet port is linked but there is no activity.
Data is being transmitted or received over the Ethernet port.
There is no active Ethernet connection.
