Figure 43. configuring ports / vf interfaces – Nokia DNT2Mi sp/mp User Manual
Page 67
Using front panel menus
DN01145897
© Nokia Corporation
67 (128)
Issue 2-0 en
Nokia Proprietary and Confidential

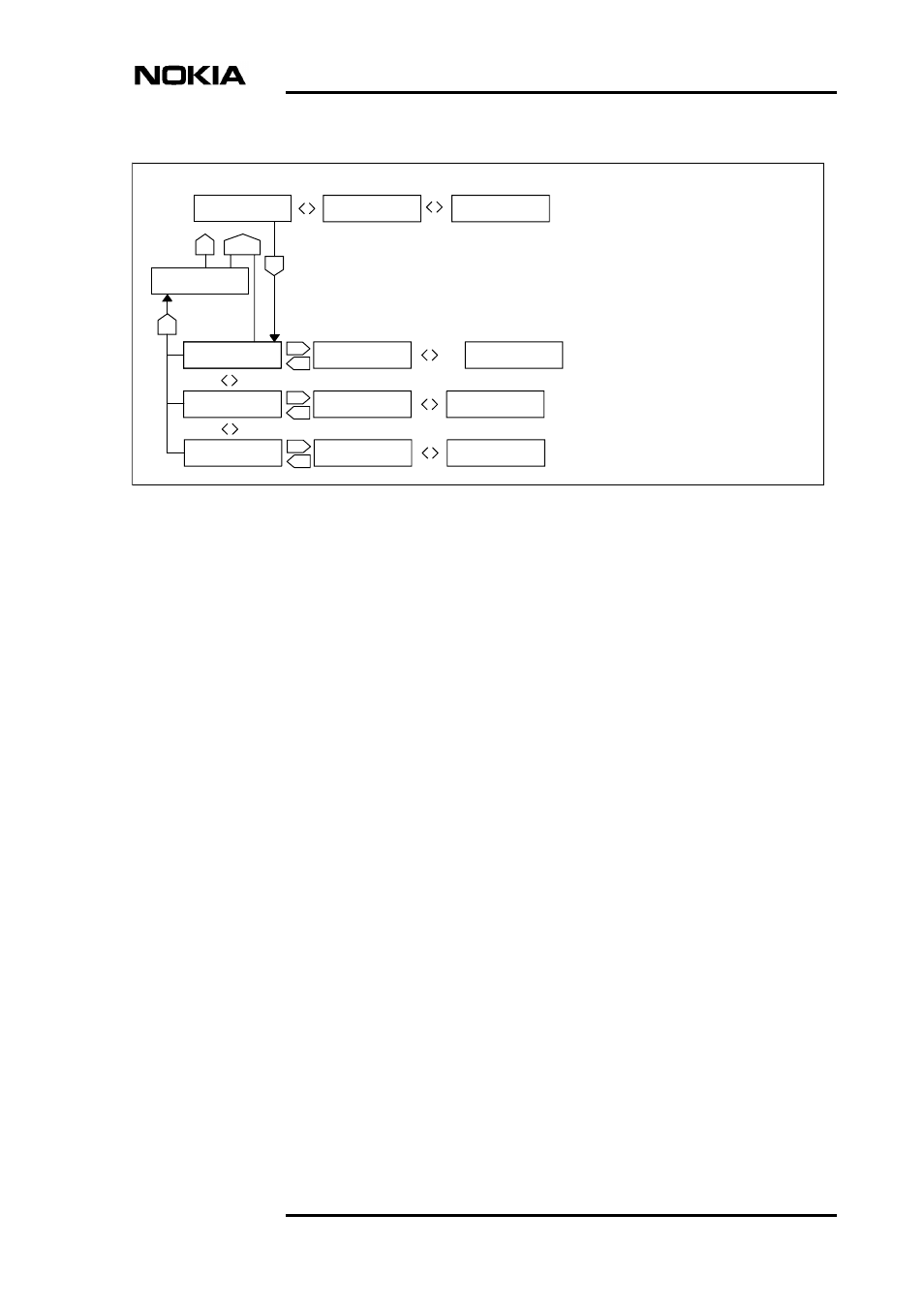

Figure 43.
Configuring ports / VF interfaces
Configure
Port 1
Configure
Port 2
Configure
Port 3
Ports 2 and 3 in
multiport version only
Input level
-22.0 dBm (2-w) *
OK
EX
DTE if alarms
Disabled *
OK
EX
Input level
-22.0 dBm (2-w) *
Input level
-7.0 dBm (2-w)
DTE if alarms
Disabled *
DTE if alarms
Enabled
...
1)
1)
Scale (0.5 dBm resolution):
-22.0 dBm to -7.0 dBm (2-wire)
-22.0 dBm to -7.0 dBm (4-wire)
Remote loop
Allowed *
OK
EX
Remote loop
Allowed *
Remote loop
Not alowed
OK
EX
OK
Save? OK/Exit
EX
