CHAPTER 1 MATWorX
Direct Connection
You can connect your PC directly to the PBX by
connecting a MAT cable to the PBX RS0 connector.

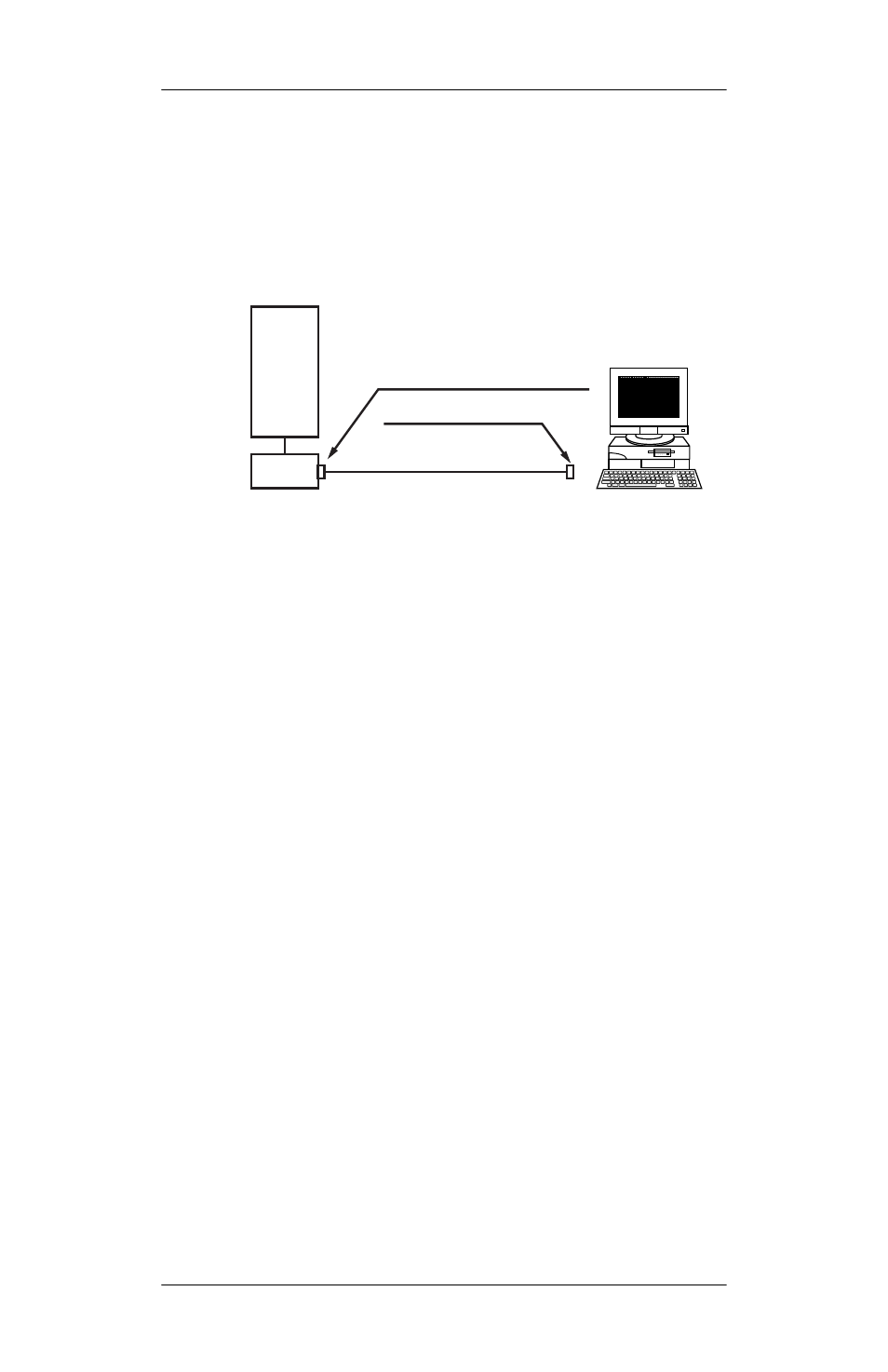

Direct Connection
RS0 connector of MP card
PBX
MP
To RS-232C PORT
PC
MAT CA-T (2 m)
MAT CA-P (4 m)
MAT CA-R (2 m)
