Network Technologies ST-xU User Manual

Page 18

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

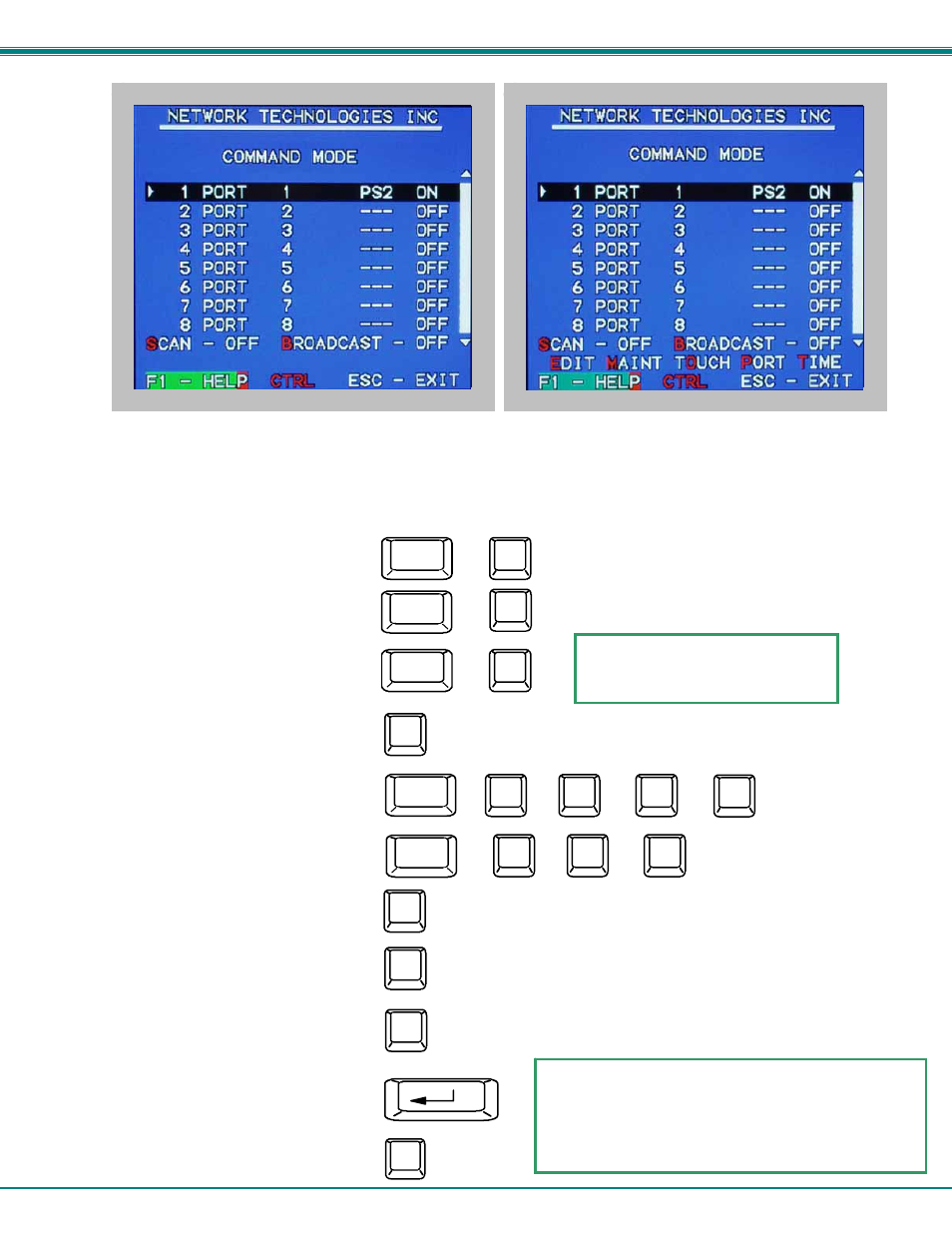

Figure 13- Command Mode menus

Command Mode (Cont’d)

Function:

Keystroke:

Enter Edit Mode

Enter Maintenance Mode

Enter Touch Maintenance
Mode (only if the Touch Screen
option is installed)

Display Help Menu (available with
every control mode)

Sets scan time-out on
each port (in seconds)

Selects a specific port

Selects the first port on the switch

Selects the last port on the switch

Enters Search Mode and adds a character
to search string and selects the CPU’s
name that matches best.

Switch to a selected port

Exit Command Mode

Ctrl

T -

(xxx from 002 to 255. ie. t002
would set the time-out period
for 2 seconds)

(0-2)
x

(0-9)
x

Ctrl

End

Enter

A-Z

0-9

(Type any alphabetical or numeric character)

Home

Esc

P -

(Pxx would be P01, P02, etc.)

(0-9)
x

Ctrl

Note: The user must exit Command Mode to type to a
CPU.

To exit Command Mode, either hold down any touch-
switch on the front panel for more than 2 seconds, OR
press .

Ctrl

See Touch Screen Support option
on page 19 for more on Touch
Maintenance Mode
