- 9 -
LIGHT
SWITCH
BLOWER
ON-OFF
SWITCH
BLOWER
SPEED
LOWER
BLOWER
SPEED
HIGHER
BLOWER
SPEED
HIGHEST
TIMED
SHUT-
OFF
OPERATION

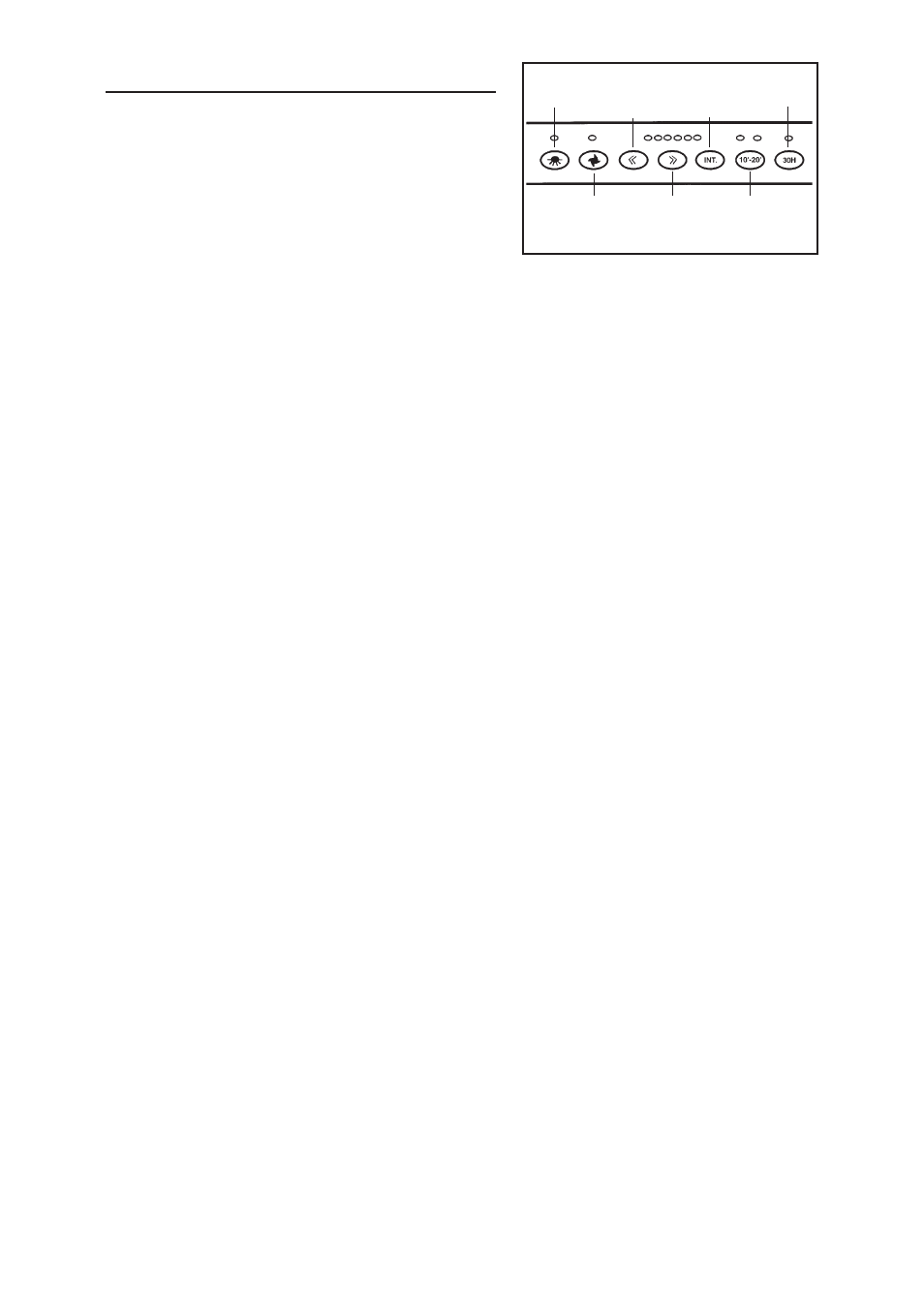

Controls
The hood is operated using the (7) push-
buttons located at eye-level, on the front of the
decorative flue.
The light switch turns the halogen lights on
and off. Push the light switch once to turn the
lights ON - push a second time to turn the
lights ON to a brighter level - push a third
time to turn the lights OFF.
The blower on/off switch turns the blower on to its previous running speed. The
blower must be turned on using this switch. Turn the blower off by pressing this switch
a second time.
The blower speed lower switch lowers the blower’s running speed. This switch works
only when the blower is already running.
The blower speed higher switch raises the blower’s running speed. This switch works
only if the blower is already running.
The blower speed highest switch turns the blower on to its highest running speed.
This switch works at any time.
The timed shut-off switch allows the blower to run for 10 or 20 minutes before shutting
itself off. Push the switch once to set for 10 minutes - twice to set for 20 minutes. This
switch works only if the blower is runinng.
The pilot light above the reset switch will light after the blower has run for 30 hours.
This is a reminder to clean the grease filter. Once the grease filter has been cleaned
and replaced, push the reset switch to turn out the pilot light and start a new 30-hour
count.
HEAT SENTRY™
Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a
device that will turn on or speed up the blower if it senses excessive heat above
the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original
setting.
WARNING
The HEAT SENTRY thermostat can start the blower even if the hood is turned
OFF. When this occurs, it is impossible to turn the blower OFF with its switch.
If you must stop the blower, do it from the main electrical panel.
RESET
