- 5 -

DEPTH ADJUSTMENT

SCREWS

HEIGHT

ADJUSTMENT

SCREWS

WALL

FRAMING

6” ROUND

ELBOW

WALL

CAP

ROOF CAP

6” ROUND DUCT

24” TO 30” ABOVE

COOKING SURFACE

DECORATIVE

FLUE

HOOD

43

5

/

8

"= bottom of hood 24" above cooktop

49

5

/

8

"= bottom of hood 30" above cooktop

FRAMING BEHIND DRYWALL

43

5

/

8

" to 49

5

/

8

" above cooktop

MOUNTING

SCREWS

(4.8x38mm)

RECTANGULAR

CUTOUTS

MOUNTING

BRACKETS

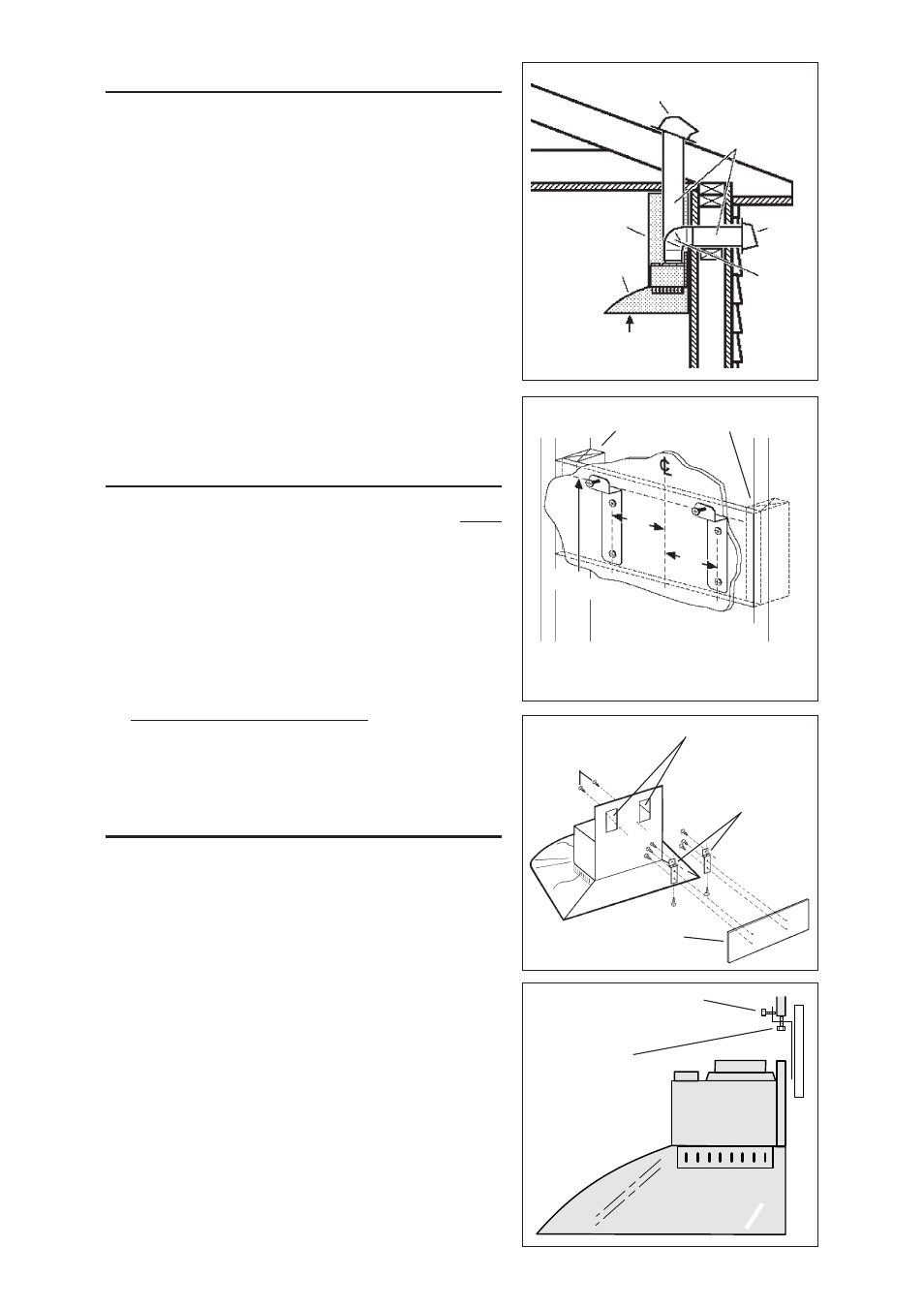

INSTALL MOUNTING
BRACKETS

1. Construct wood wall framing that is flush

with interior surface of wall studs.
Make sure:

a) the framing is centered over installation

location.

b) the height of the framing will allow the

mounting brackets to be secured to

the framing within the dimensions

shown.

2. After wall surface is finished, secure mount-

ing brackets to framing at dimensions

shown, using screws provided.

INSTALL THE HOOD

1. Hang the hood from the brackets through

the rectangular cut-outs on the back of

the hood. Cut-outs are larger than the

brackets to allow for horizontal adjustment.
The bottom of the hood should be 24" to

30" above the cooking surface.

2. Height adjustment screws provide vertical

adjustment.

3. Depth adjustment screws provide hori-

zontal adjustment.

4. Secure the hood with mounting screws

(4.8x38mm). Use drywall anchors,

provided, if wall studs or framing are not

available.

INSTALL THE DUCTWORK

NOTE: To reduce the risk of fire, use only

metal ductwork.

1. Decide where the ductwork will run

between the hood and the outside.

2. A straight, short duct run will allow the hood

to perform most efficiently.

3. Long duct runs, elbows, and transitions will

reduce the performance of the hood. Use

as few of them as possible.

4. Install a roof or wall cap. Connect 6" round

metal ductwork to cap and work back to-

wards hood location. Use duct tape to seal

the joints between ductwork sections.

4

15

/

16

"

4

15

/

16

"
