WIRING
Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical codes.
1. Remove the wiring box cover. Remove a
knockout from the wiring box.
2. Secure the conduit to the wiring box
through a conduit connector.
3. Make electrical connections. Connect white
to white, black to black and green to green.
4. Replace wiring box cover and screws. Make
sure that wires are not pinched between
cover and box.
CONNECT DUCTWORK
1. Use screws (4.8x38mm) and wall anchors
(provided) to secure flue mounting bracket
to the ceiling or wall as shown.
2. Use 6" round metal duct to connect the duct
collar on the hood to the ductwork above.
3. Use duct tape to make all joints secure and
air tight.

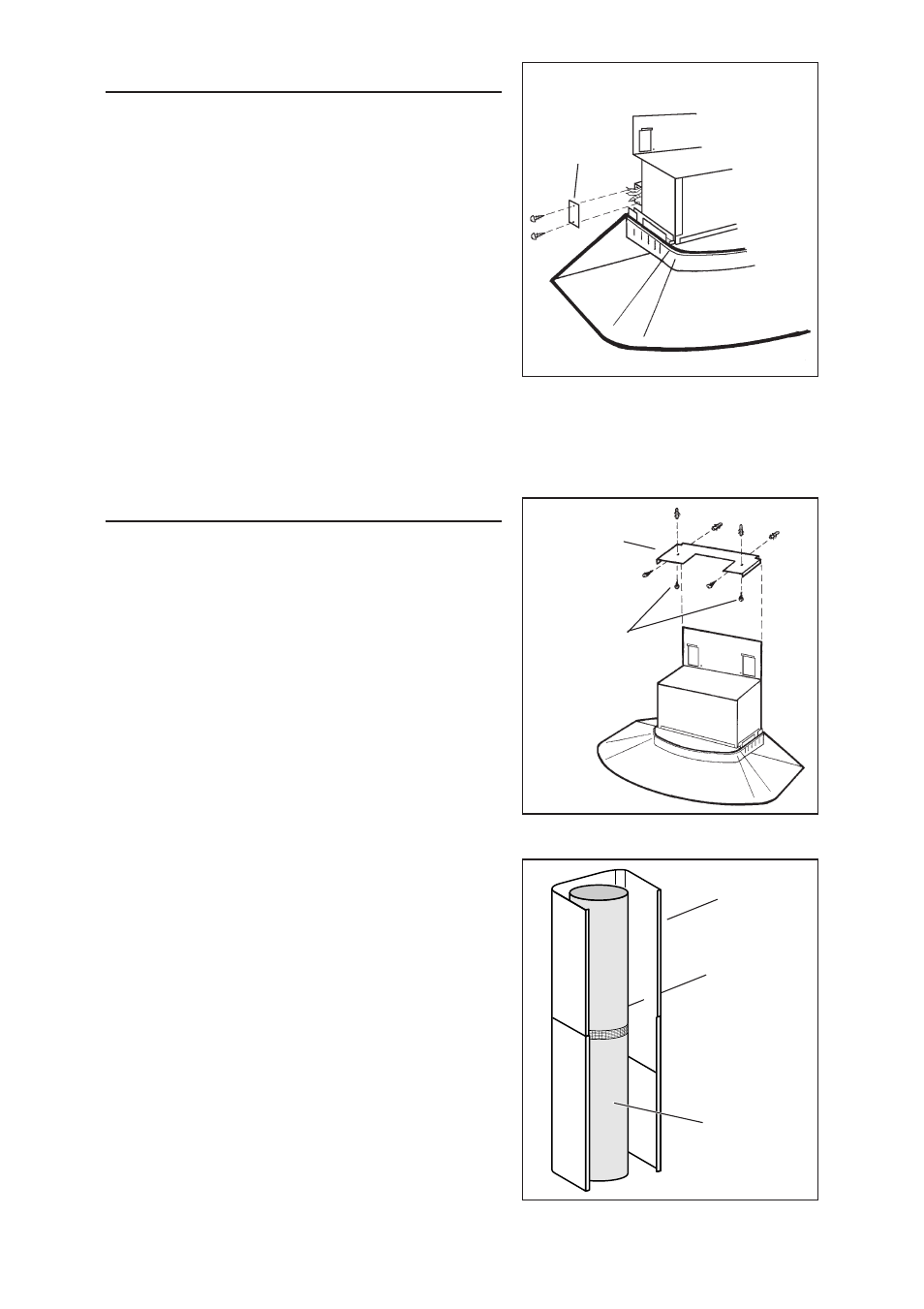

WIRING BOX
COVER
6" ROUND
METAL DUCT
DECORATIVE
FLUE
DUCT TAPE
FLUE
MOUNTING
BRACKET
MOUNTING
SCREWS
(4.8x38mm)
