NETGEAR RangeMax Dual Band Wireless-N USB Adapter WNDA3100 User Manual

1-12

v1.0, December 2007

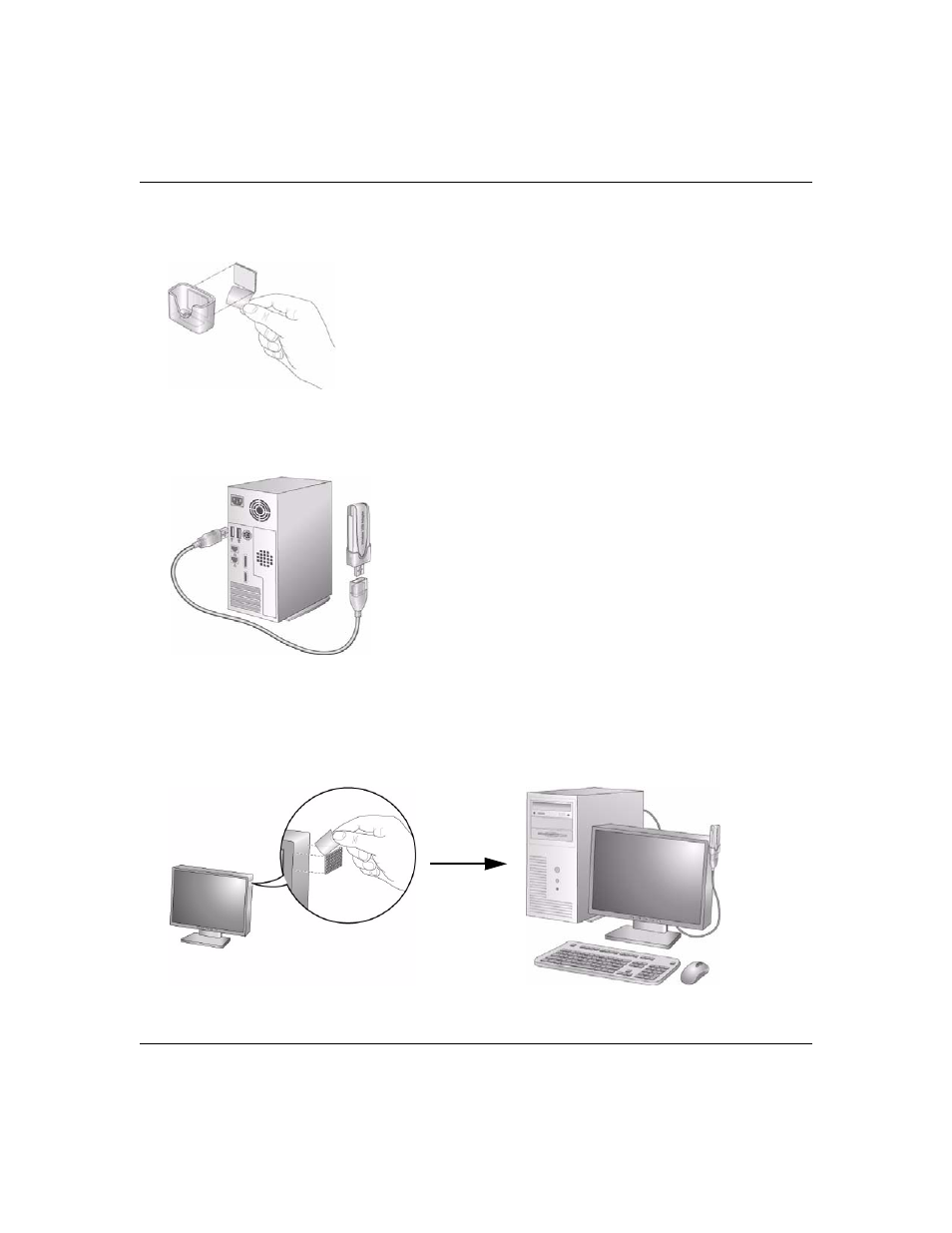

1. The wireless USB adapter comes with three black fasteners. Locate the one with a prickly

side, and attach it to the plastic cradle on the middle of the outside rear.

2. Insert the wireless USB adapter in the plastic cradle, and connect the USB cable.

4. Place one of the other pieces of loop-and-hook fastener on the side or back of your monitor

near the top for better reception. Then join the pieces of the fastener to attach the USB adapter
in the plastic cradle to the monitor.

Figure 1-10

Figure 1-11

Figure 1-12
