Figure 3-13. pxi rtsi bus signal connections – National Instruments NI 6115/6120 User Manual
Page 37
Chapter 3
Hardware Overview
3-14
ni.com

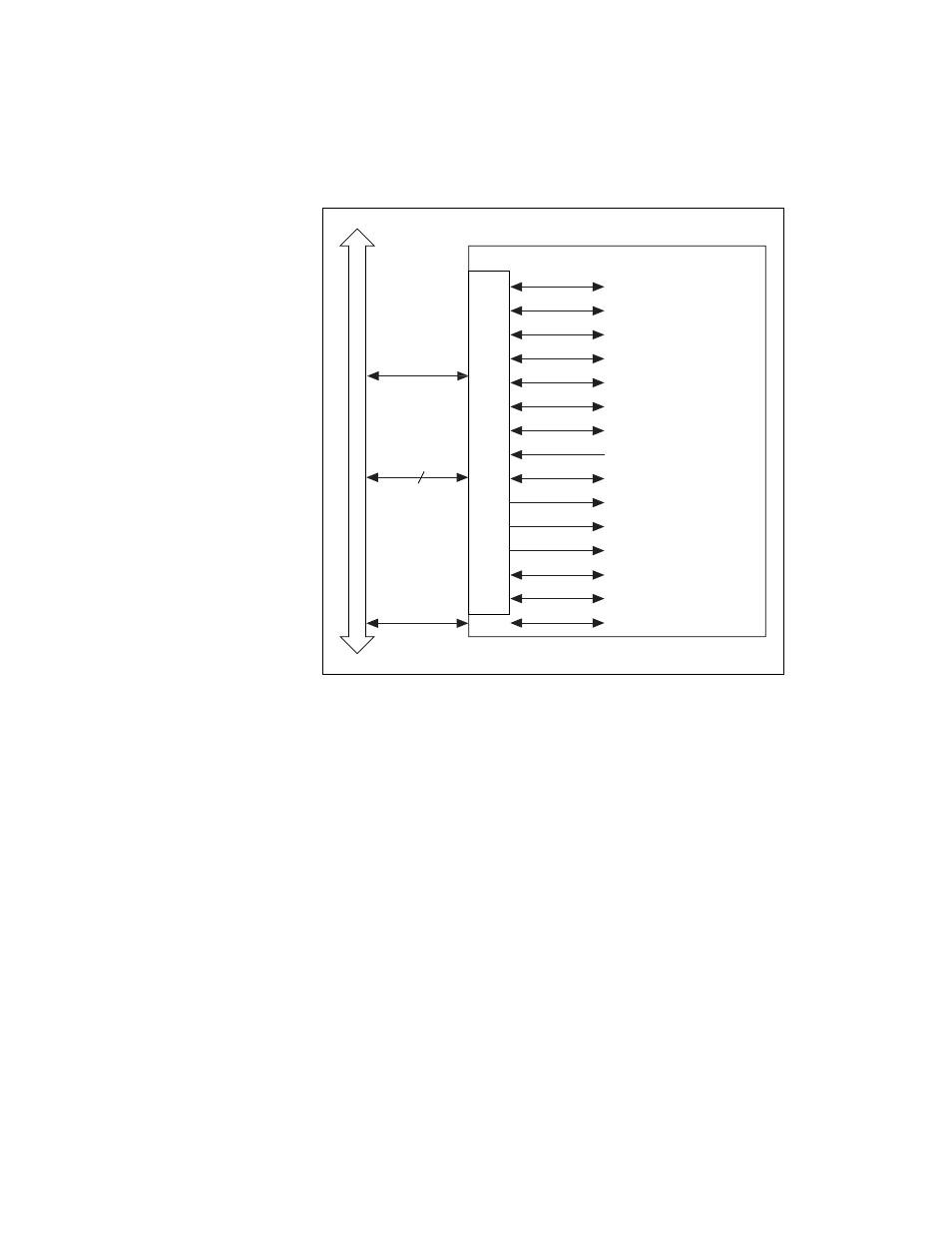

Figure 3-13. PXI RTSI Bus Signal Connections
Refer to the
section of Chapter 4,
, for a description of the signals shown in Figures 3-12 and 3-13.
PXI Bus Connector
PXI Trigger (7)
DAQ-STC
TRIG1
TRIG2
CONVERT*
UPDATE*
WFTRIG
GPCTR0_SOURCE
GPCTR0_GATE
GPCTR0_OUT
STARTSCAN
AIGATE
SISOURCE
UISOURSE
GPCTR1_SOURCE
GPCTR1_GATE
RTSI_OSC (20 MHz)
RTSI Switch
Switch
PXI Trigger (0..5)
6
PXI Star (6)
