Reference Manual for the Model DG834GT 108 Mbps Super Wireless ADSL Router
3-6 Connecting the Router to the Internet
August 2004
.

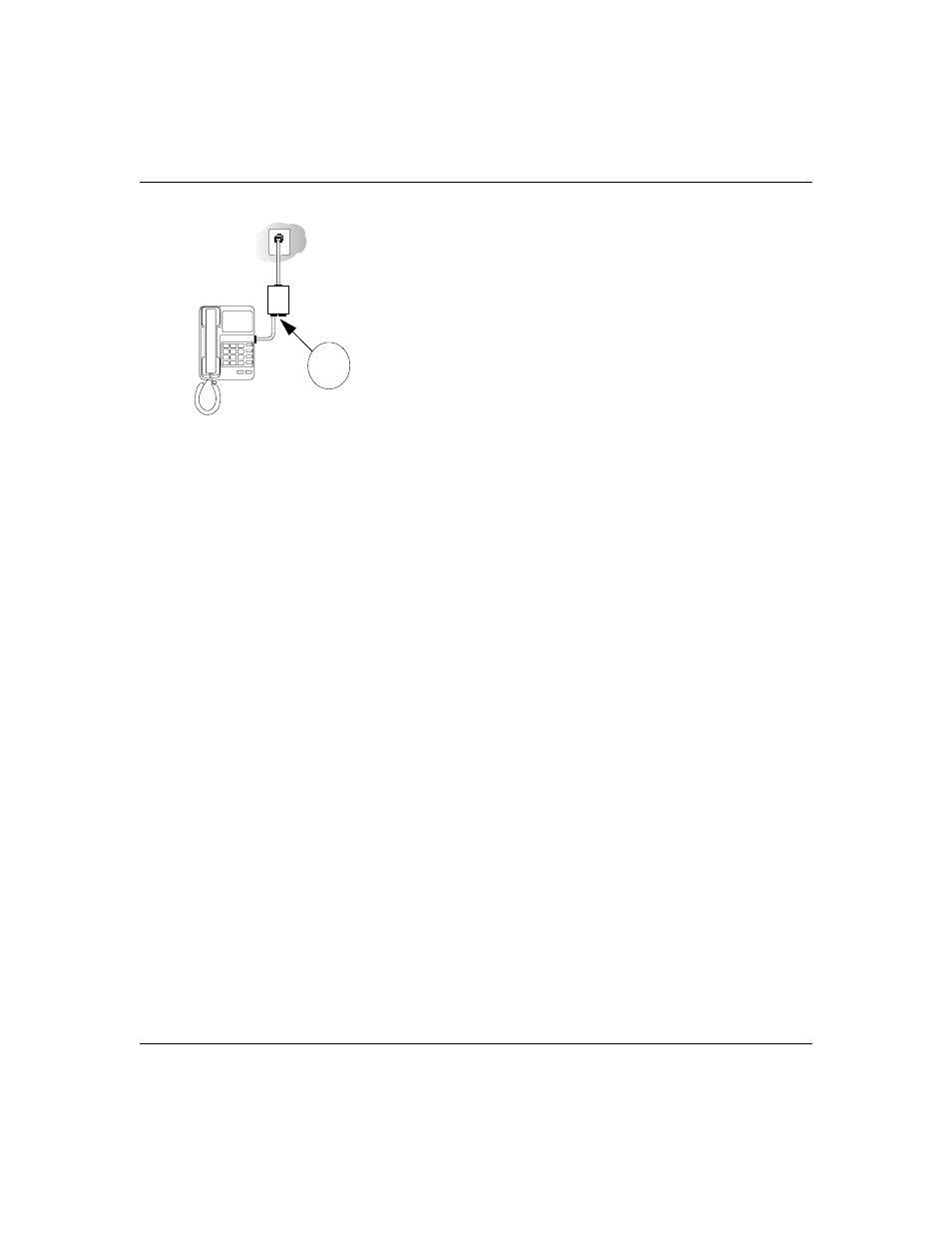

Figure 3-4: Connecting an ADSL microfilter and phone
Note: To use a one-line filter with a separate splitter, insert the splitter into the phone
outlet, connect the one-line filter to the splitter, and connect the phone to the filter.
2. C ONNECT THE DG834GT TO THE ADSL F ILTER .
Note: Improperly connecting a filter to your DG834GT Super Wireless ADSL Router will
block your ADSL connection.
a. Turn off your computer.
b. Connect the ADSL port of the DG834GT to the ADSL port (B) of the two-line filter:
0HONE $3,
,INE
A
