Physical installation
4.1
Placing the gateway on a table or desk

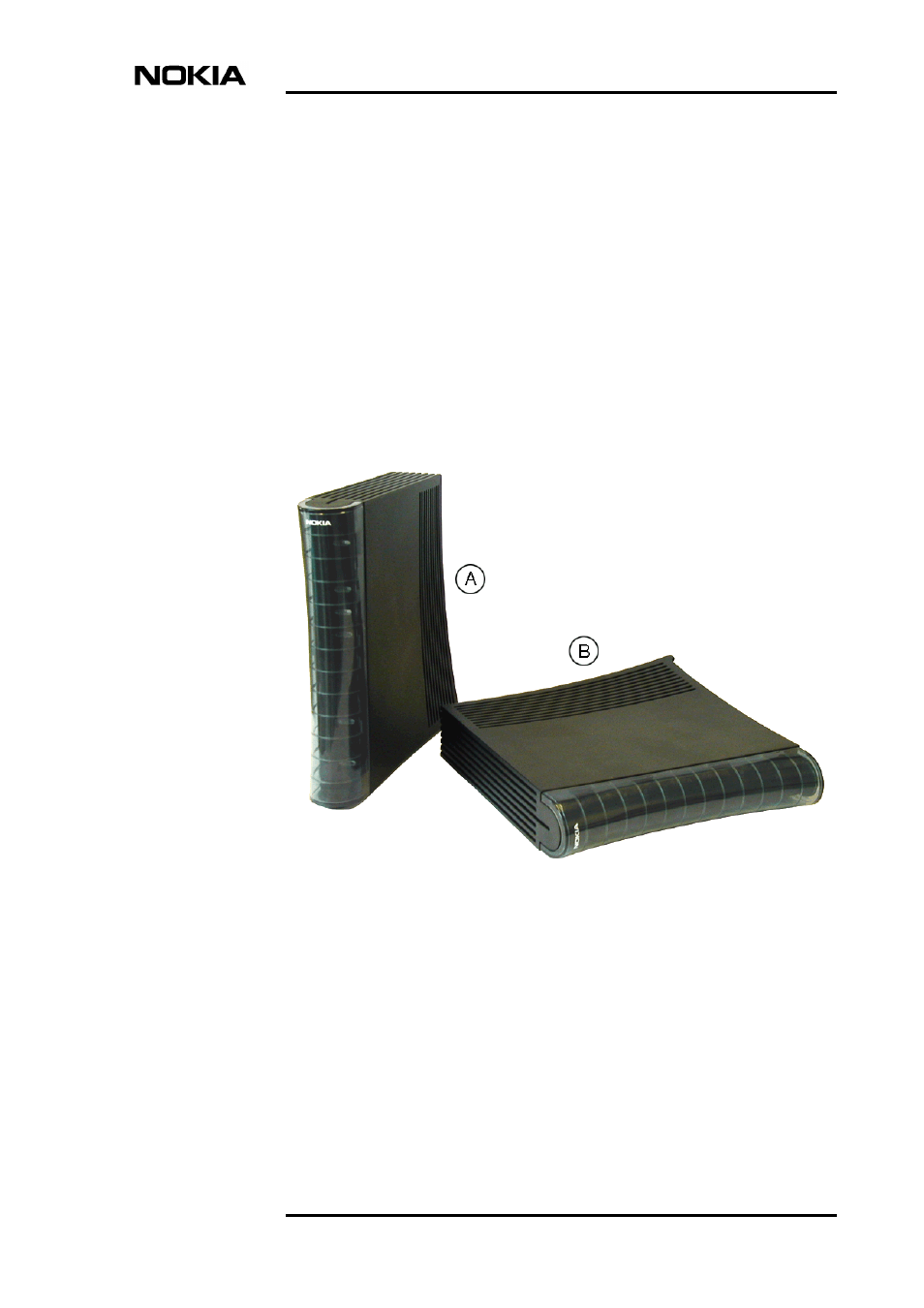

Figure 5.
Placing the gateway in a vertical (A) or horizontal (B) position
4.2
Installing the gateway on a wall
The gateway can also be wall mounted. Figure 6 shows the installation procedure.
