Nokia M/MW Gateways M1112, M1122, MW1112, MW1122, MW1324, MW1352
10 (40) © Nokia Networks Oy DN01154358
Nokia Proprietary and Confidential Issue 1-0 en
• DSL line cable
• 10Base-T Ethernet cable
In M models, straight through Ethernet cables are used
In MW models, crossover Ethernet cables are used
• Power cord
• Serial adapter
• User Manual
3.3 Get acquainted with your gateway's indicator
lights and connectors
Indicator lights
There are six (MW1324: seven) indicator lights in the front panel: DSL, HPNA
(MW1324 only), ETH, COL, WLAN, STA and PWR. STA indicator is red. The
other indicators are green.
The indicator lights are located in the gateway's front panel.
Models M1112 and M1122 have four ETH indicator lights (ETH1–ETH4) in the
front panel.

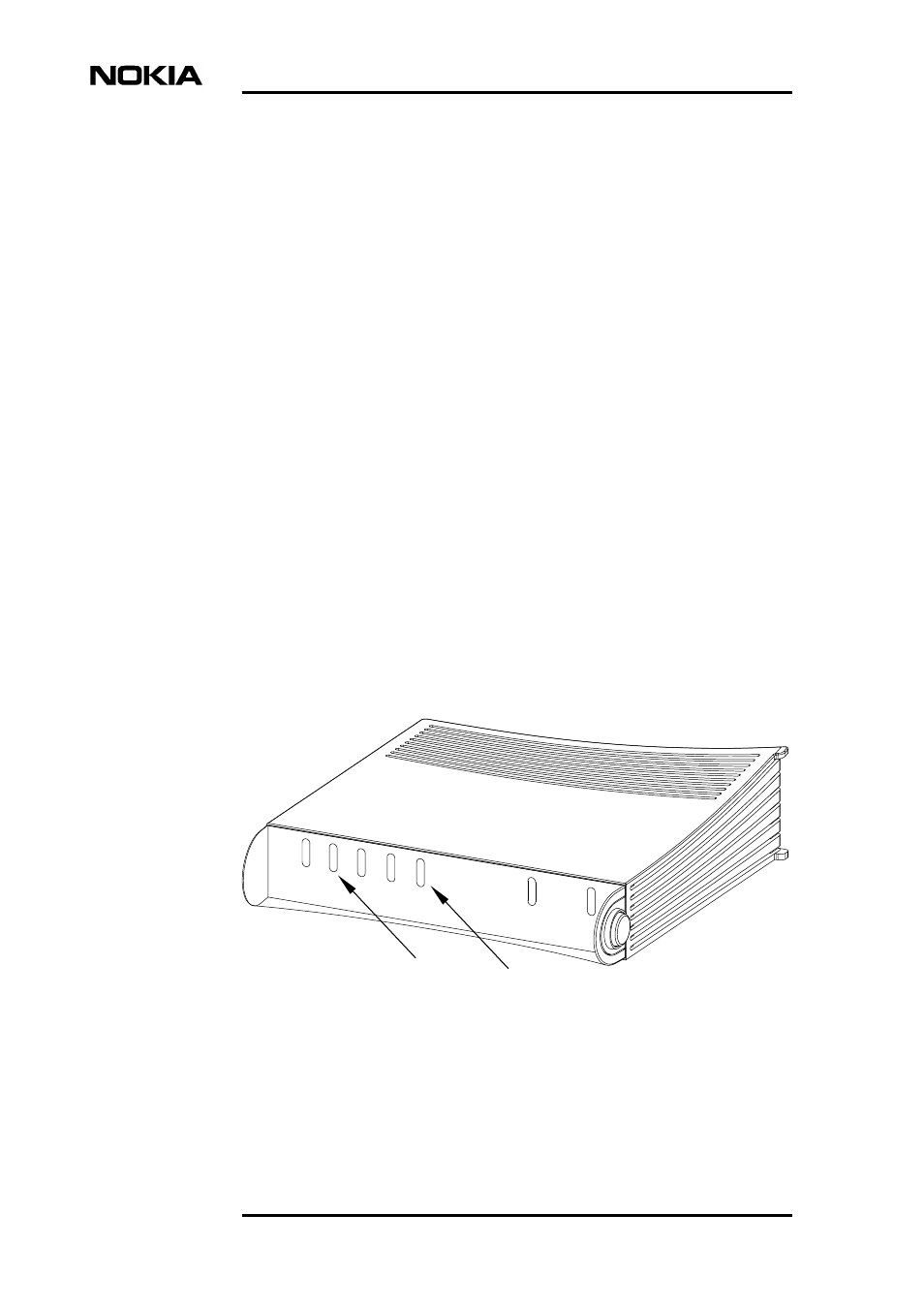

Figure 2. Front panel indicators
DSL
HPNA ETH
COL
WLAN
STA
PWR
MW1324 only
MW series only
