NILES AUDIO CORPORATION – 1-800-BUY-HIFI or 1-305-238-4373
7

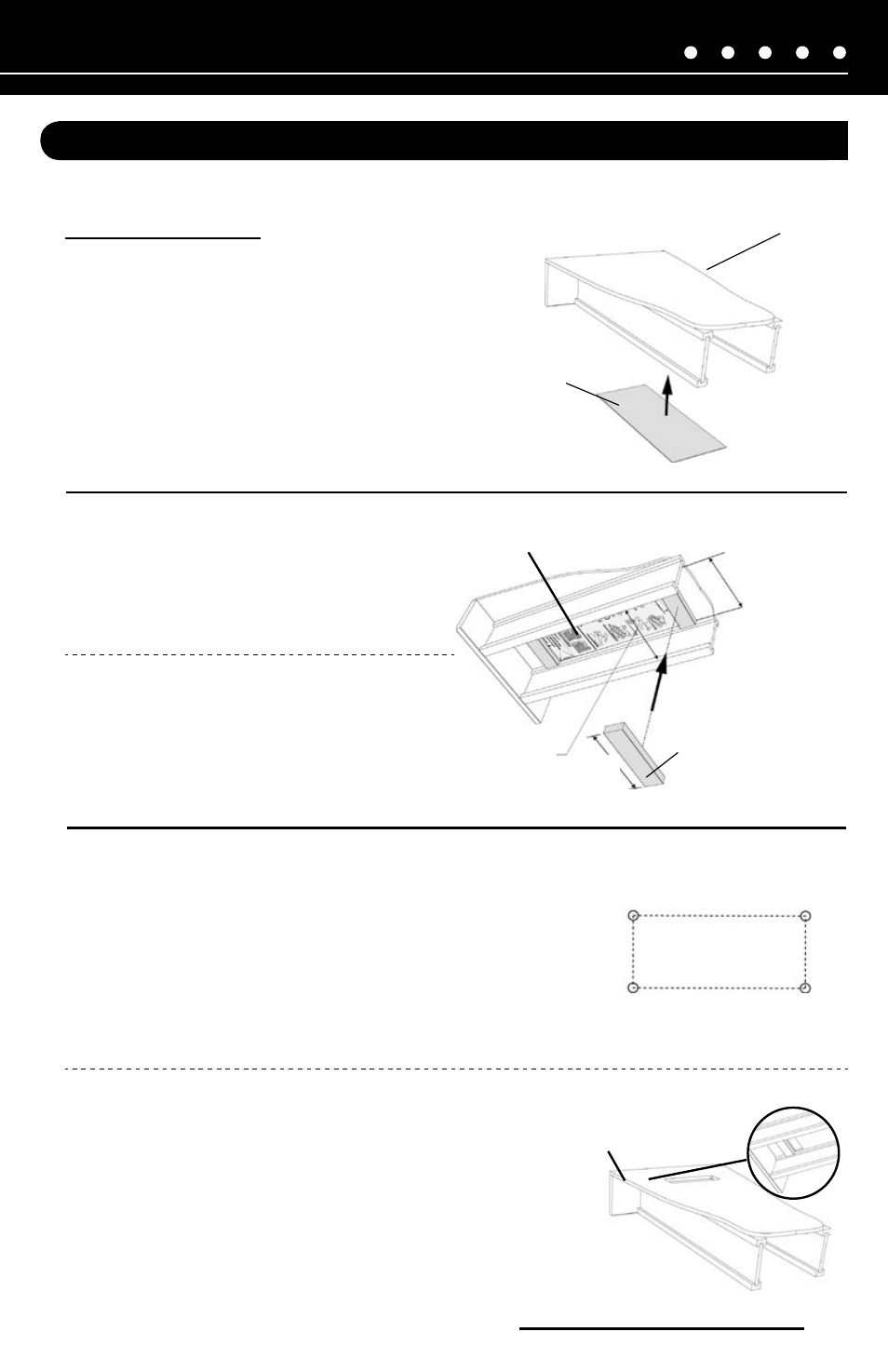

1. Use template to determine a suitable
installation location. Place the SW10JM
cardboard template in the desired location
making sure the template is level and
aligned correctly. You may want to staple
the template in place for added ease.
2a. Measure the width between the joists/
studs and cut two 2 X 4’s to match this
width. The 2 X 4’s will be used to cross
brace between joists.
2b. Position each 2 X 4 according to
template. Attach each 2 X 4 to the
floor joists using applicable local
building methods.
3a. Mark 4 hole locations from template. This
area will be used for the grille cutout.
3b. Cut thru sub-flooring (OSB, PLYWOOD,
ETC.) between marks using appropriate
tools.
SW10JM INSTALLATION – FLOOR APPLICATION
Floor
Template
Hole Cut-out
Bottom View
X Minimum
Width Needed
Template
X
2 x 4
X Minimum
Width Needed
➊
➋
➌
➍
Frame Cut-out
FLOOR APPLICATION – BEFORE FINAL FLOORING APPLIED
Pre-Construction
