4. Attach the supplied front and rear
brackets to the 2 x 4’s using the supplied
1.5" wood screws.
NOTE: REMOVE THE STOP BLOCK FROM THE
SW10JM PORT. THE STOP BLOCK IS INCLUDED
TO PREVENT THE SUBWOOFER FROM
DISENGAGING FROM BRACKETS UNTIL THE
GRILLE IS INSTALLED.
5. Place the SW10JM subwoofer into the
brackets aligning the attachment pins to
the slots in the brackets. Begin with the
ported end first.

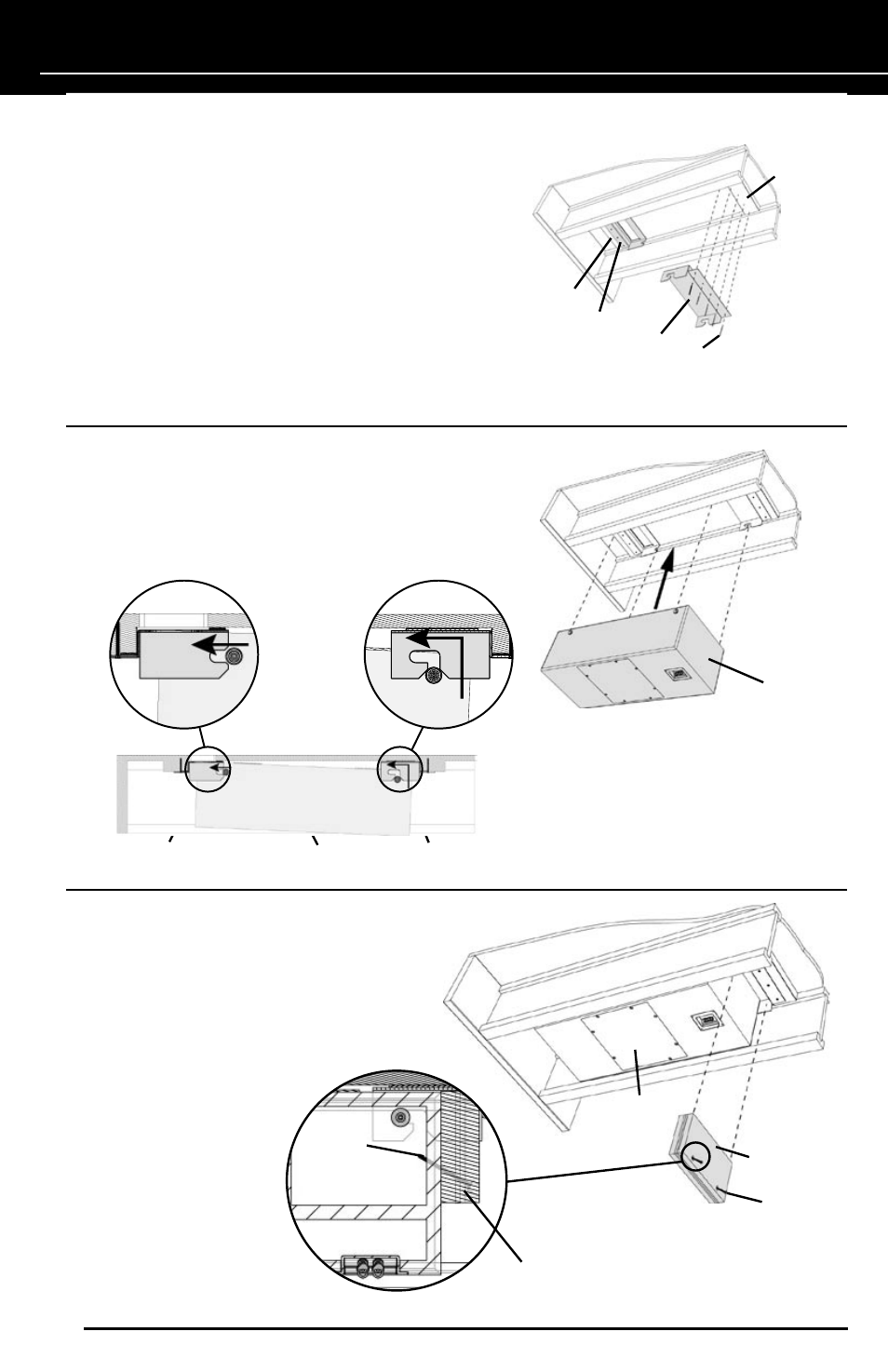

6. Install the stop block between the bracket
and cabinet at rear of cabinet as indicated
in drawing.
(CONTINUED ON NEXT PAGE)
Subwoofer
Stop Block
Screw
Stop Block
Screw
Subwoofer
Front Bracket Rear Bracket Subwoofer
Front Bracket
Rear Bracket
Screws
2 x 4
2 x 4
