Setup Manual for the DG834GV Integrated ADSL Modem and Wireless Router with Voice
Connecting the Router to the Internet 1-3
v1.0, February 2006

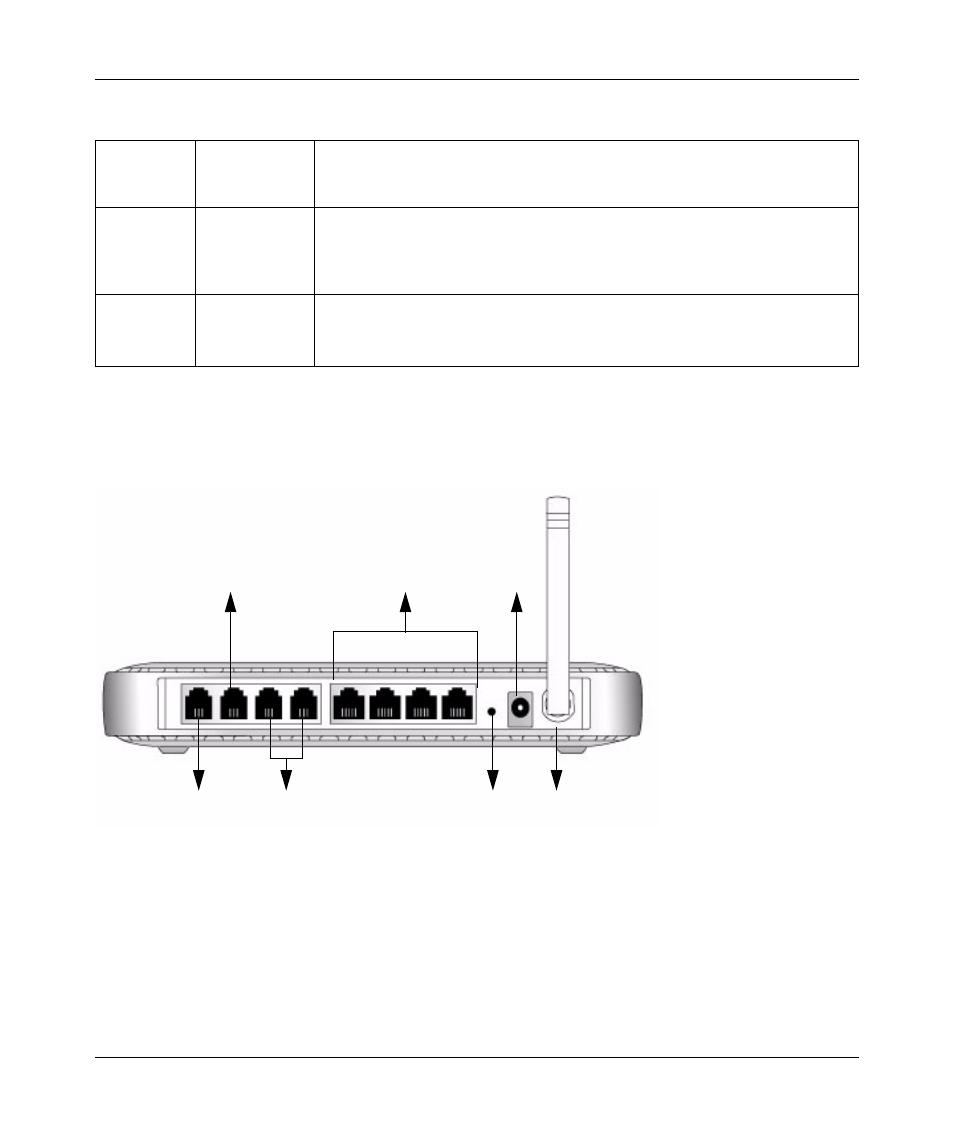

The ADSL Modem Wireless Router’s Rear Panel
The rear panel of the ADSL modem wireless router contains port connections.
Viewed from left to right, the rear panel contains the following elements:
1. RJ-11 ADSL port for connecting the router to a telephone wall jack via the ADSL port of a
phone splitter
2. RJ-11 PSTN port for connecting the router to the telephone wall jack via the phone port of a
phone splitter
5. Wireless
On (Green)
Blink (Green)
Off Wireless port is linked.
Data is being transmitted or received.
No wireless link.
6. Phone1
Phone2
On (Green)
Fast blink
Slow blink
Off Registered to SIP server.
Talking.
Off hook.
Phone not ready.
7. FXO/
PSTN
fallback
On (Green)
Blink
Off PSTN line detected.
Talking.
No PSTN line detected.
Figure 1-2
Table 1-1. LED Descriptions (continued)
1
2
3
4
5
6
7
