32 Chapter 3 Instant Internet 400 hardware installation
300867-G
Switches and connectors are located on the rear panel of your unit as follows:
• At the top are four slots (A through D).
• At the bottom are the network cable connection, two LEDs, the attachment
unit interface (AUI) connection, the configuration switches, the power plug
connection, and the on/off switch.

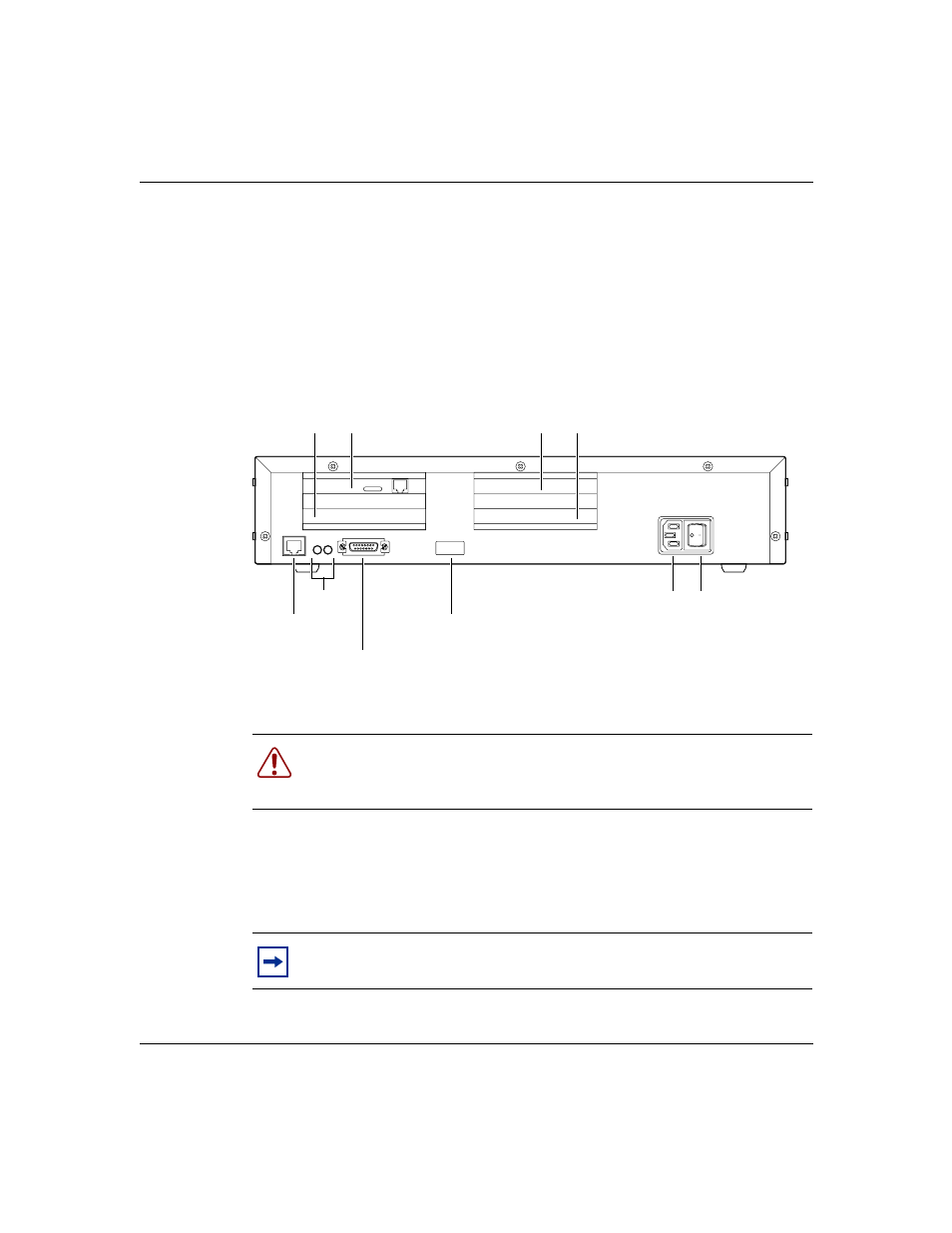

Figure 2 illustrates the rear panel of the unit.
Figure 2 Rear panel of the Instant Internet 400 unit
Interface cards
Depending on the configuration of your unit, you may have multiple interface
cards in slots A through D.
Warning: The Instant Internet unit contains a lithium battery. There is a
danger of explosion if the battery is replaced incorrectly. The battery
should be replaced only by factory authorized personnel.
Note: The interface card(s) in your Instant Internet unit may not look
exactly like those depicted in the illustrations.
8979EC
Slot C
Ethernet
connection
Configuration
switches
AUI
connection
LEDs
Slot D Slot A
On/Off
switch Power
plug
Slot B
