Nortec NHTC User Manual
Page 90
10-30
Page 82
2008-10-01
Unit Model
NH 005-020
NH 030
NH 045-100
NH 135-200
Distributor Model
ASD BSD
CSD
CSD
No. of Cylinders
1 1
1
2
No. of Outlets/Cylinder
1 1
1
2
OD of Cylinder Outlet (NHTC,P,B)
f" f"
f"
1¾"
OD of Cylinder Outlet (NHSC/DI)
1¾" 1¾"
1¾"
1¾"
Distributor
Model
Dimensions – in.(mm)
Minimum Duct
A
B
L
Length –
in. (mm)
D
ASD 12
2 (51)
1.75 (44)
10 (254)
12 (305)
ASD18
2 (51)
1.75 (44)
16 (406)
18 (457)
ASD 24
2.25 (57)
1.75 (44)
20 (508)
24 (609)
ASD 30
2.25 (57)
1.75 (44)
26 (660)
30 (762)
ASD 36
2.25 (57)
1.75 (44)
32 (813)
36 (914)
ASD 42
2.5 (64)
2 (51)
38 (965)
42 (1066)
ASD 48
2.5 (64)
2 (51)
44 (1118)
48 (1219)
ASD 54
2.5 (64)
2 (51)
50 (1270)
54 (1371)
ASD 60
3 (76)
2.5 (64)
56 (1422)
60 (1524)
ASD 66
3 (76)
2.5 (64)
62 (1575)
66 (1676)

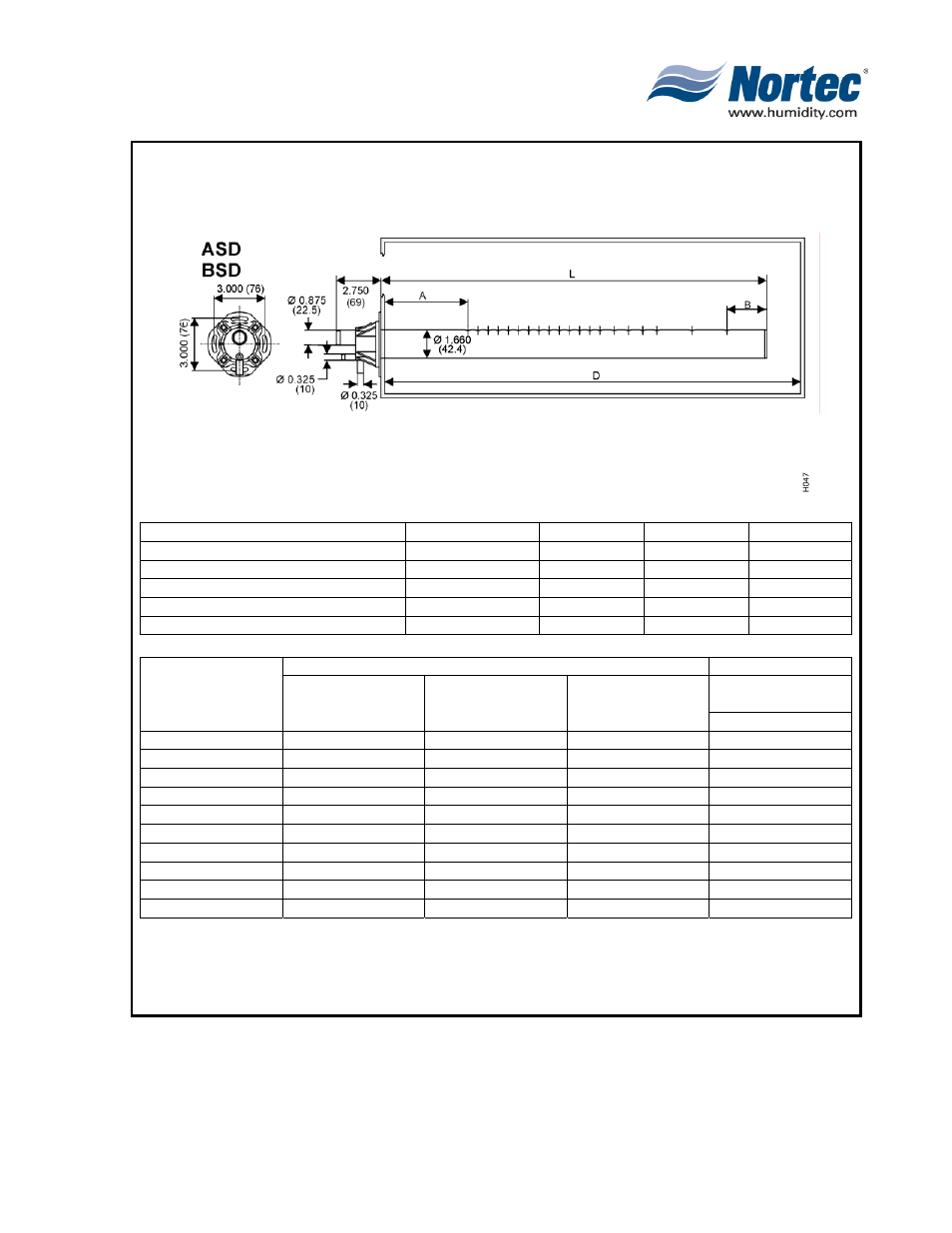

Figure 6. Distributor Dimensions (Sheet 1 of 3)
