(2) There is a selection of four types of
steam tubes. Each are capable of
distributing different capacities. To
select the steam tube for your
application refer to Table 17.
Type A 15 lbs/hr (7 kg/hr)
Type B 35 lbs/hr (16 kg/hr)
Type B+ 55 lbs/hr (25 kg/hr)
Type C 75 lbs/hr (34 kg/hr)
(3) The humidifiers maximum capacity
and SAM-e header will determine
the steam tube type required. The
selected header will determine
how many steam tubes are
required, refer to Tables 18, 19, 20
and 21. Remember to calculate
your condensate losses.

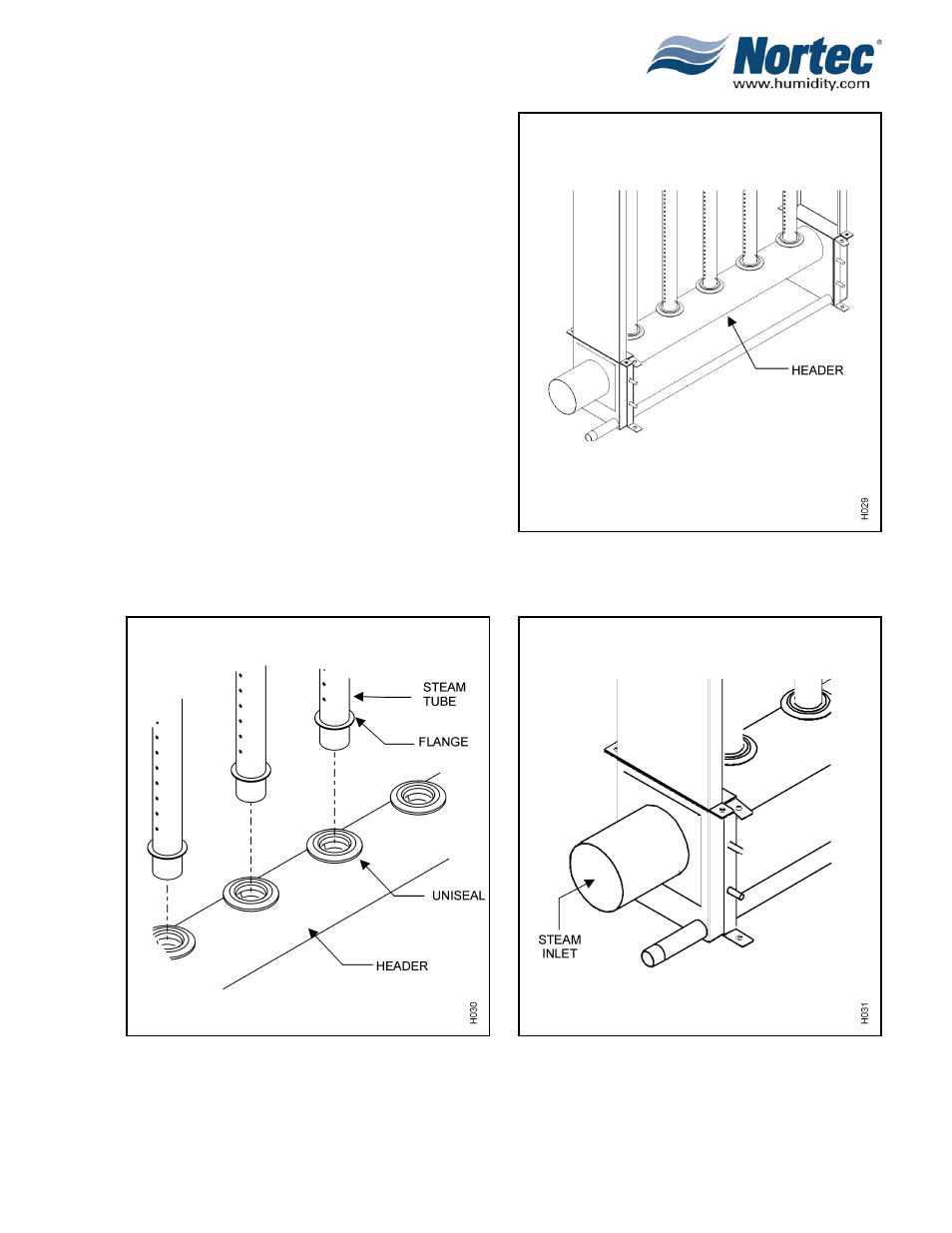

Figure 25. Steam Inlet Figure 24. SAM-e Tubes
Figure 23. SAM-e Header
