Nortec NHTC - Manual (Page 70)

10-10
Page 62
2008-10-01

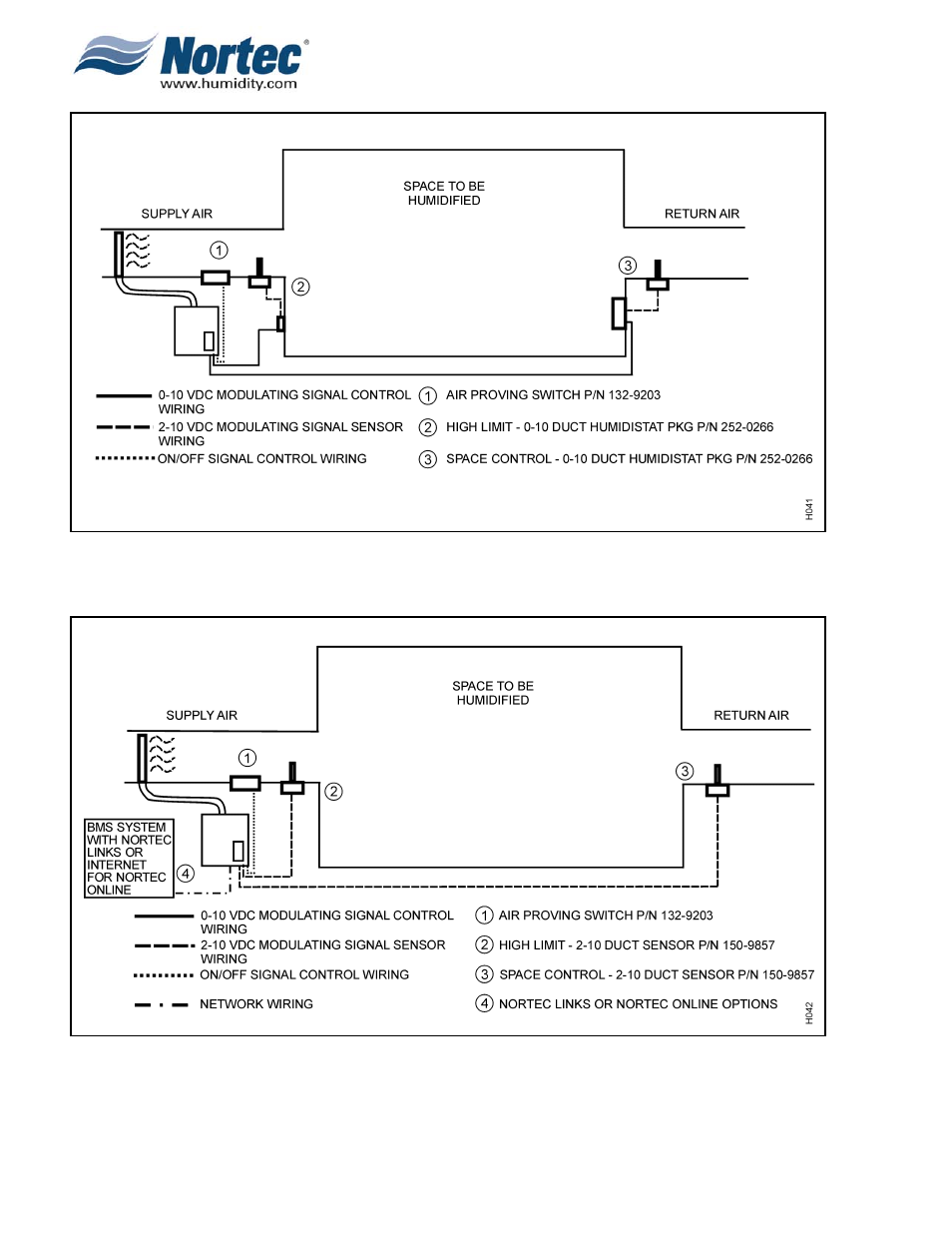

Figure 35. Humidifier Controlled by Air Proving, Modulating Duct Mounted High Limit and
Modulating Wall Mounted Return Air Sensor with Wall Mounted Controller
Figure 36. Humidifier Controlled by Air Proving, Duct Mounted High Limit Sensor and
Modulating Duct Mounted Return Air Sensor with Networking Option
