I.
SAM-e STEAM INLET CONFIGURATION SELECTION
(1) Atmospheric Steam (NH, GS, SE)
(a) The steam inlet, Figure 25, is determined by the selected humidifier. Refer to
submittals, Chapter 10-30 to determine the size of steam outlet required.
(b) For a typical SAM-e installation, see Figure 26.
J.
MINI SAM-e
(1) For the mini SAM-e installation, refer to Tables 18, 19, 20 and 21 for headers, tubes
and inlet configuration.
Table 17. SAM-e Tube Matrix
*In-Duct
Height
in. (cm)
TYPE A
15 lbs/hr
(7 kg/hr)
TYPE B
35 lbs/hr
(16 kg/hr)
TYPE B+
55 lbs/hr
(25 kg/hr)
TYPE C
75 lbs/hr
(34 kg/hr)
‘L’
Dimension
in. (cm)
In-duct
Optional
Mounting
Frame
Outside-
Duct
Optional
Mounting
Frame

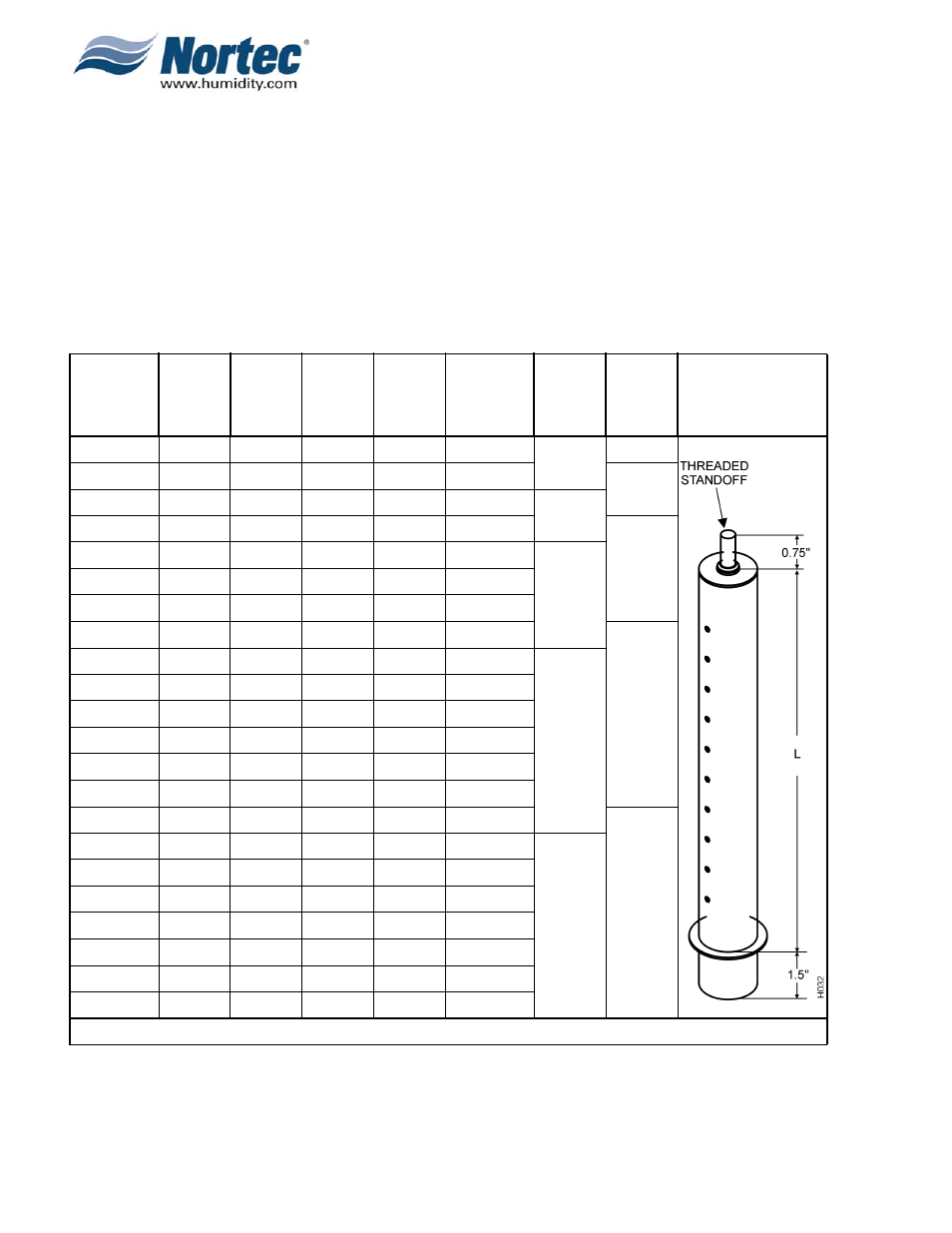

Steam Tube Profile
18 (45.7)
1503388
N/A
N/A
N/A
5.5 (14.0)
1504697
1504697
24 (61.0)
1503389
1503411
N/A
N/A
11.5 (29.2)
1503469
30
(76.2)
1503390 1503412 1509391
N/A
17.5
(44.5)
1503469
36
(91.4)
1503391 1503413 1509392 1503440 23.5
(59.7)
1503470
42
(106.7)
1503392 1503414 1509393 1503441 29.5
(74.9)
1503470
48
(121.9)
1503393 1503415 1509394 1503442 35.5
(90.2)
54
(137.2)
1503394 1503416 1509395 1503443 41.5
(105.4)
60
(152.4)
1503395 1503417 1509396 1503444 47.5
(120.7)
1503471
66
(167.6)
1503396 1503418 1509397 1503445 53.5
(136.9)
1503471
72
(182.9)
1503397 1503419 1509398 1503446 59.5
(151.1)
78
(198.1)
1503398 1503420 1509399 1503447 65.5
(166.4)
84
(213.4)
1503399 1503421 1509400 1503448 71.5
(181.5)
90
(228.6)
1503400 1503422 1509401 1503449 77.5
(196.9)
96
(243.8)
1503401 1503423 1509402 1503450 83.5
(212.1)
102
(259.1)
1503402 1503424 1509403 1503451 89.5
(227.3)
1503472
108
(274.3)
1503403 1503425 1509404 1503452 95.5
(242.6)
1503472
114 (289.6)
1503404
1503426
1509405
1503453 101.5 (257.8)
120
(304.8)
1503405 1503427 1509406 1503454 107.5
(273.1)
126
(320.0)
1503406 1503428 1509407 1503455 113.5
(288.3)
132
(335.3)
1503407 1503429 1509408 1503456 119.5
(303.5)
138
(350.5)
1503408 1503430 1509409 1503457 125.5
(318.8)
144
(365.8)
1503409 1503431 1509410 1503458 131.5
(334.0)
NOTE: *Add 6" (15.2 cm) to In-Duct Height for Outside-Duct Mounting of Header.
