Figure b-2. 25-pin d-sub trigger connector, Camera link cables, Secti – National Instruments PXI-1428 User Manual
Page 35
Appendix B
Cabling
B-2
ni.com

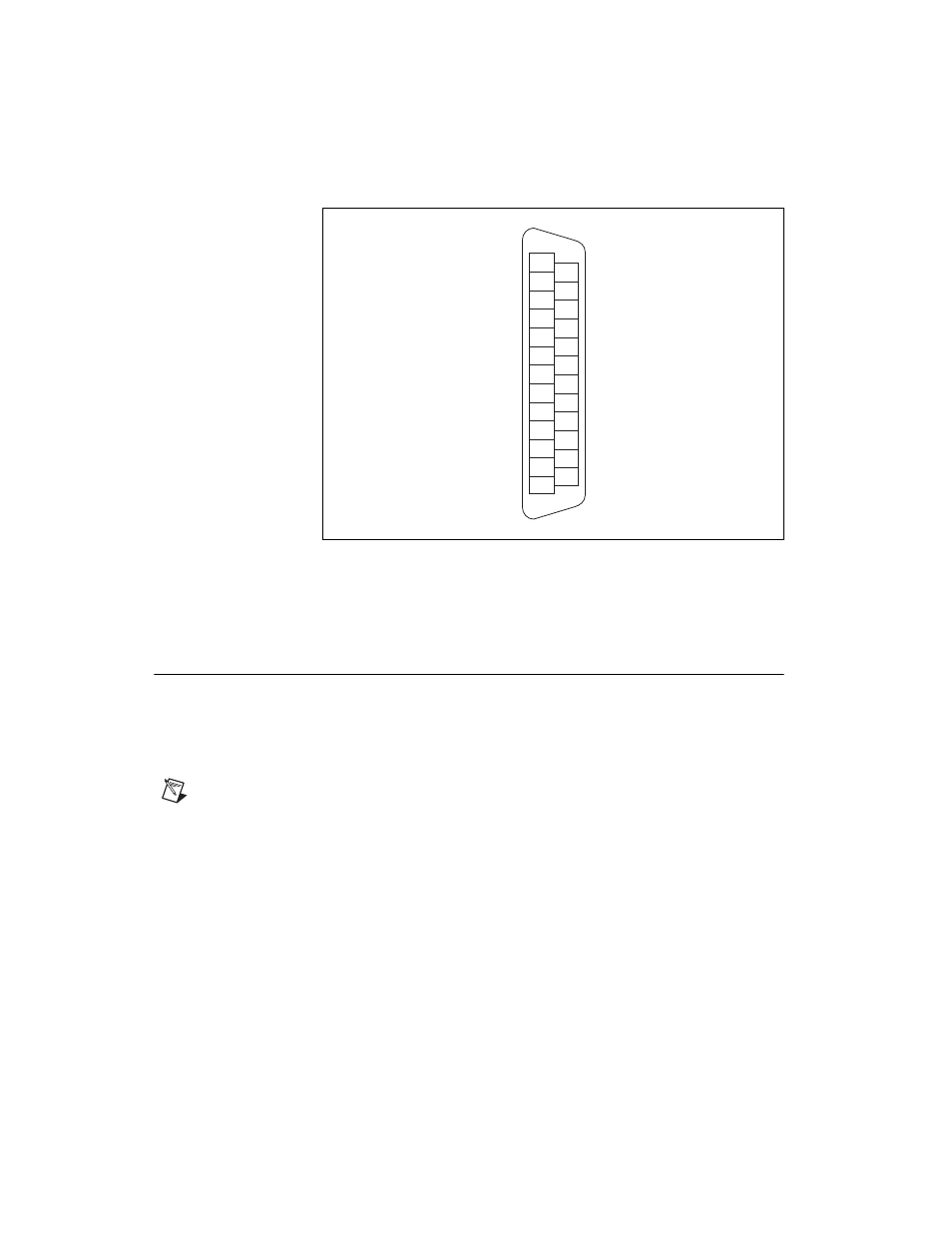

Figure B-2. 25-Pin D-SUB Trigger Connector
For information about additional connector pin assignments, refer to the
section of Chapter 4,
.
Camera Link Cables
Use a 3M Camera Link cable to connect your camera to the MDR 26-pin
connector on the IMAQ 1428 device. Camera Link cables consist of
two MDR-26 male plugs linked with a twin-axial shielded cable and
are available in two shell configurations.
Note
National Instruments recommends purchasing a Camera Link cable. Building your
own cable is not recommended due to the high-speed signaling on the Camera Link
interface.
For more information on Camera Link cables, refer to the Specifications
of the Camera Link Interface Standard for Digital Cameras and Frame
Grabbers manual. This manual is available on several Web sites,
including the Automated Imaging Association site at
www.machinevisiononline.org
.
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
7
8
9
10
11
12
13
GND
GND
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
TTL_TRIG (3)
TTL_TRIG (2)
TTL_TRIG (1)
RESERVED
TTL_TRIG (0)
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
GND
GND
GND
RESERVED
