3.3 Front panel indicator lights
Six indicator lights have been grouped into three groups in the front
panel:
D STA
D DSL
D LAN
OK EXIT
DNT2M
DSR DCD RTS CTS
ERR COL INA
OK LNK RX TX ACT
STA DSL LAN

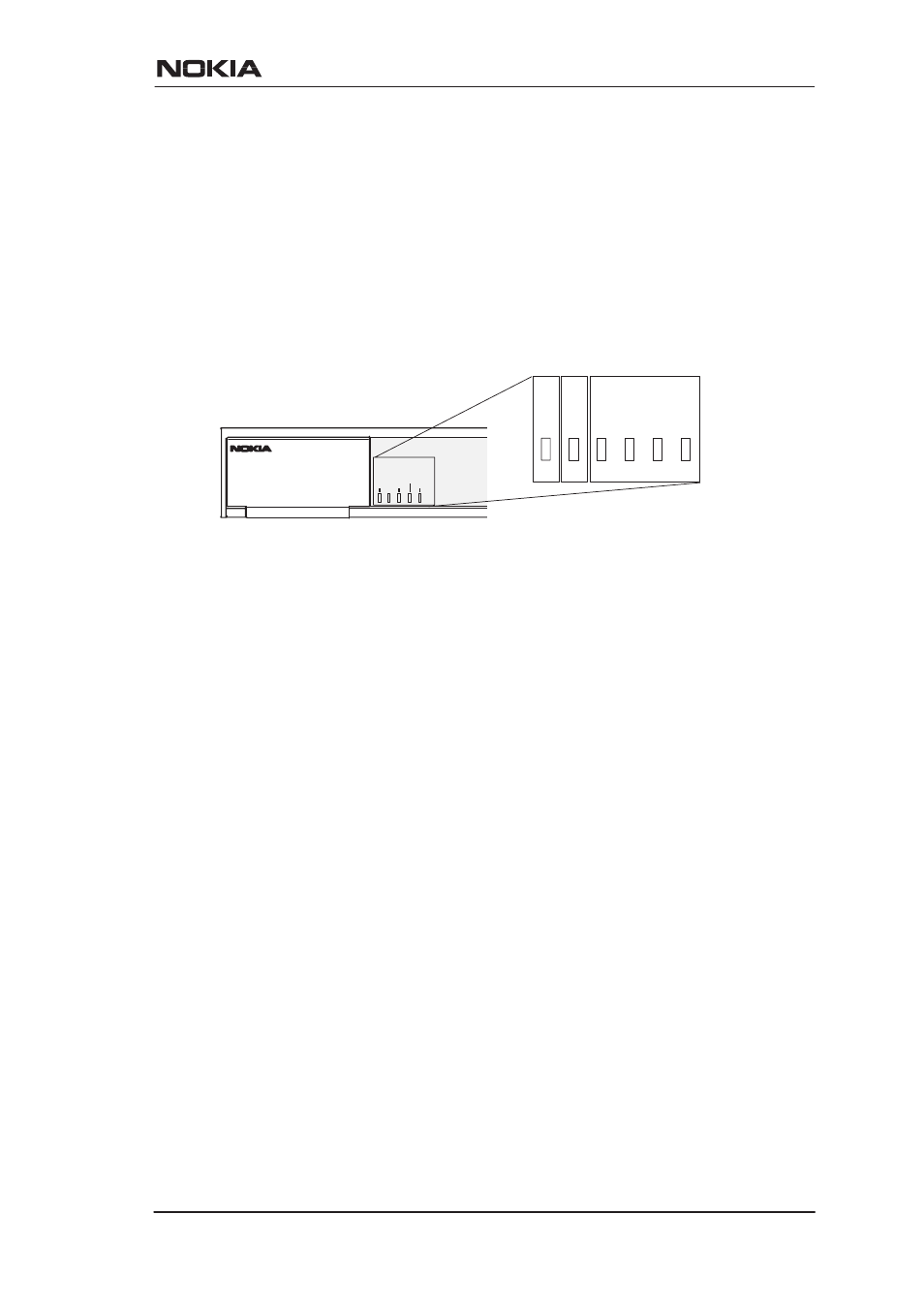

Figure 3-3 Front panel indicator lights
STA indicator
D Err (red): There is a malfunction in the unit. Switch power off and
on again. If this does not help send the unit for repair.
D OK (green): Unit is functional
DSL indicator (ADSL line status)
D INA (red): ADSL line is inactive (no connection). Blinking light
indicates that the ADSL link is training.
D ACT (green): ADSL line is active (connection).
LAN indicators
D COL (red): Blinking light indicates collisions on the Ethernet.
D LNK (green): Lit if the Ethernet connection is OK.
D Rx (green): Blinking light indicates that M10 is receiving Ethernet
packets.
D Tx (green): Blinking light indicates that M10 is transmitting
Ethernet packets.
