NETGEAR Cable/DSL ProSafe Firewall FR328S - Manual (Page 34)

FR328S ProSafe Firewall with Dial Back-Up Reference Manual v2
3-14 Connecting the Firewall to the Internet
M-10207-01, Reference Manual v2
b. From the Setup Basic Settings menu, click Serial Port.

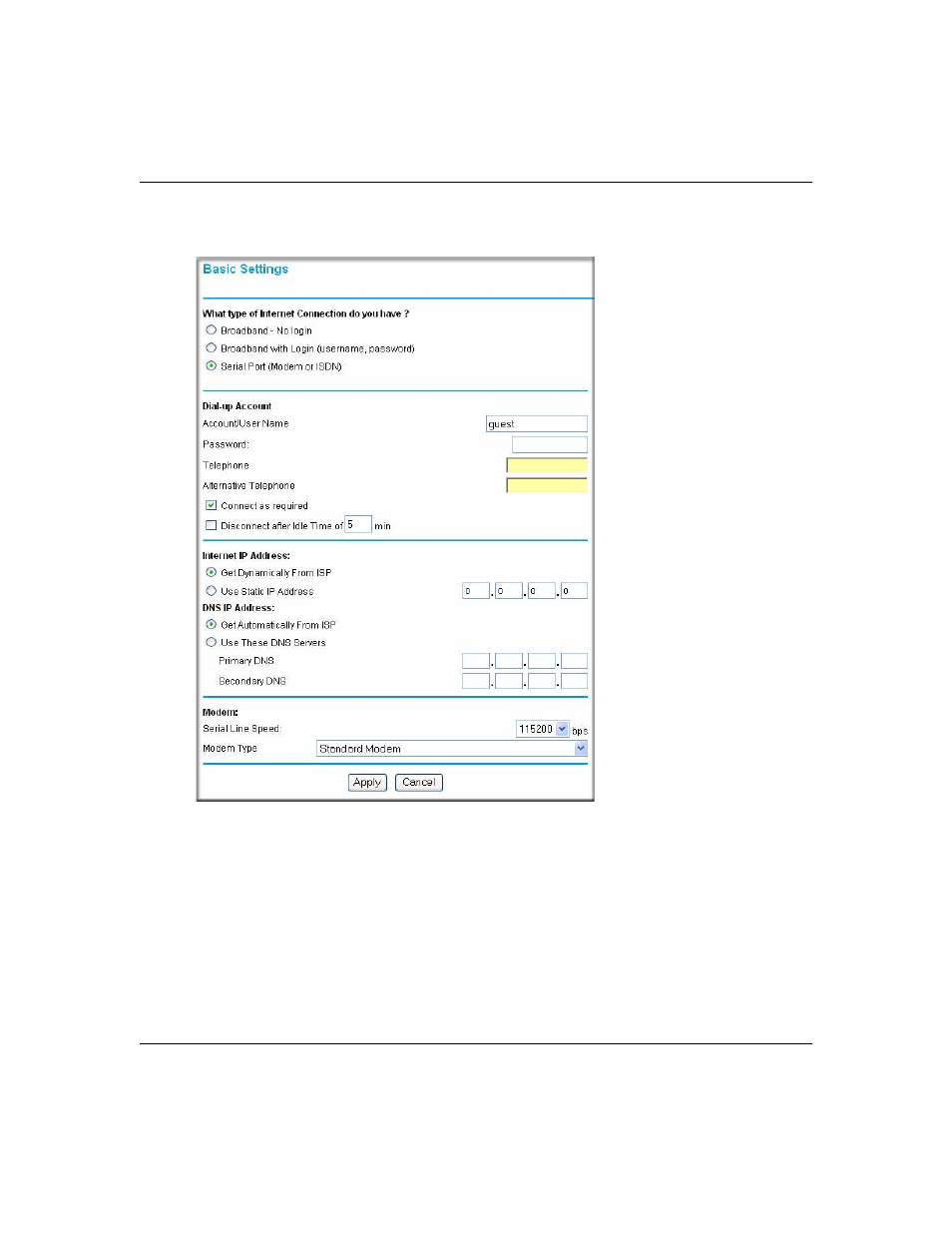

Figure 3-11: Serial Internet Connection configuration menu
c. Fill in the ISDN or analog ISP Internet configuration parameters as appropriate:
• For a Dial-up Account, enter the Account information. Check “Connect as required”
to enable the firewall to automatically dial the number. To enable Idle Time
disconnect, check the box and enter a time in minutes.
• To configure the Internet IP settings, fill in the address parameters your ISP provided.
d. Configure the Modem parameters.
