NI 5422 Specifications 30 ni.com
Power

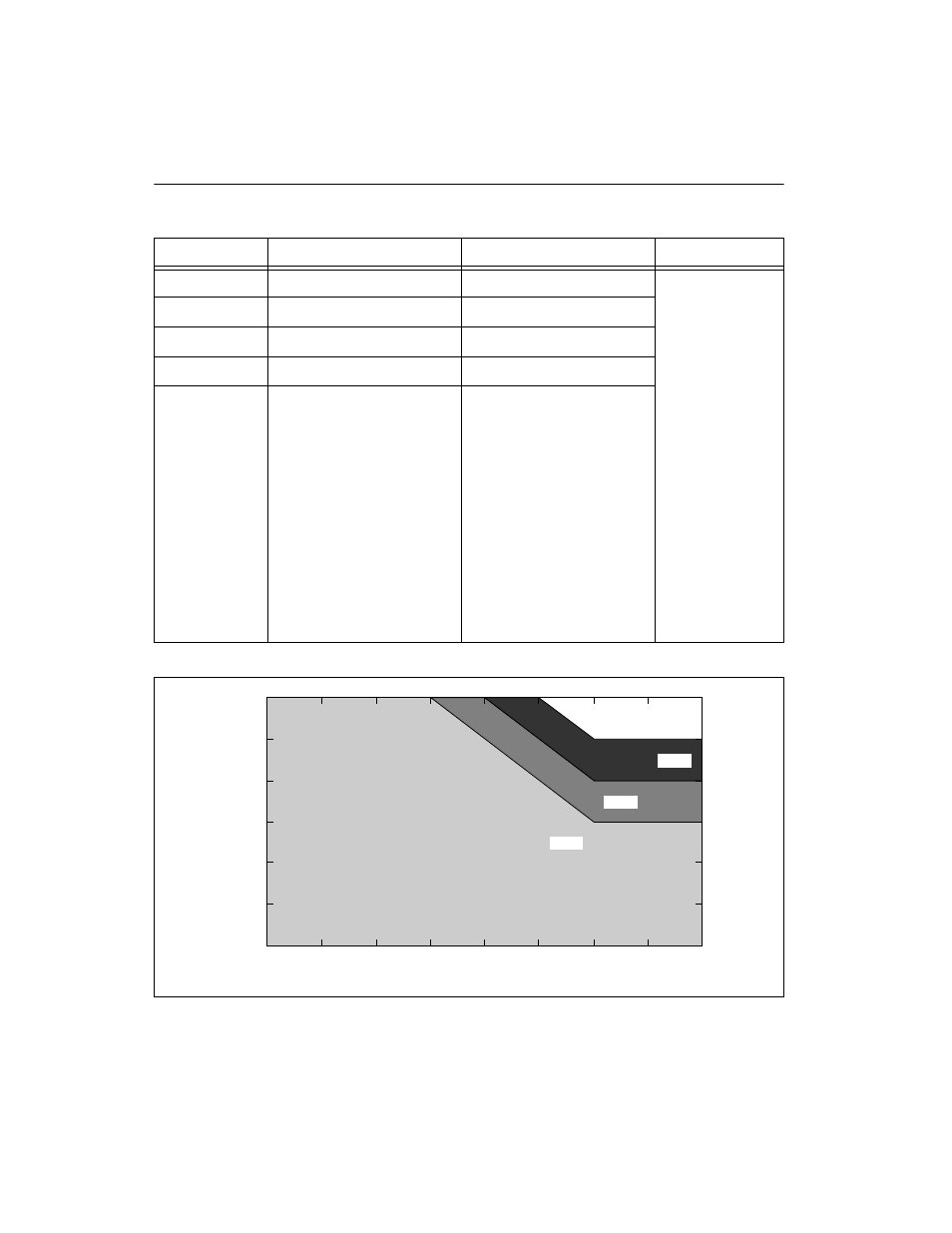

Figure 13. 5 V Current Versus Frequency and Amplitude
Table 12.
Specification Typical Operation Overload Operation Comments
+3.3 VDC 2 A 2 A Typical
Operation is Sine
Output, with
Analog Filter,
50
Ω termination.
200 MS/s High
Resolution
Sample Clock.
Digital Pattern
enabled and
terminated,
Sample Clock
routed to PFI 0
and terminated.
Overload
Operation occurs
when CH 0 is
shorted to
ground.
+5 VDC Refer to Figure 13 2.7 A
+12 VDC 0.46 A 0.46 A
–12 VDC 0.01 A 0.01 A
Total Power 12.2 W + 5 V * 5 V Current 25.7 W
Frequency (MHz)
Sine Amplitude (Vpp into 50
Ω
)
0
2
4
6
8
10
12
0 10 20 30 40 50 60 70 80
2.6 A
2.3 A
2.0 A
Not Recommended
