YML754 Rev1 NB5Plus4/W User Guide
www.netcomm.com.au 15
NB5Plus4W Antenna Instructions
Before continuing with the Hardware installation, you may need to connect the
Antenna
1. The antenna has a retaining nut which must be screwed into the SMA connector
on the back of the modem. Place the screw retaining nut over the antenna con-
nection on the rear of the NB5Plus4W and turn it clockwise.
Note: Do not over-tighten the attaching nut - but do make sure that you have
screwed it all the way to its end.
2. Bend the antenna to a 90o angle.
Note: Please note that you may have to rotate the complete antenna assembly to
do this and have the antenna pointing vertically.
Screw retaining
nut clockwise
over the antenna
connection

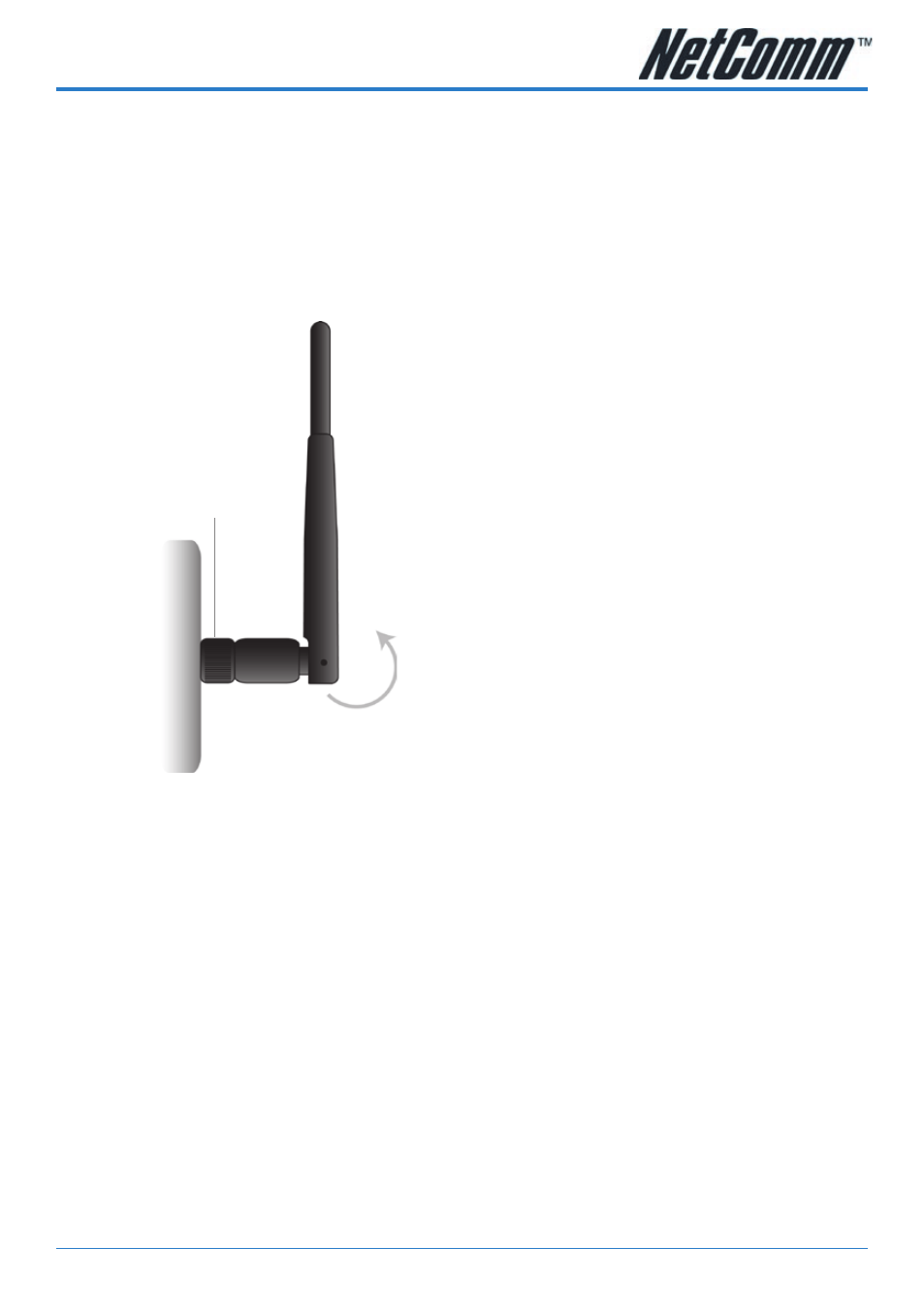

Bend antenna
to a 90 o angle
