Rear panel
DN0445814
© Nokia Corporation
21 (60)
Issue 2-0 en
Nokia Proprietary and Confidential
4.3
Terminal interface

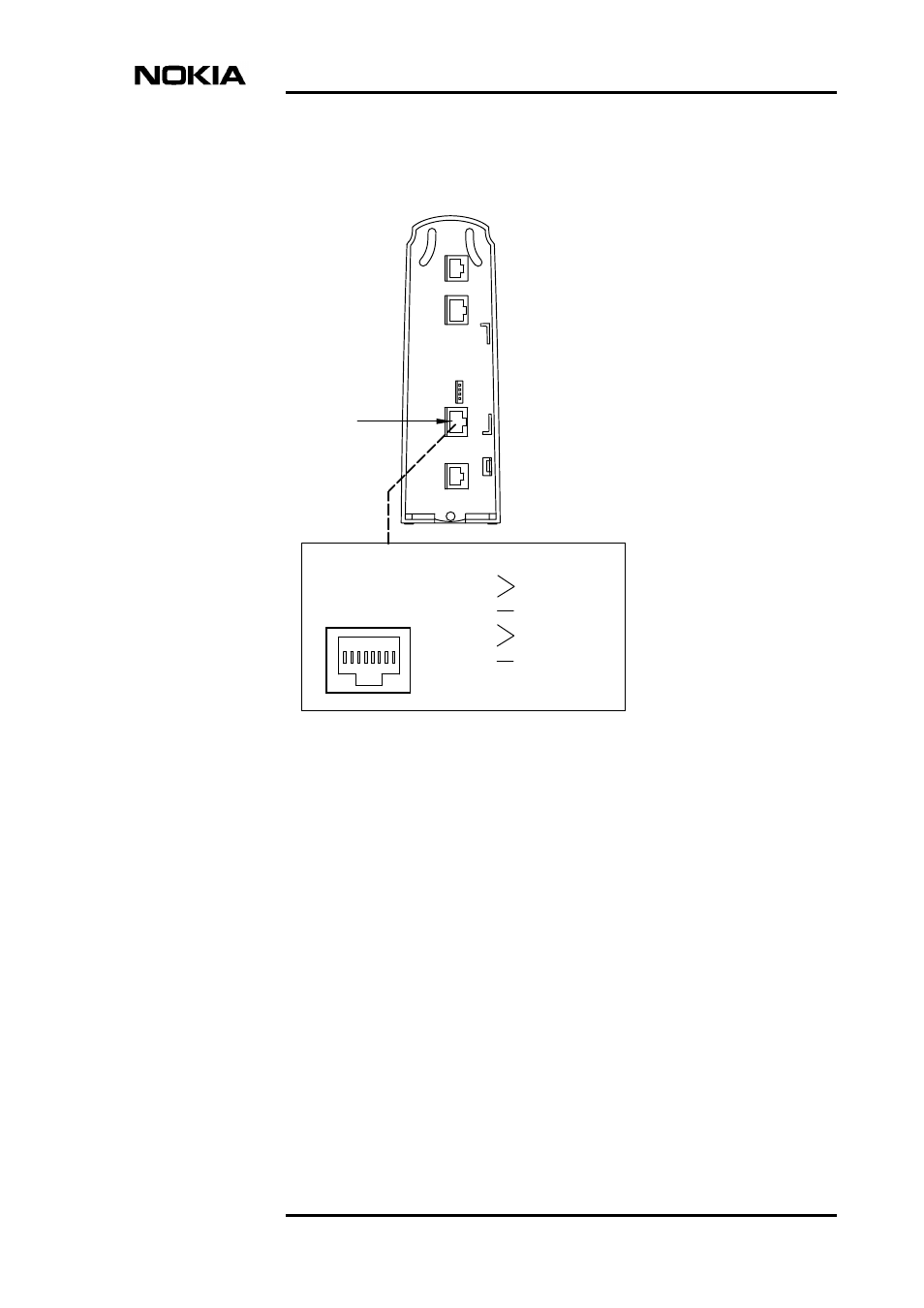

Figure 13.
Symmetrical G.704/2M interface
G.704/2M
1
8
G.704/2M
1.
TX (OUT)
2.
3.
SHIELD
4.
RX (IN)
5.
6.
SHIELD
7.
8.
8-pin modular jack,
RJ-45
Not connected
Not connected
-
Pin Data interface
