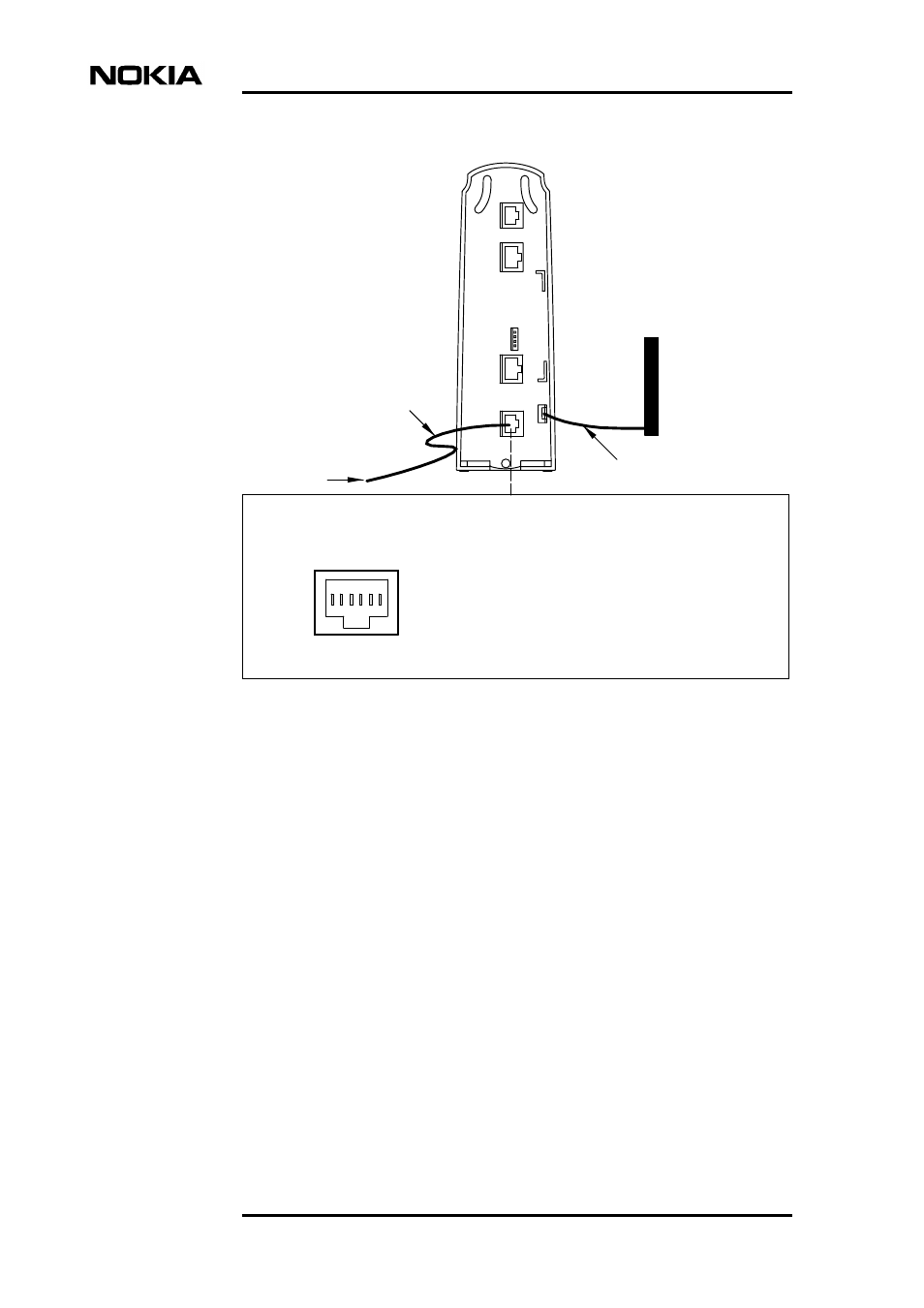

Figure 10.
Remote power feed through line
Earthing bar
1.0 mm wire
2
DSL Line
cable
1
-
6
6-pin modular jack, RJ-11
DSL Line
1.
2.
3.
Not connected
4.
Not connected
5.
6.
Pin
Line 1a
Line interface
Line 1b
Line 2a (not in use in 2-w mode)
*)
Line 2b (not in use in 2-w mode)
*)
*)
not connected in T65690.01
Remote power
supply
