Chapter 2 Installation and Configuration
© National Instruments Corporation 2-7 NI PXI-1056 User Manual

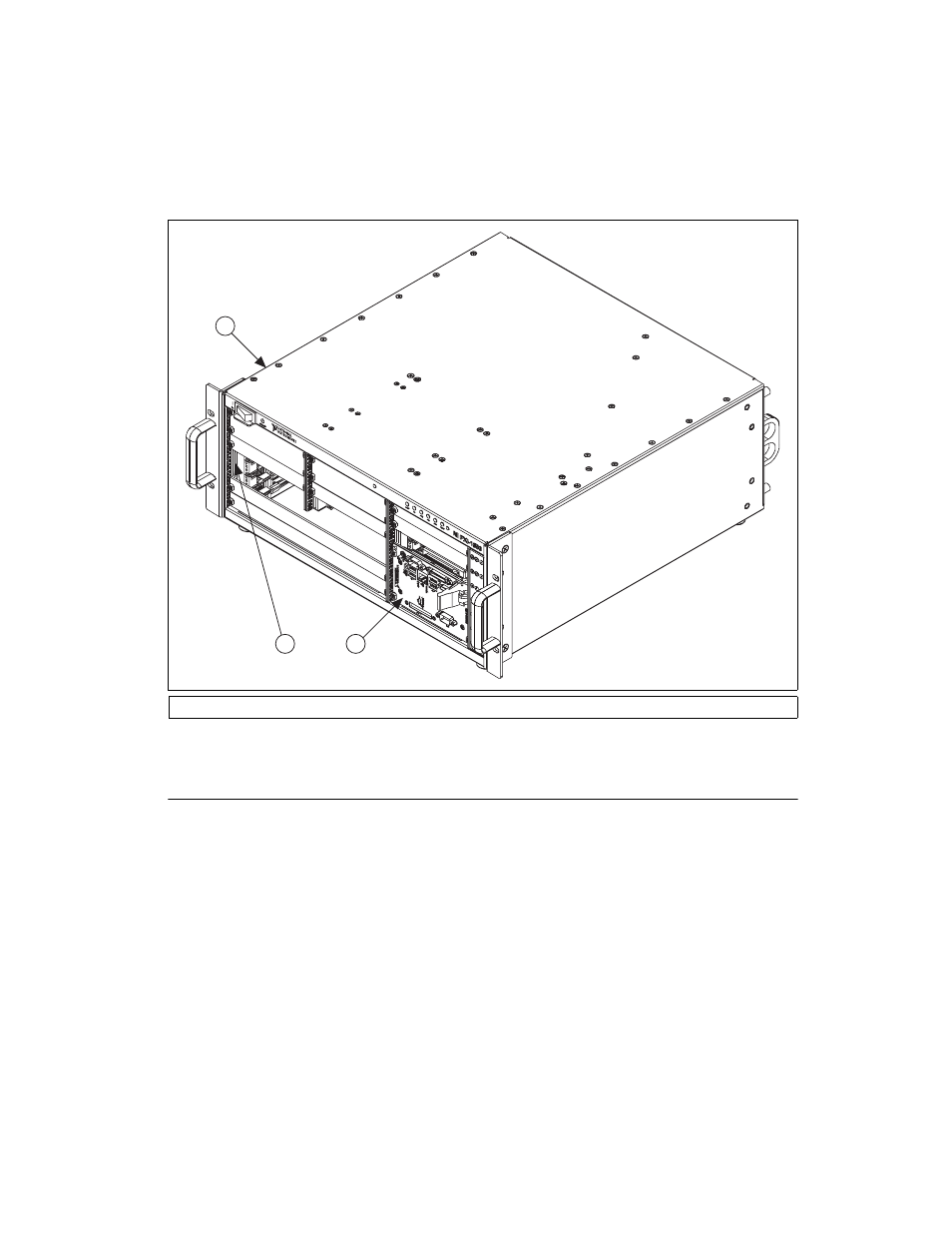

Figure 2-3. NI PXI Controller Installed in a PXI-1056 Chassis
Installing PXI Modules
Complete the following steps to install a module.
1. Make sure the power switch is in the Off (Standby) position.
2. Install a module into a chassis slot by first placing the module card
edges into the front module guides (left and right), as shown in
Figure 2-4. Slide the module to the rear of the chassis, making sure that
the injector/ejector handle is pushed down as shown in Figure 2-2.
3. When you begin to feel resistance, push up on the injector/ejector
handle to fully inject the module into the chassis frame. Secure the
module front panel to the chassis using the module front-panel
mounting screws.
1 PXI-1056 Chassis 2 Injector/Ejector Rail 3 NI PXI Controller
1
3 2
