Set the Feed Angle

The feed angle of the wireframe input stacker
depends on the type of material you're run-
ning:

•

Heavy Material—set to a low angle (down)

•

Standard material—set to the center (45
degree angle)

•

Light material —set to a high angle (up)

To make the adjustment:
1. Loosen the lock knob on the wireframe

slide.

2. Move the wireframe up or down as re-

quired.

3. Tighten the lock knob to secure the

wireframe.

Center the Wireform under the
Material

1. Place a sample piece of material in the

feed area, up against the rear wall.

2. Push down on the wireframe lock lever

to free the wireframe slide.

3. Center the wireframe under your sample

piece.

4. Pull up on the lock lever to secure the

wireframe.

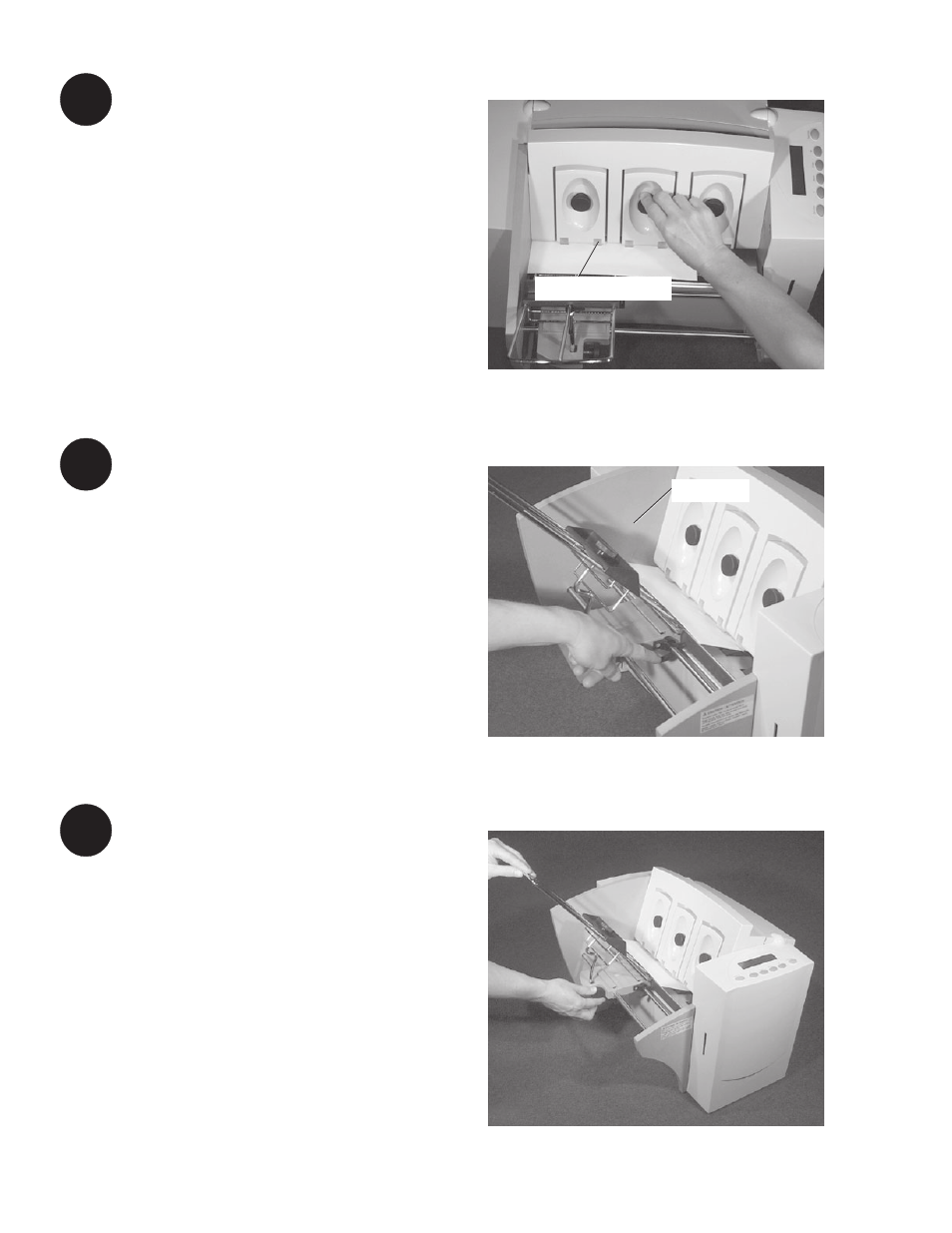

Set the Separator Gap

1. Loosen the lock knobs to unlock all three

H-Blocks.

2. Lift the blocks to their highest position

and
lock in place.

3. Place a sample piece of material between

the separator fingers (the lower section of
the
H-Blocks) and the feed roller.

4. Lower only the H-Blocks that come in

direct contact with the material and let
them touch the material.

5. Lock each H-Block in place.

Separator Fingers

Rear Wall
