Additional Information 09
74
En
General
System .............................................. DVD Player
Power requirements .......... 220–240 V, 50/60 Hz
Power consumption .................................... 14 W
Power consumption (standby) ....................... 0.4 W
Weight ......................................................... 2.7 kg
Dimensions ....... 420 (W) x 69 (H) x 278 (D) mm
Operating temperature .............. +5°C to +35°C
Operating humidity ............................ 5% to 85%
(no condensation)
S-Video output
Y (luminance) - Output level .......... 1 Vp-p (75
Ω)
C (color) - Output level ........... 286 mVp-p (75
Ω)
Jack .................................................. S-Video jack
Video output
Output level .................................... 1 Vp-p (75
Ω)
Jack ....................................................... RCA jack
AV connector output

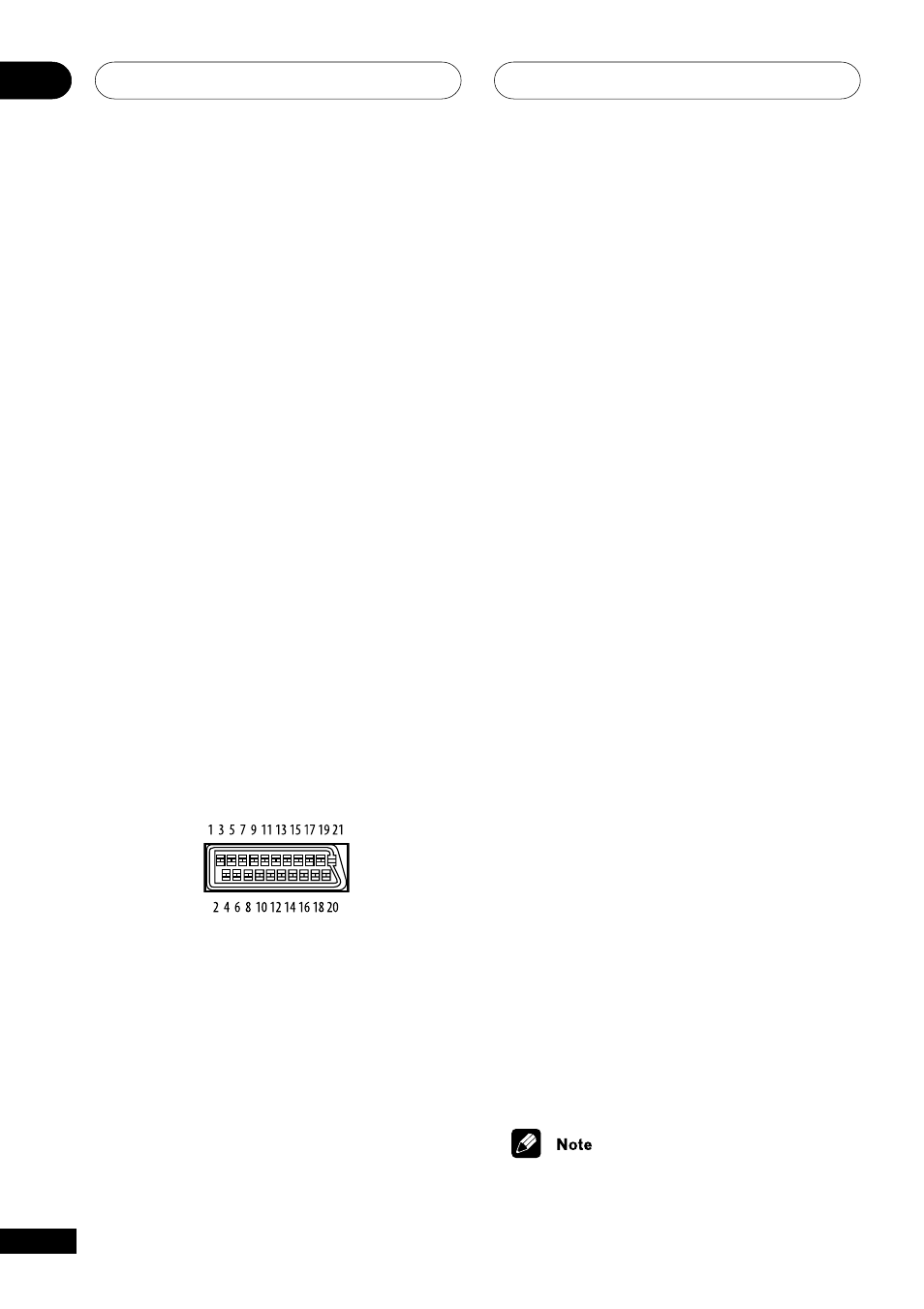

AV Connector (21-pin connector assignment)
AV connector output ............... 21-pin connector
This connector provides the video and audio
signals for connection to a compatible colour
TV or monitor.
Audio output (1 stereo pair)
Output level ....................... During audio output
200 mVrms (1 kHz, –20 dB)
Number of channels .......................................... 2
Jacks ..................................................... RCA jack
Audio output (multi-channel / L, R, C,
SW, LS, RS)
Output level ....................... During audio output
200 mVrms (1 kHz, –20 dB)
Number of channels .......................................... 6
Jacks ..................................................... RCA jack
Digital audio characteristics
Frequency response
........................... 4 Hz to 44 kHz(DVD fs: 96 kHz)
............. 4 Hz to 88 kHz (DVD-Audio fs: 192 kHz)
S/N ratio .................................................... 118 dB
Dynamic range ......................................... 108 dB
Total harmonic distortion ....................... 0.001 %
Wow and flutter .............. Limit of measurement
(0.001% W. PEAK) or lower
Digital output
Optical digital output ........... Optical digital jack
Coaxial digital output ........................... RCA jack
Other terminals
Control in .................................... Minijack (3.5 ø)
Control out .................................. Minijack (3.5 ø)
Accessories
Stereo audio cable ............................................. 1
Video cable ......................................................... 1
Power cable ........................................................ 1
Remote control ................................................... 1
AA/R6P dry cell batteries .................................. 2
Operating Instructions ...................................... 1
Warranty card ..................................................... 1
• The specifications and design of this
product are subject to change without
notice, due to improvement.
Specifications
PIN no.
1 ................ Audio 2/R out
3 ................. Audio 1/L out
4 ............................... GND
7 .............................. B out
8 ............................. Status
11 ............................. G out
15 ..................... R or C out
17 ............................. GND
19 ........ Video out or Y out
21 ............................. GND
