Pioneer VRD1160-A - Manual (Page 12)

Connecting Up 02
12
En
Using other types of video
output
This player has standard (composite),
S-video and component video outputs. The
main difference between them is the quality
of the picture.
S-video delivers a better picture than
standard composite video, while component
video gives better picture quality still. The
variety of outputs also gives you the flexibility
of connecting your particular equipment
using the best connection type available.

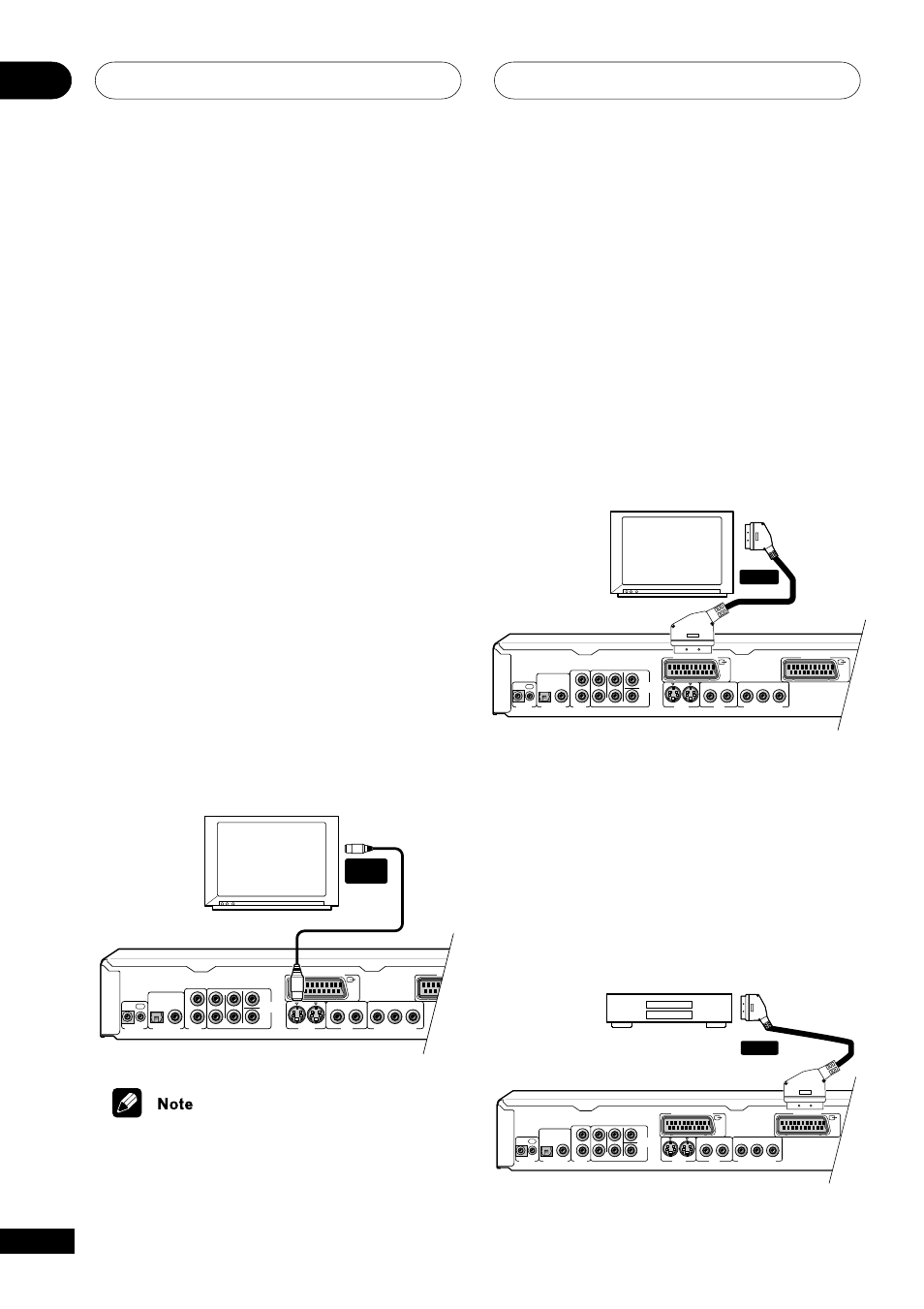

Connecting using an S-video
output
You can use the S-video output instead of the
VIDEO OUT jack to connect this player to
your TV (or other equipment).
1 Use an S-video cable (not supplied)
to connect the S-VIDEO OUTPUT to an
S-video input on your TV, monitor or
AV receiver.
Line up the small triangle above the jack with
the same mark on the plug before plugging
in.
DIGITAL AUDIO
OUT
AUDIO
OUT
(2ch)
CONTROL
OPTICAL COAXIAL
IN OUT
L
R
L
R
AUDIO OUT
(5.1ch)
CENTER
SUB
WOOFER SURROUND FRONT S-VIDEO
OUT
VIDEO
OUT
COMPONENT VIDEO OUT
P B P R Y 1 1 2 2
AV CONNECTOR 1 (RGB)-TV AV
TV
S-VIDEO
INPUT
• If you connect both S-video jacks, but
one of the connected components is not
S1/S2 compatible, the automatic aspect
ratio switching will not work with either
connected component.
Connecting using the AV
connector output
If your TV has a SCART-type AV input, you
can use a SCART cable to connect this
player to your TV. This type of connection
carries both the sound and the picture, so
there’s no need to connect up the
AUDIO
OUT L/R and VIDEO OUT jacks.
¶ Use a SCART cable (not supplied) to
connect the AV CONNECTOR 1 (RGB)-TV
to an AV input on your TV.
DIGITAL AUDIO
OUT
AUDIO
OUT
(2ch)
CONTROL
OPTICAL COAXIAL
IN OUT
L
R
L
R
AUDIO OUT
(5.1ch)
CENTER
SUB
WOOFER SURROUND FRONT S-VIDEO
OUT
VIDEO
OUT
COMPONENT VIDEO OUT
P B P R Y 1 1 2 2
AV CONNECTOR 1 (RGB)-TV AV CONNECTOR 2
TV
SCART
This connector can output standard (com-
posite), S-video or RGB component video.
The default setting is standard, which should
work with all TVs. Consult the manual that
came with your TV to see if you can use one
of the higher quality settings. See
page 51
for how to change the video output.
¶ Use a SCART cable (not supplied) to
connect the AV CONNECTOR 2 to an AV
output on the VCR, SET TOP BOX etc.
DIGITAL AUDIO
OUT
AUDIO
OUT
(2ch)
CONTROL
OPTICAL COAXIAL
IN OUT
L
R
L
R
AUDIO OUT
(5.1ch)
CENTER
SUB
WOOFER SURROUND FRONT S-VIDEO
OUT
VIDEO
OUT
COMPONENT VIDEO OUT
P B P R Y 1 1 2 2
AV CONNECTOR 1 (RGB)-TV AV CONNECTOR 2
VCR or SET TOP BOX etc.
SCART
The AV CONNECTOR 2 only outputs
composite video.
