DIRECTION
Direction programs the horizontal display position of the Direction label (N, NW, NE, …).
NOTE: For direction to be accurate, the azimuth zero must be set to magnetic north.
NOTE: Direction display is not available while you are programmming or running a pattern.
The following settings are available for the Direction label:
Off – Label is not displayed.
Left – Label is displayed on the left-hand side of the screen.
Center – Label is displayed in the center of the screen.
Right (default) – Label is displayed on the right-hand side of the screen.
To program the horizontal label position for Direction:
1. Program preset 95 (28). The main menu appears.
2. Position the cursor (>) beside Other.
3. Press the Iris Open button to enter the Other menu.
4. Position the cursor (>) beside Az/El/Direction.
5. Press the Iris Open button to enter the Az/El/Direction menu.
6. Position the cursor (>) beside Direction.
7. Press the Iris Open button. The cursor moves to the right.
8. Move the joystick up or down to view the available selections.
9. SELECT – Press the Iris Open button to make a selection.
CANCEL – Press the Iris Close button to cancel a selection.
Exit

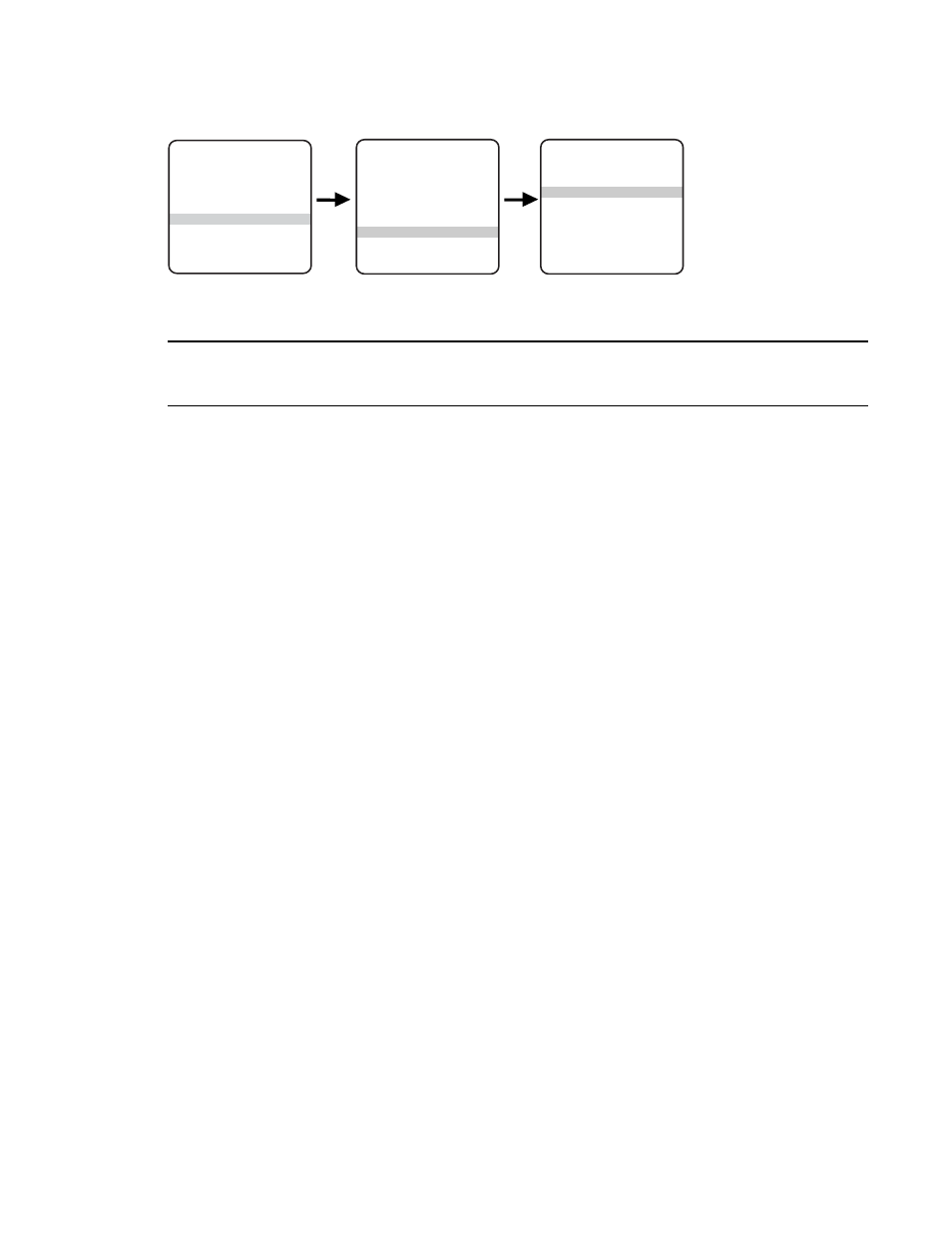

MAIN MENU
Proportional pan On
Park time minutes 0
Scan Speed deg/s 25
Pattern Length 1.5 min
Spd Profile
Exit
Other Menu Az/El/Direction
Set Azimuth Zero
Az/El
Az/El Line
Direction
Direction Line
Zoom
Zoom Line
Disp Duration
Exit
