DC 9V IN DATA MODE
RISK OF ELECTRIC
SHOCK. DO NOT OPEN
RISQUE DE CHOCS ELECTROUES
NE PAS OUVRIR
0 9 8 7 6 5 4 3 2 1
(1 (2 (0
CONTROLLER No.
*9 *8
*8 Controller Number switch (CONTROLLER No.)
Selects a number for the system controller for identifica-
tion in a system. Normally, set the switch to number 1.
*9 Mode Selection switches (MODE)
The operation mode of the system controller is selected
with these switches.
When you use a terminal-mode system controller, set
the switches to the positions shown in the figure.
Note: When you use a PS·Data system controller, refer
to the system controller's operating instructions.

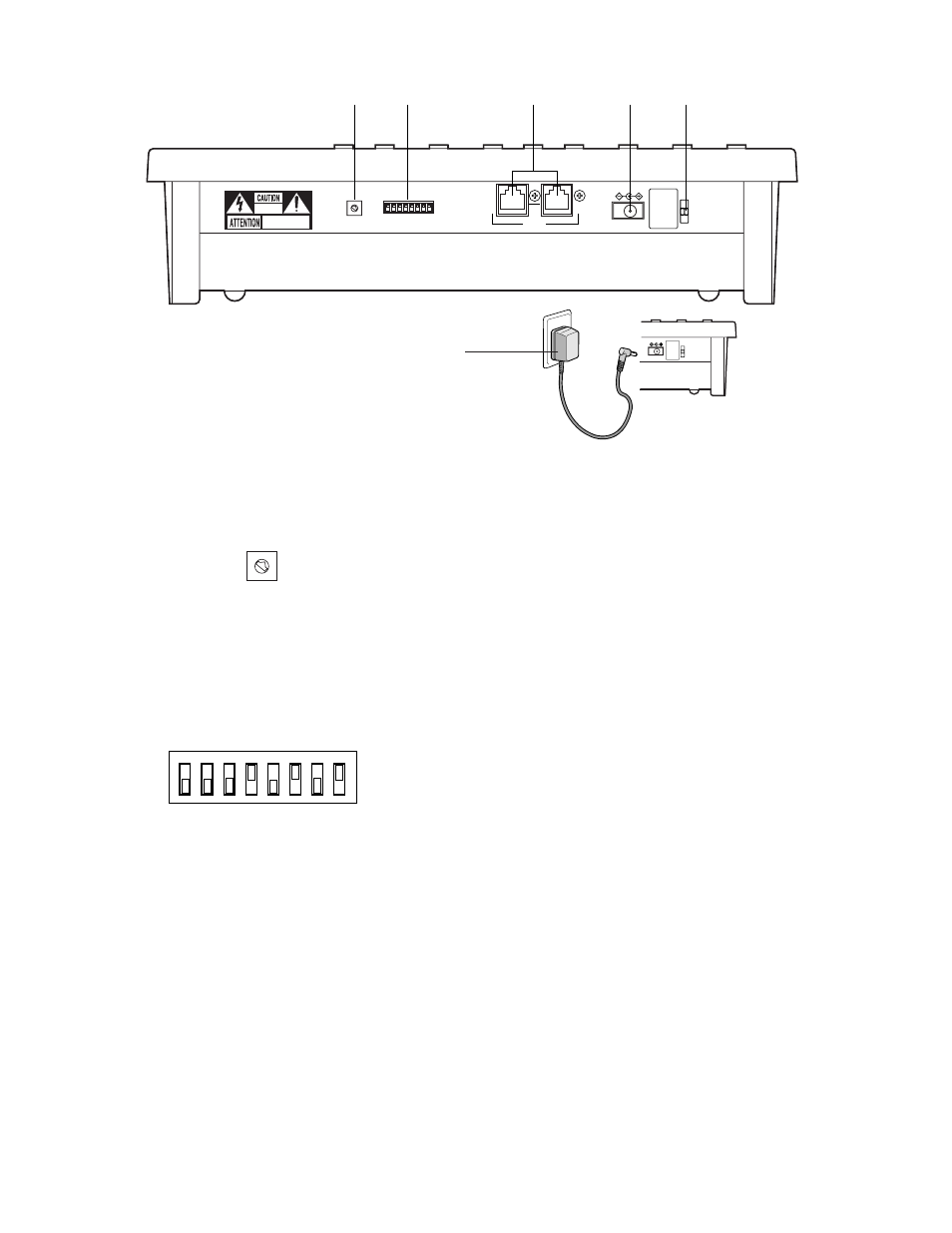

● Rear View
DC 9V IN
(3
0 9
8
7
6 5 4
3
2
1
CONTROLLER No.
#1
MODE
1 2 3 4 5 6 7 8
OFF
ON
4(0 Data ports (DATA)
Exchange the control data with the matrix switcher via
RS-485 cable (supplied with the system controller).
(1 DC 9V Input jack (DC 9V IN)
Use this jack to plug the AC adapter supplied with the
system controller.
(2 Clamp
Fastens the supplied AC adapter's power cord.
(3 AC adapter
Caution:
Use only the supplied AC adapter to feed 9 V
DC to the system controller.
Note: Disconnect the plug from the controller before
setting the controller number switch or mode selec-
tion switch, and reconnect it when finished. The
new settings will take effect when the power is
turned on.
