Page 23: Front view, Mode sw setup
24
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
■
WJ-SX150 Matrix Switcher
●

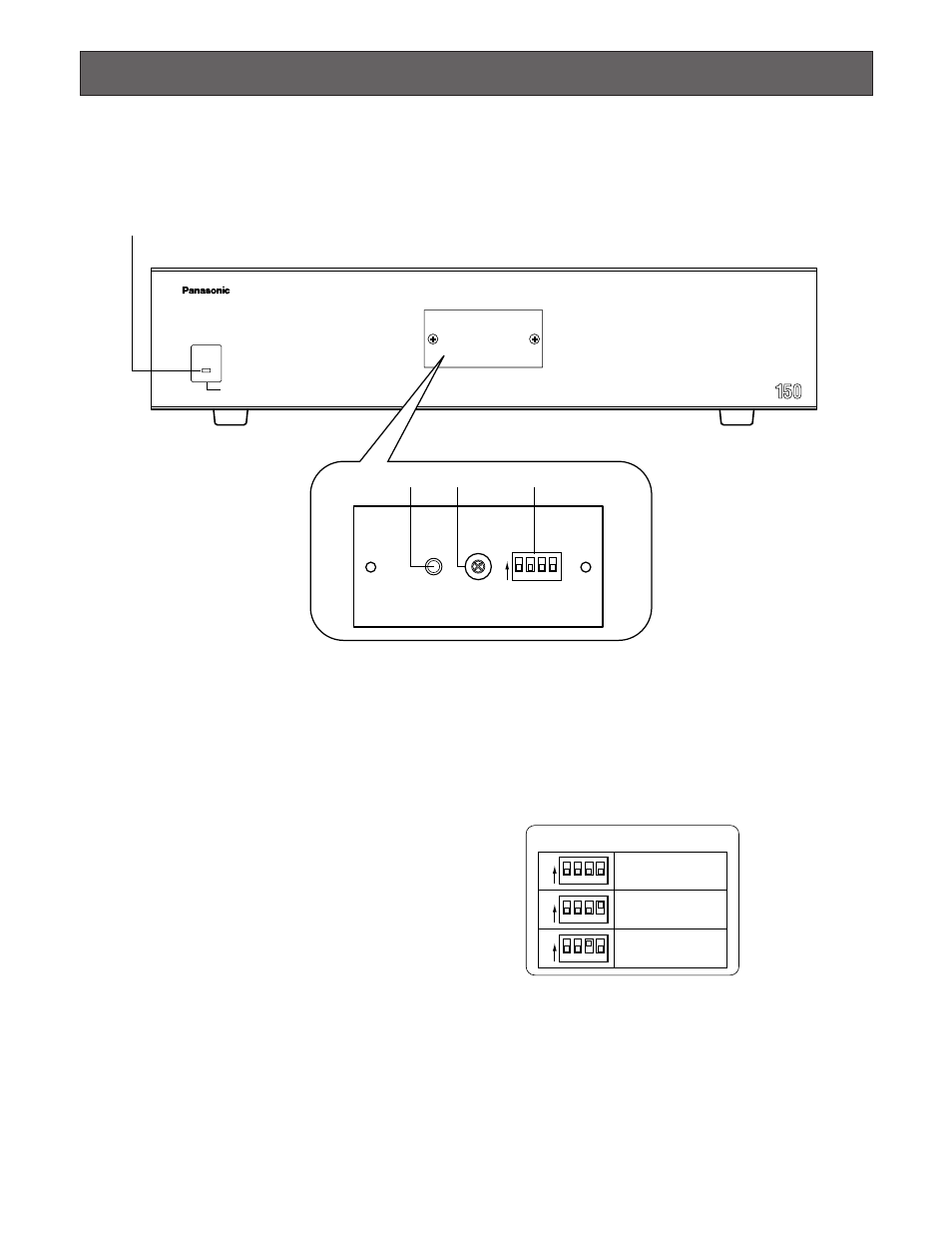

Front View
q
Operation indicator (OPERATE)
Lights up when the power of the unit is turned on.
Note:
The indicator will blink to indicate rising tempera-
ture in the matrix switcher.
When the indicator blinks, turn the power off and
refer servicing to qualified service personnel.
w
Reset button (RESET)
Resets and restarts the unit.
Note:
The system configuration is not reset.
e
Unit number selector (UNIT)
This selector is reserved for future use.
Normally, set this switch to "1".
r
Mode selector (MODE)
Selects the unit's operation mode.
Normally, set all switches to OFF (NORMAL mode) as
shown in the figure.
SX150 SOFTWARE UPLOAD:
Set the switches to this position when you update
the firmware of the unit. (Refer to the operating
instructions of the multiplexer board.)
MULTIPLEXER SOFTWARE UPLOAD:
This mode is reserved for future use.
Matrix Switcher WJ-SX
OPERATE
OPERATE LED WILL BLINK
IF COOLING FAN MALFUNCTIONS
q
0
9
8
7
6
5
4
3
2
1
MODE
UNIT
RESET
w
e
r
1
ON
2 3 4
1
ON
2 3 4
1
ON
2 3 4
1
ON
2 3 4
NORMAL
SX150
SOFTWARE UPLOAD
MULTIPLEXER
SOFTWARE UPLOAD
MODE SW SETUP
