PLANET VIP-110/VIP-210 Web Configuration Guide
- 4 -

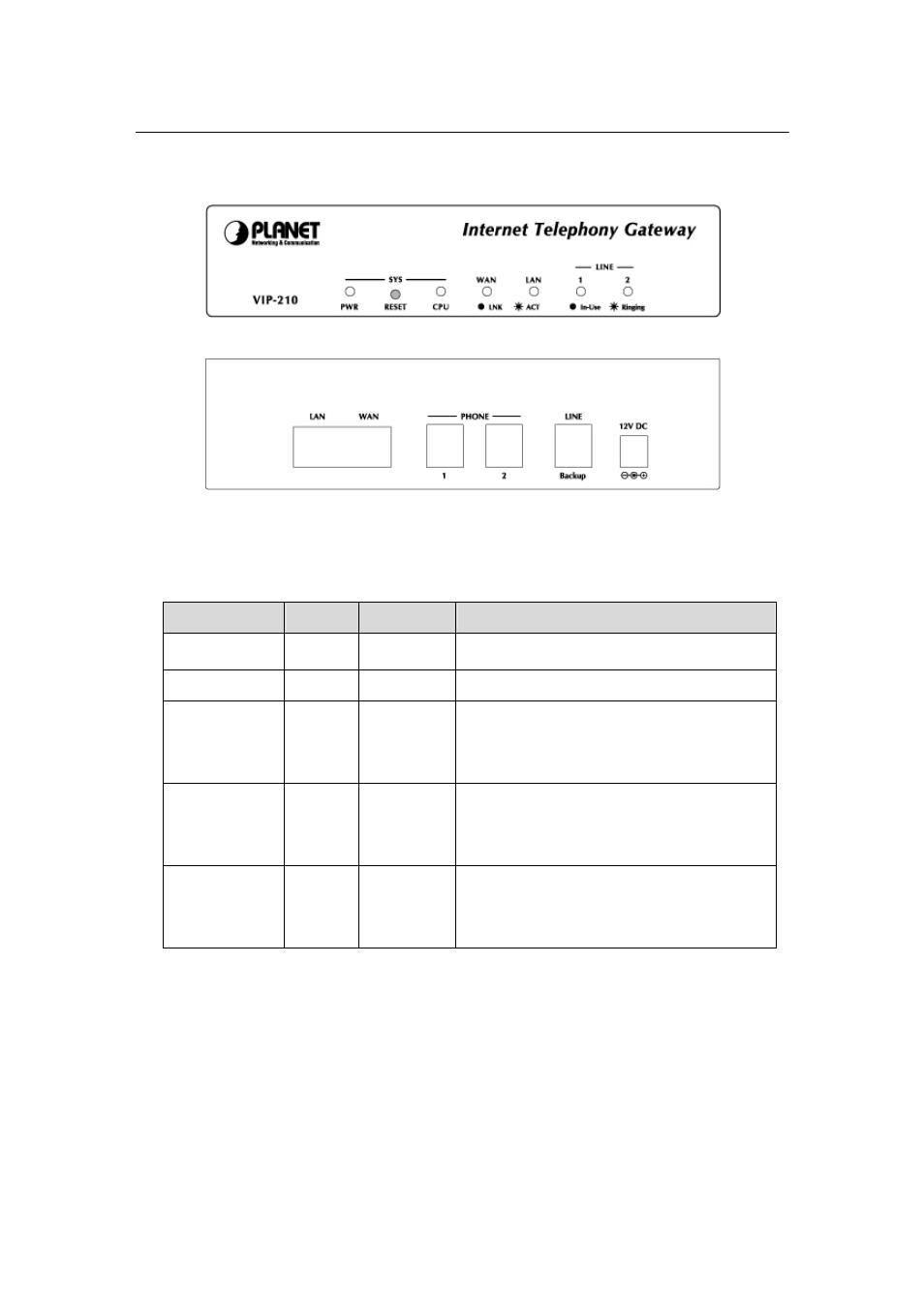

VIP-210 Front Panel
VIP-210 Rear Panel
LED Display & Button
Indicator Color Activity Indication
PWR Green On Power is supplied to the gateway.
CPU Green Blinking The system is running. (Heartbeat LED)
LAN
Ÿ ACT
Ÿ LNK
Green
Green
On
On
Data is presented on LAN.
The gateway is connected to LAN.
WAN
Ÿ ACT
Ÿ LNK
Green
Green
On
On
Data is presented on WAN.
The gateway is connected to WAN.
PHONE/LINE
Voice Channels
Green Off
On
Blinking
The line is idle.
The line is being used.
The line is ringing.
Physical Interfaces
VIP-110/VIP-210 is equipped with a WAN interface with 10/100 Mbps auto-negotiation capability, 4
LAN Ethernet ports with 10/100 Mbps auto-negotiation, auto-MDI/MDI-X capability. In addition to
the LAN/WAN Ethernet interface ports, there is a 9-pin RS-232 interface port, four RJ-11 telephony
interface ports on the rear panel. Their functions are described below:
